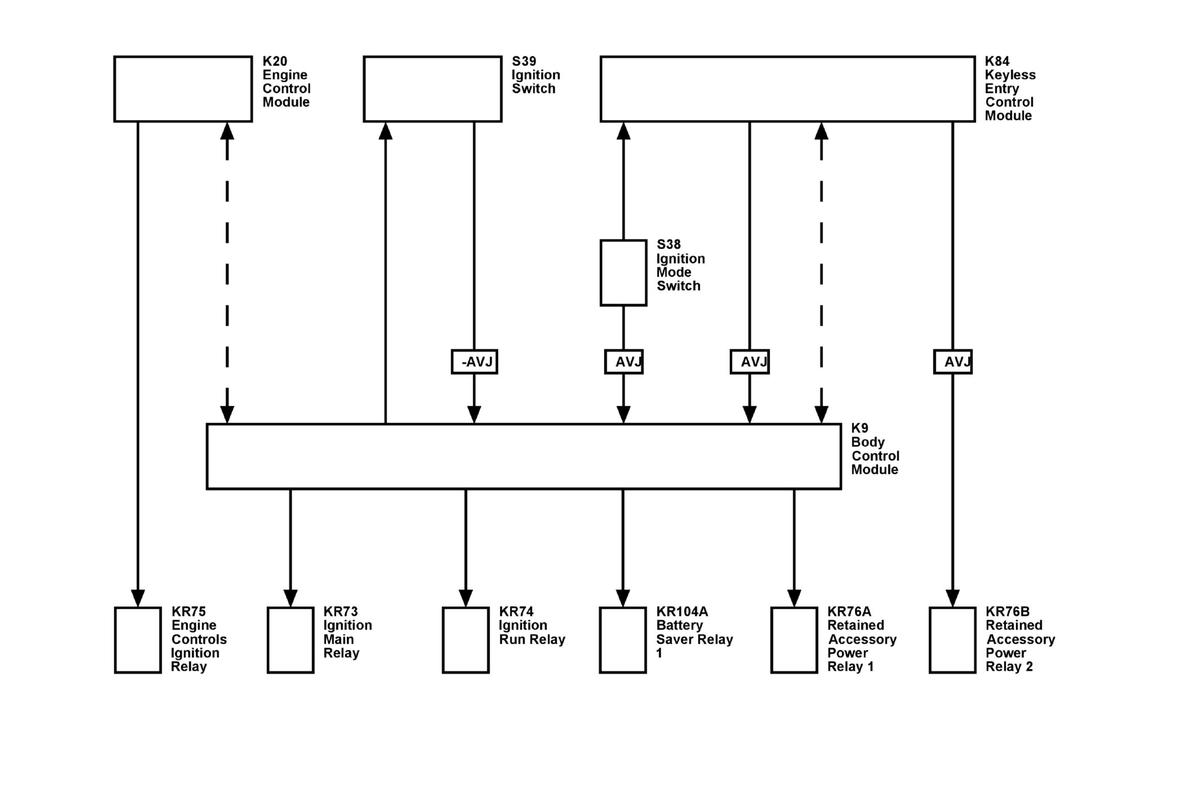

Power Moding Block Diagram
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| KR75 | KR75 Engine Controls Ignition Relay |
| KR73 | KR73 Ignition Main Relay |
| KR74 | KR74 Ignition Run Relay |
| KR104A | KR104A Battery Saver Relay 1 |
| KR76A | KR76A Retained Accessory Power Relay 1 |
| KR76B | KR76B Retained Accessory Power Relay 2 |
| K9 | K9 Body Control Module |
| S38 | S38 Ignition Mode Switch |
| K84 | K84 Keyless Entry Control Module |
| S39 | S39 Ignition Switch |
| K20 | K20 Engine Control Module |
