Roof Accessory Radio Antenna Cable Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

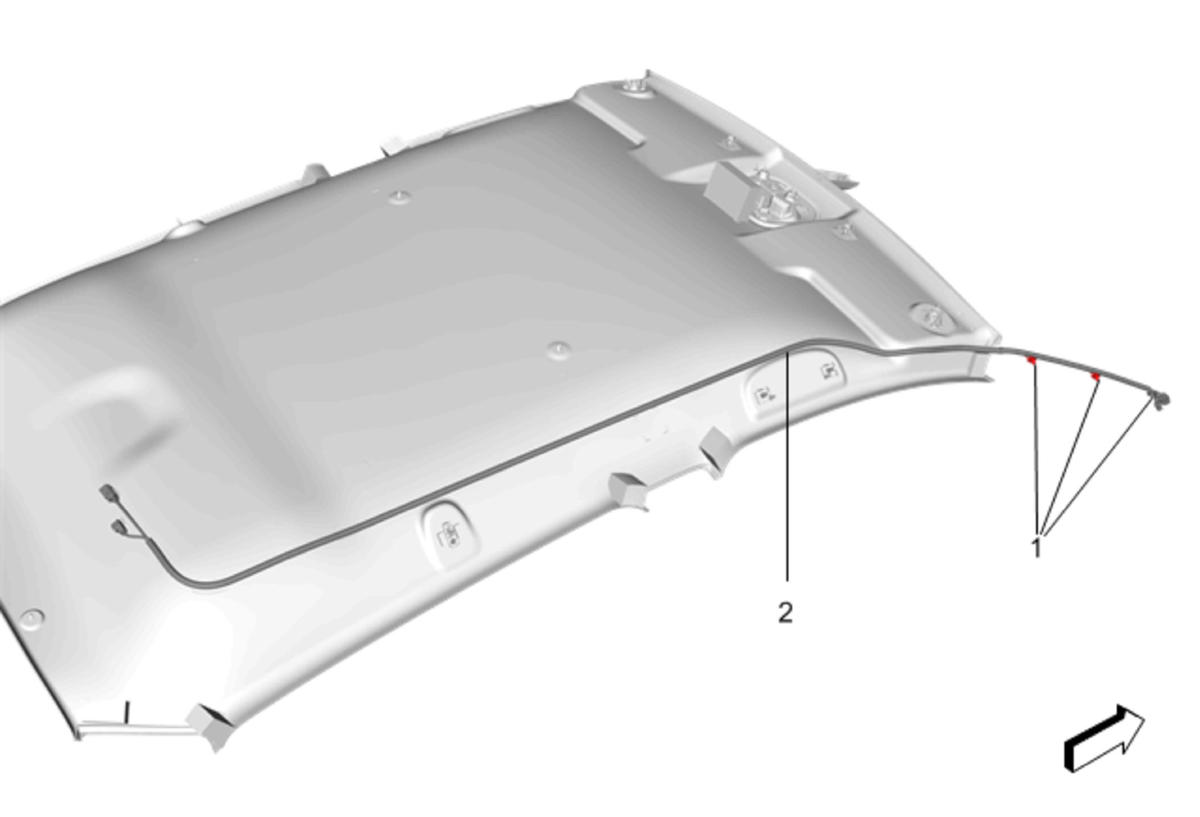

Fig 1: Roof Accessory Radio Antenna Cable

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Battery Disconnect Warning . Preliminary Procedures Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Remove headlining trim panel. Refer to Headlining Trim Panel Replacement .
1	Roof Accessory Radio Antenna Cable Retaining Clip (Qty: 3)
2	Roof Accessory Radio Antenna Cable Procedure Disconnect the electrical connectors.

Callout

Component Name

WARNING:

Refer to Battery Disconnect Warning .

Preliminary Procedures

Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove headlining trim panel. Refer to Headlining Trim Panel Replacement .

Roof Accessory Radio Antenna Cable Retaining Clip (Qty: 3)

Roof Accessory Radio Antenna Cable
Procedure
Disconnect the electrical connectors.
