Starter Replacement (LV7)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

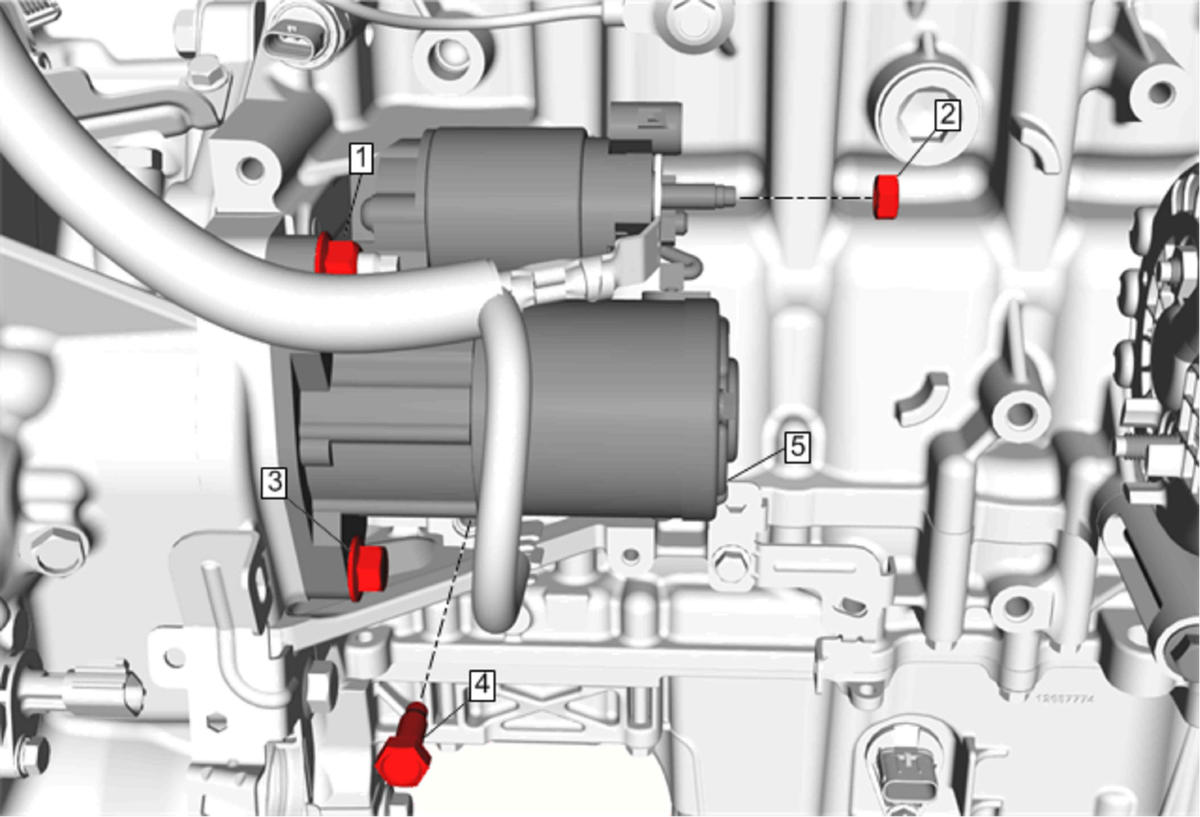

Fig 1: Starter (LV7)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the exhaust muffler. Refer to Exhaust Muffler Replacement (LV7) . Disconnect the connector. Remove the generator B (+) Nut.
1	Starter Retaining Nut CAUTION: Refer to Fastener Caution . Procedure Remove the starter retaining nut. Tighten 58 N.m (43 lb ft)
2	Starter Solenoid B (+) Nut Procedure Remove the starter solenoid B (+) nut. Tighten 17 N.m (13 lb ft)
3	Starter Retaining Bolt Procedure Remove the starter retaining bolt. Tighten 58 N.m (43 lb ft)
4	Starter Procedure Transfer parts as necessary.
