Multifunction Power Supply Converter Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

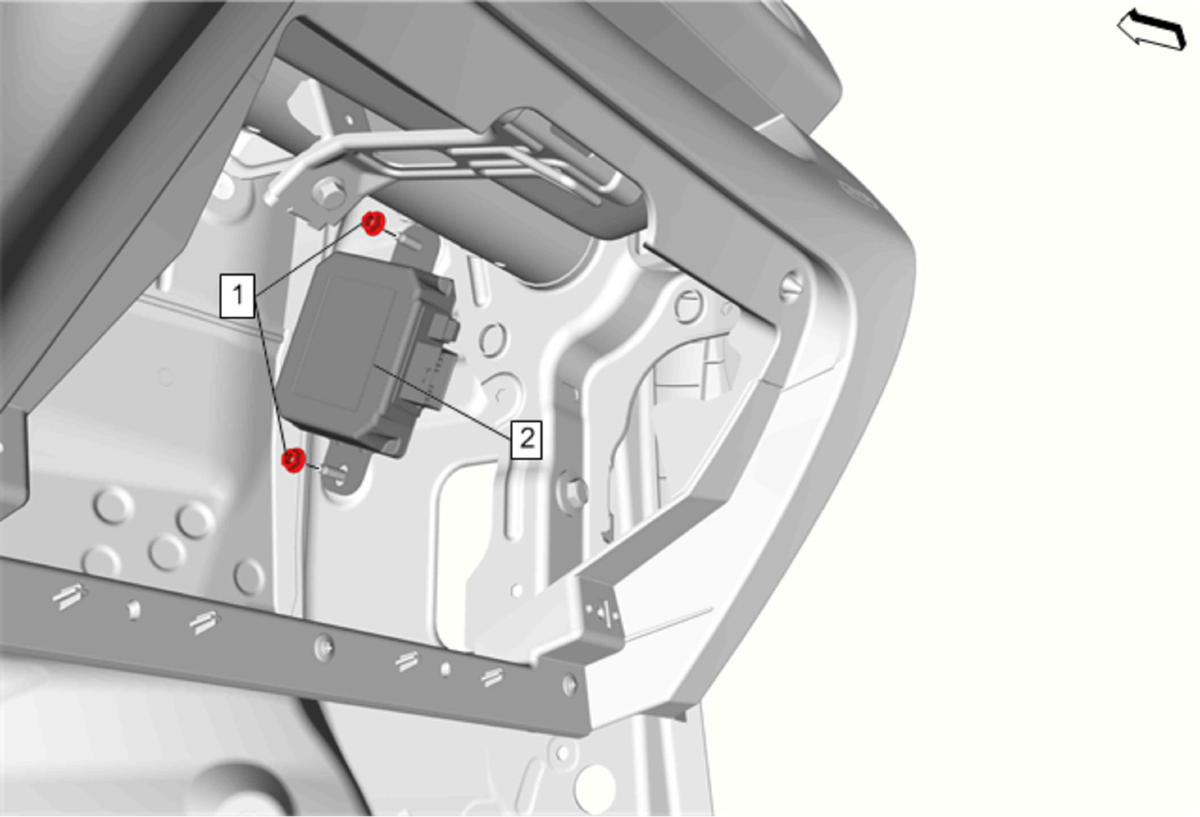

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement . |
|
| 1 | Multifunction Power Supply Converter Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution
. Tighten 2.5 N.m (22 lb in) |
| 2 | Multifunction Power Supply Converter Procedure Disconnect the electrical connector. |
