Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn on the radio and record all of the customer radio station presets.
  2. Ensure that all lamps and accessories are turned off.
  3. Turn the ignition OFF and remove the ignition key.
  4. Loosen the battery negative cable nut (1).

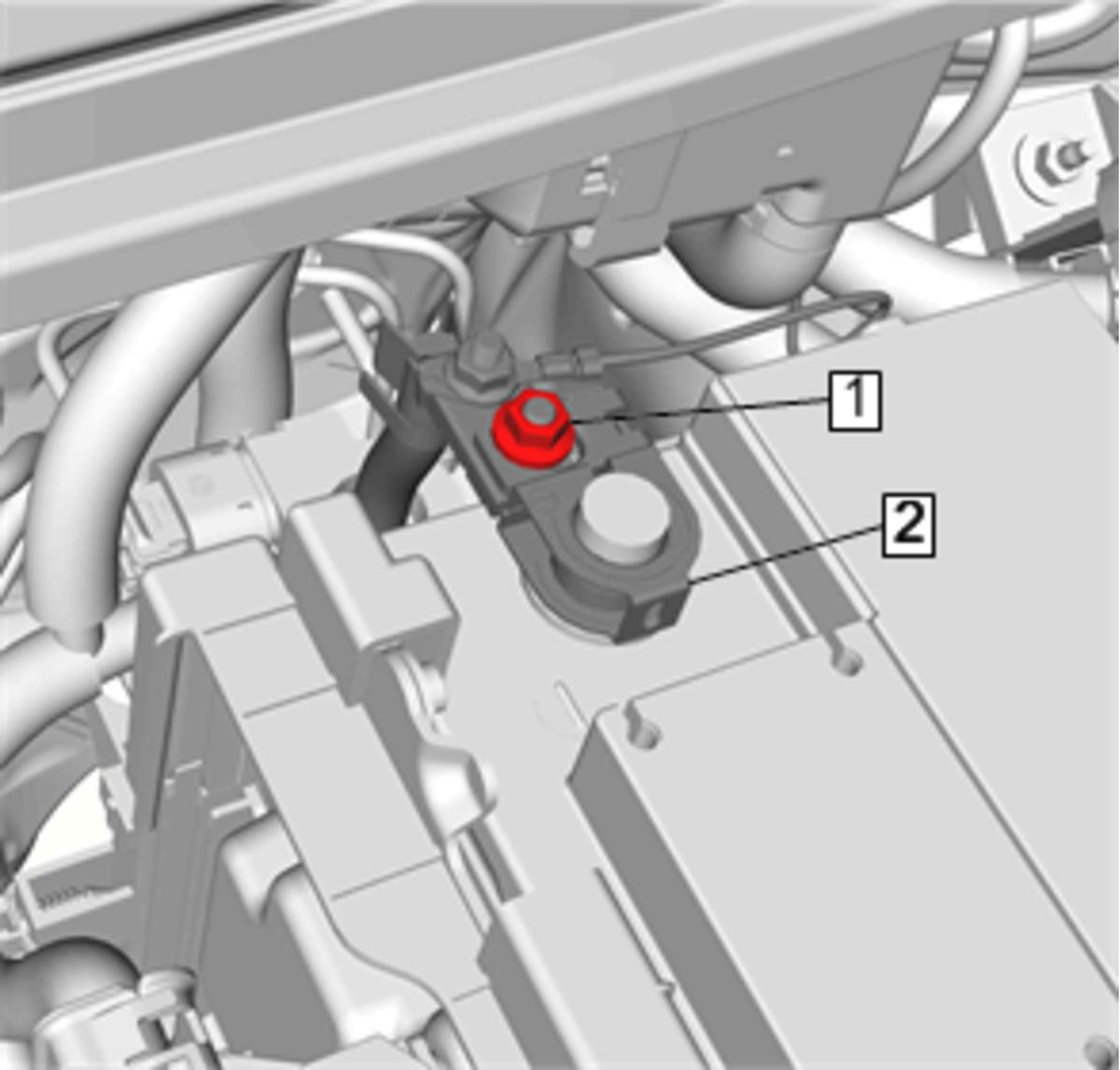

    Fig 1: Battery Negative Cable Nut
    GM4009334Courtesy of GENERAL MOTORS COMPANY
    WARNING: Refer to Battery Disconnect Warning .
  5. Remove the battery negative cable (2) from the battery.
