Transmission Components (MR8)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

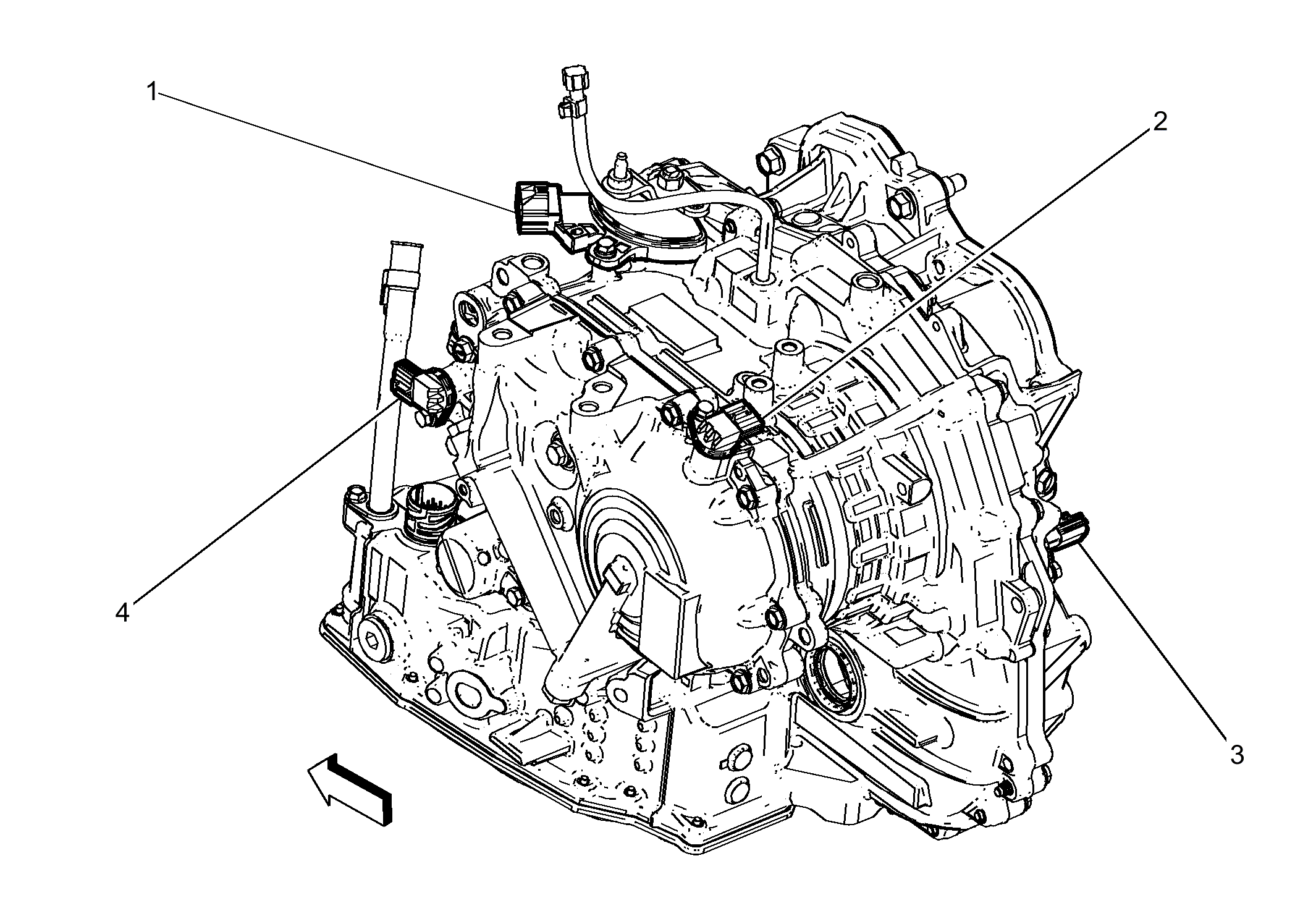

Fig 1: Transmission Components (MR8)
GM4167441Courtesy of GENERAL MOTORS COMPANY
Items
B15 Transmission Internal Mode Switch (MR8) B81 Park/Neutral Position Switch
B296B Transmission Pulley Speed Sensor - Secondary (MR8)
B14A Transmission Output Shaft Speed Sensor (MR8) B14A Transmission Output Shaft Speed Sensor LV7+MR8
B296A Transmission Pulley Speed Sensor - Primary (MR8)
