Right Front of the Passenger Compartment Components (RHD)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

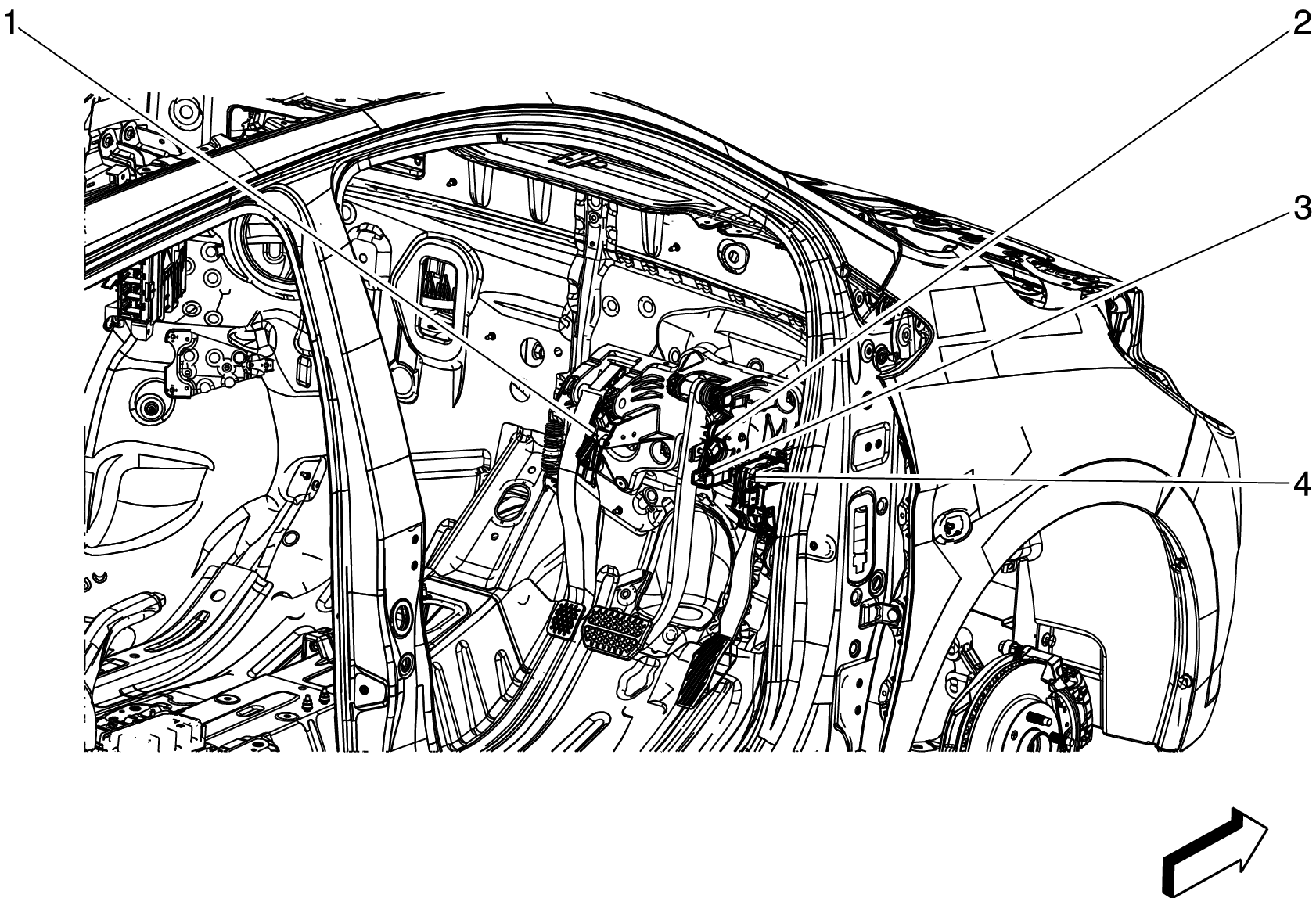

Fig 1: Right Front of the Passenger Compartment Components (RHD)
GM4040271Courtesy of GENERAL MOTORS COMPANY
Items
B25B Clutch Pedal Position Sensor (MR7) B25B Clutch Pedal Position Sensor MR7/MFX
B22 Brake Pedal Position Sensor (MFQ or MR7) B22 Brake Pedal Position Sensor MR7/MFXB22 Brake Pedal Position Sensor MR8/MFQ
B103 Stop Lamp Switch B103 Stop Lamp Switch
B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor
