Passenger Seat Components (RHD)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

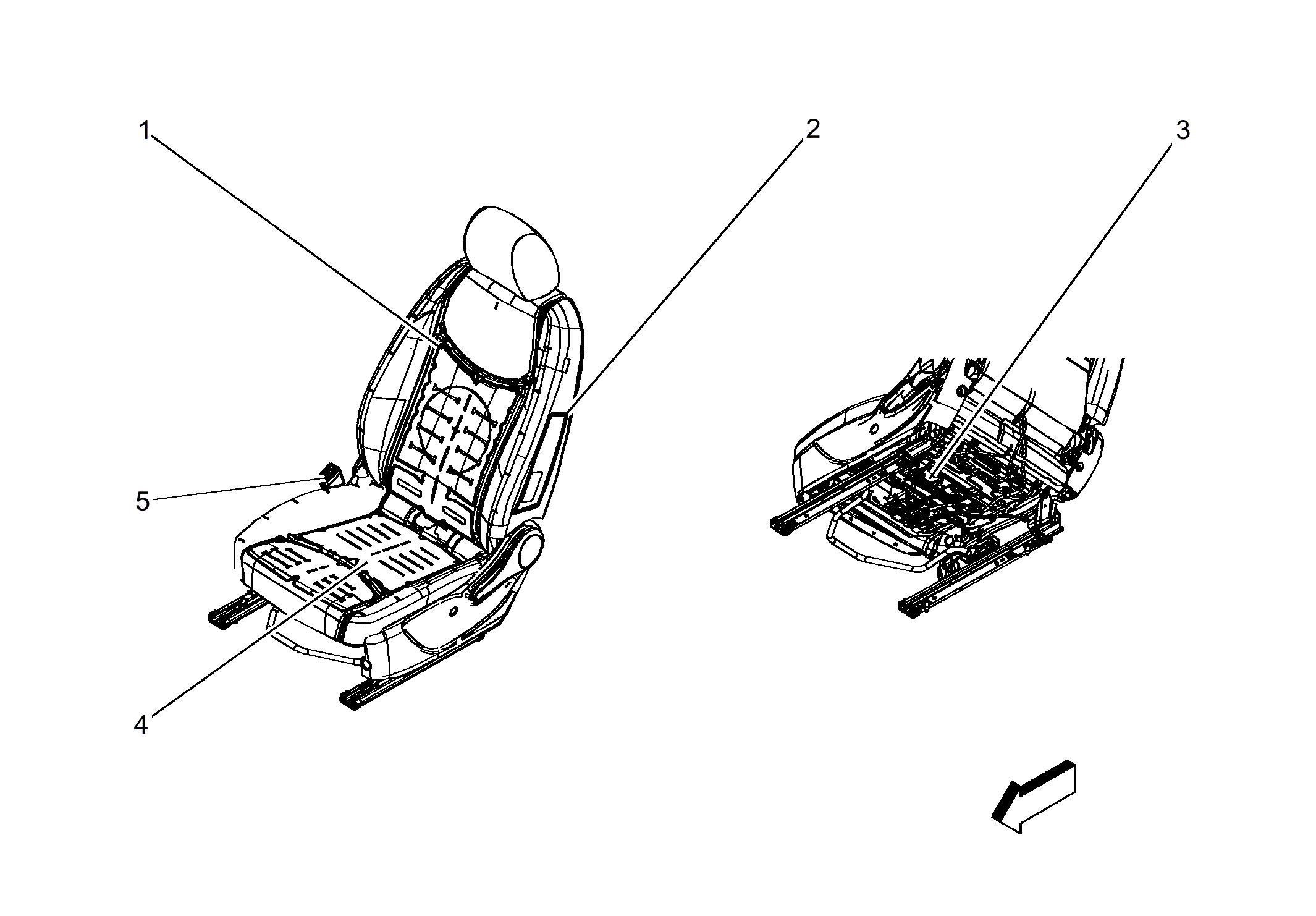

Fig 1: Passenger Seat Components (RHD)
GM4040510Courtesy of GENERAL MOTORS COMPANY
Items
E14C Seat Heating Element - Passenger Back (KA1)
F106P Seat Side Air Bag - Passenger F106P Seat Side Air Bag - Passenger
B60 Passenger Presence Sensor (UHH without AL0) B60 Passenger Presence Sensor AL0B60 Passenger Presence Sensor UHH-AL0
E14D Seat Heating Element - Passenger Cushion (KA1) E14D Seat Heating Element - Passenger Cushion
B88P Seat Belt Switch - Passenger
