Passenger Compartment Components

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

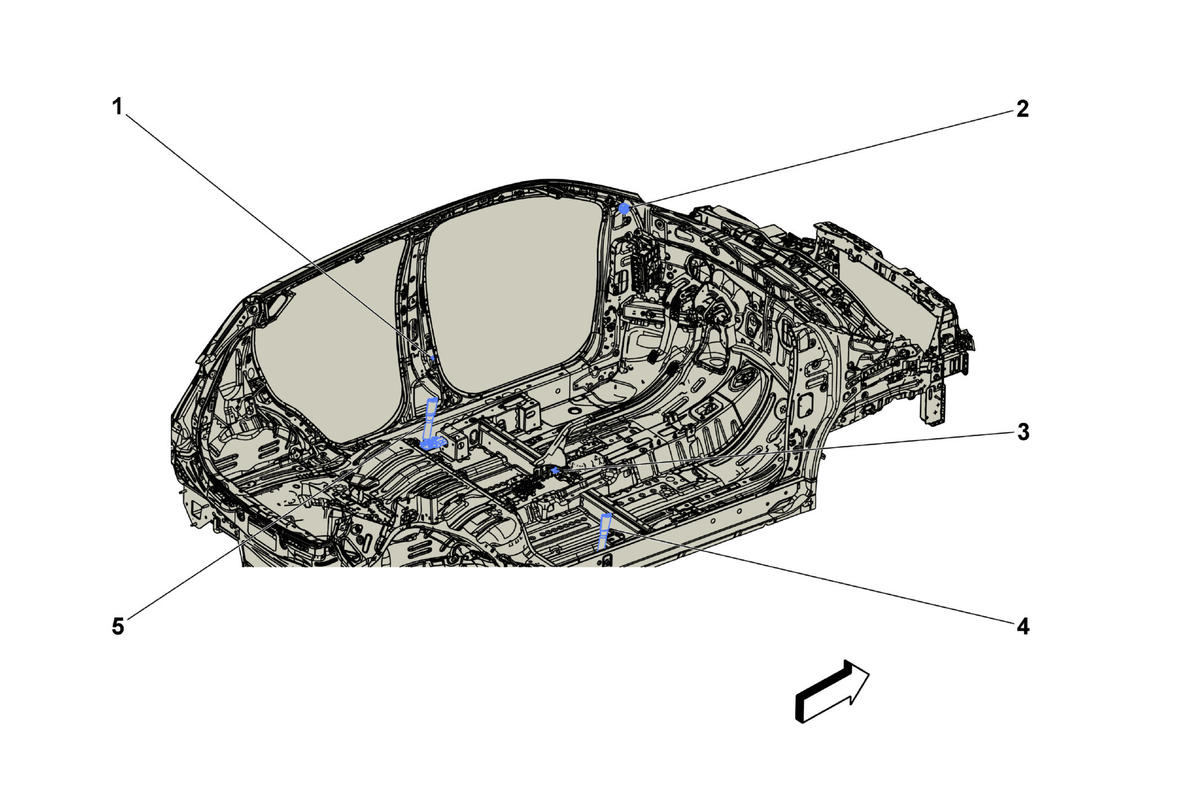

Fig 1: Passenger Compartment Components
GM4040508Courtesy of GENERAL MOTORS COMPANY
Items
B28D Door Ajar Switch - Driver B28D Door Ajar Switch - Driver
P19H Speaker - Left Front Tweeter P19H Speaker - Left Front Tweeter
B80 Park Brake Switch B80 Park Brake Switch
F113P Seat Belt Anchor Pretensioner - Passenger F113P Seat Belt Anchor Pretensioner - Passenger
F113D Seat Belt Anchor Pretensioner - Driver F113D Seat Belt Anchor Pretensioner - Driver
