Left Side of the Passenger Compartment Components (RHD)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

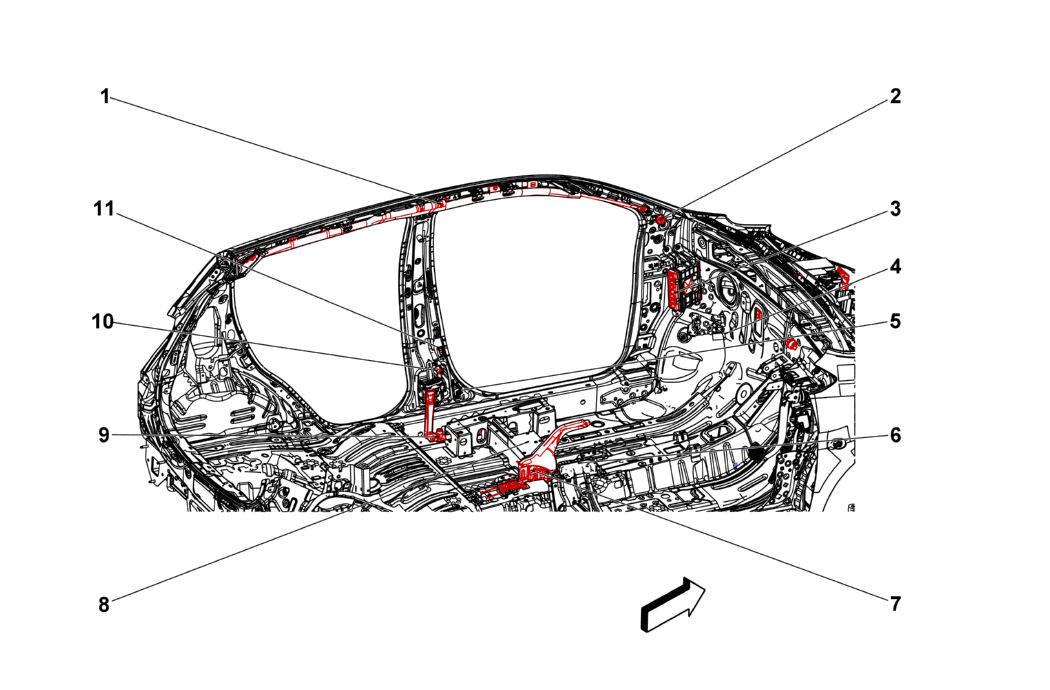

Fig 1: Left Side of the Passenger Compartment Components (RHD)

Courtesy of GENERAL MOTORS COMPANY

Items
F105L Roof Rail Air Bag - Left F105L Roof Rail Air Bag - Left
P19H Speaker - Left Front Tweeter P19H Speaker - Left Front Tweeter
K9 Body Control Module K9 Body Control Module X1 K9 Body Control Module X2 K9 Body Control Module X3 K9 Body Control Module X4 K9 Body Control Module X5 K9 Body Control Module X6 K9 Body Control Module X7
K71 Transmission Control Module (MR8) K71 Transmission Control Module X1MR8 K71 Transmission Control Module X2 X2
B63LF Side Impact Sensor - Left Front (AYC, AYF) B63LF Side Impact Sensor - Left Front AYC/AYF B63LF Side Impact Sensor - Left Front AYF
K36 Inflatable Restraint Sensing and Diagnostic Module (LHD) K36 Inflatable Restraint Sensing and Diagnostic Module X1 K36 Inflatable Restraint Sensing and Diagnostic Module X2
B80 Park Brake Switch B80 Park Brake Switch
K73 Telematics Communication Interface Control Module (UE1) K73 Telematics Communication Interface Control Module X1 UE1 K73 Telematics Communication Interface Control Module X2
F113P Seat Belt Anchor Pretensioner - Passenger F113P Seat Belt Anchor Pretensioner - Passenger
F112P Seat Belt Retractor Pretensioner - Passenger (AWV or AYC) F112P Seat Belt Retractor Pretensioner - Passenger
B28P Door Ajar Switch - Passenger B28P Door Ajar Switch - Passenger
