Left Side of the Passenger Compartment Components (LHD)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

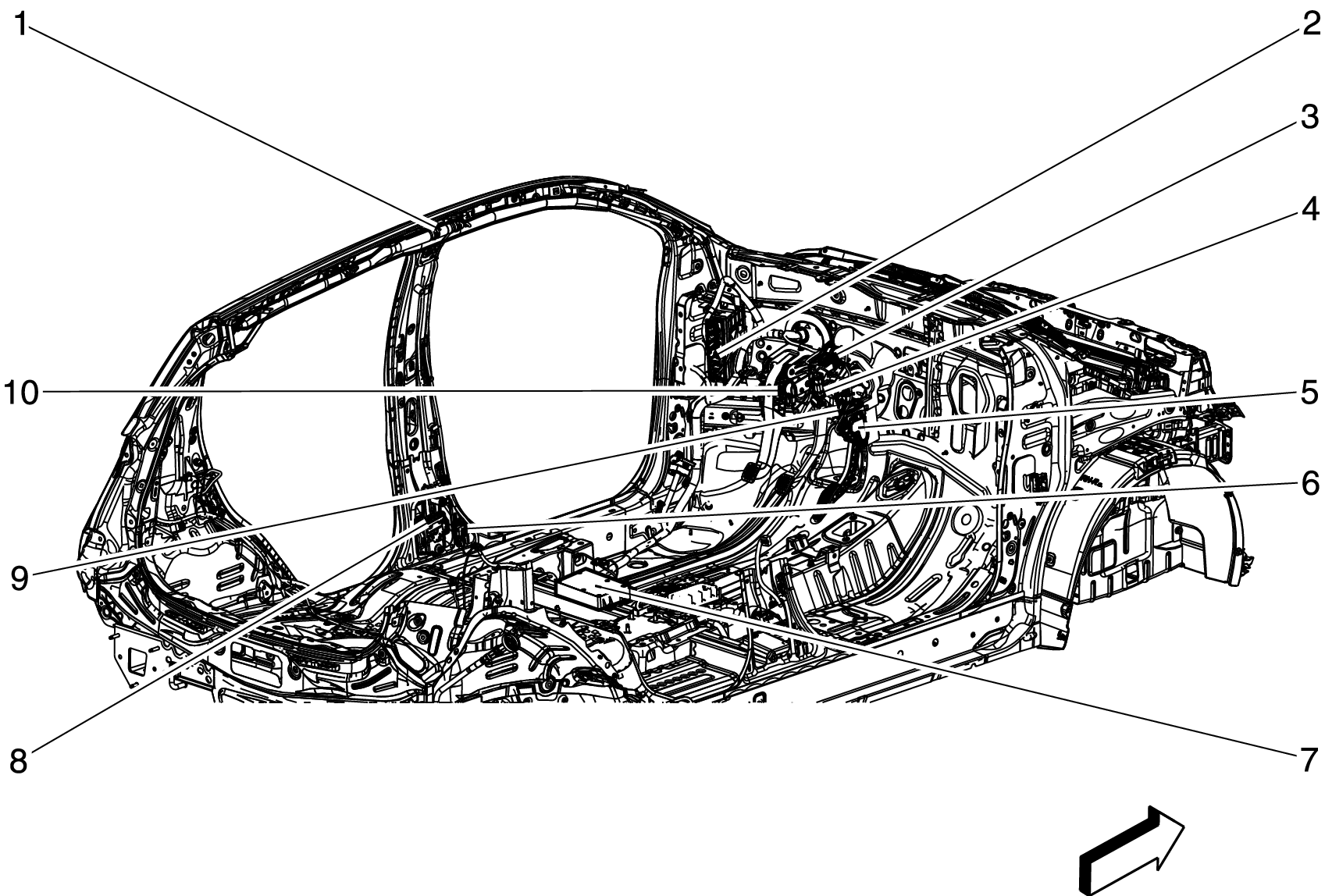

Fig 1: Left Side of the Passenger Compartment Components (LHD)

Courtesy of GENERAL MOTORS COMPANY

Items
F105L Roof Rail Air Bag - Left F105L Roof Rail Air Bag - Left
K9 Body Control Module K9 Body Control Module X1 K9 Body Control Module X2 K9 Body Control Module X3 K9 Body Control Module X4 K9 Body Control Module X5 K9 Body Control Module X6 K9 Body Control Module X7
B22 Brake Pedal Position Sensor (MR7) B22 Brake Pedal Position Sensor MR7/MFX B22 Brake Pedal Position Sensor MR8/MFQ
B103 Stop Lamp Switch B103 Stop Lamp Switch
B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor
B63LF Side Impact Sensor - Left Front (AYC, AYF) B63LF Side Impact Sensor - Left Front AYC/AYF B63LF Side Impact Sensor - Left Front AYF
K73 Telematics Communication Interface Control Module (UE1) K73 Telematics Communication Interface Control Module X1 UE1 K73 Telematics Communication Interface Control Module X2
F112D Seat Belt Retractor Pretensioner - Driver (AWV or AYC) F112D Seat Belt Retractor Pretensioner - Driver
K71 Transmission Control Module (MR8) K71 Transmission Control Module X1 MR8 K71 Transmission Control Module X2
B25B Clutch Pedal Position Sensor (MR7) B25B Clutch Pedal Position Sensor MR7/MFX
