Headliner Components

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

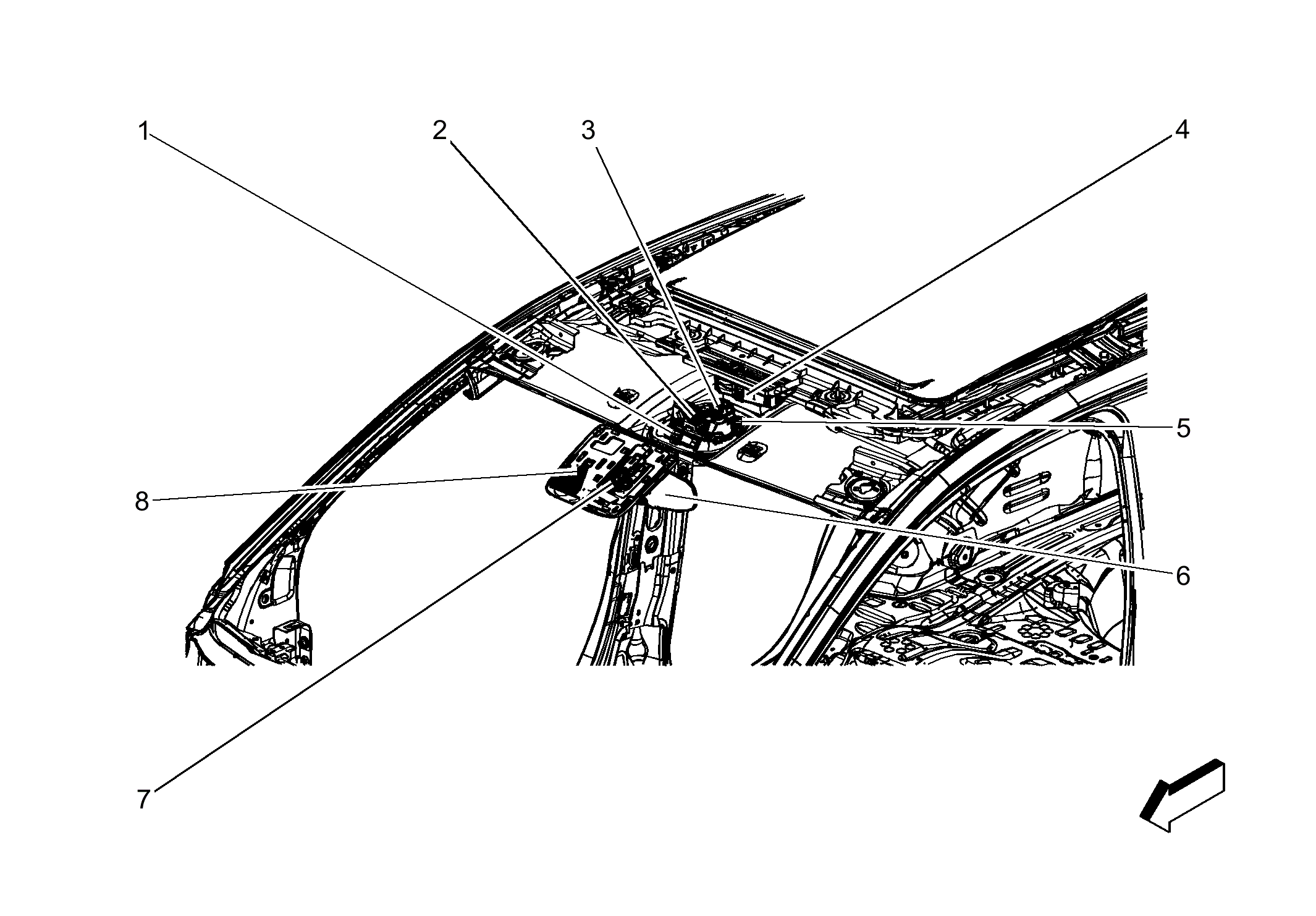

Fig 1: Headliner Components
GM4040504Courtesy of GENERAL MOTORS COMPANY
Items
P14 Passenger Air Bag Disabled Indicator (C99 or UHH) P14 Passenger Air Bag Disabled Indicator
E37F Dome/Reading Lamps - Front E37F Dome/Reading Lamps - Front
S72 Sunroof Switch (CF5) S72 Sunroof Switch CF5
K61 Sunroof Control Module (CF5) K61 Sunroof Control Module CF5
B24 Cellular Phone Microphone B24 Cellular Phone Microphone
A10 Inside Rearview Mirror (UE1) A10 Inside Rearview Mirror
B160 Windshield Temperature and Inside Moisture Sensor (C68) B160 Windshield Temperature and Inside Moisture Sensor
K109 Frontview Camera Module (UFL or UEU)
