Engine Components - Top View Ignition Coils (LV7)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

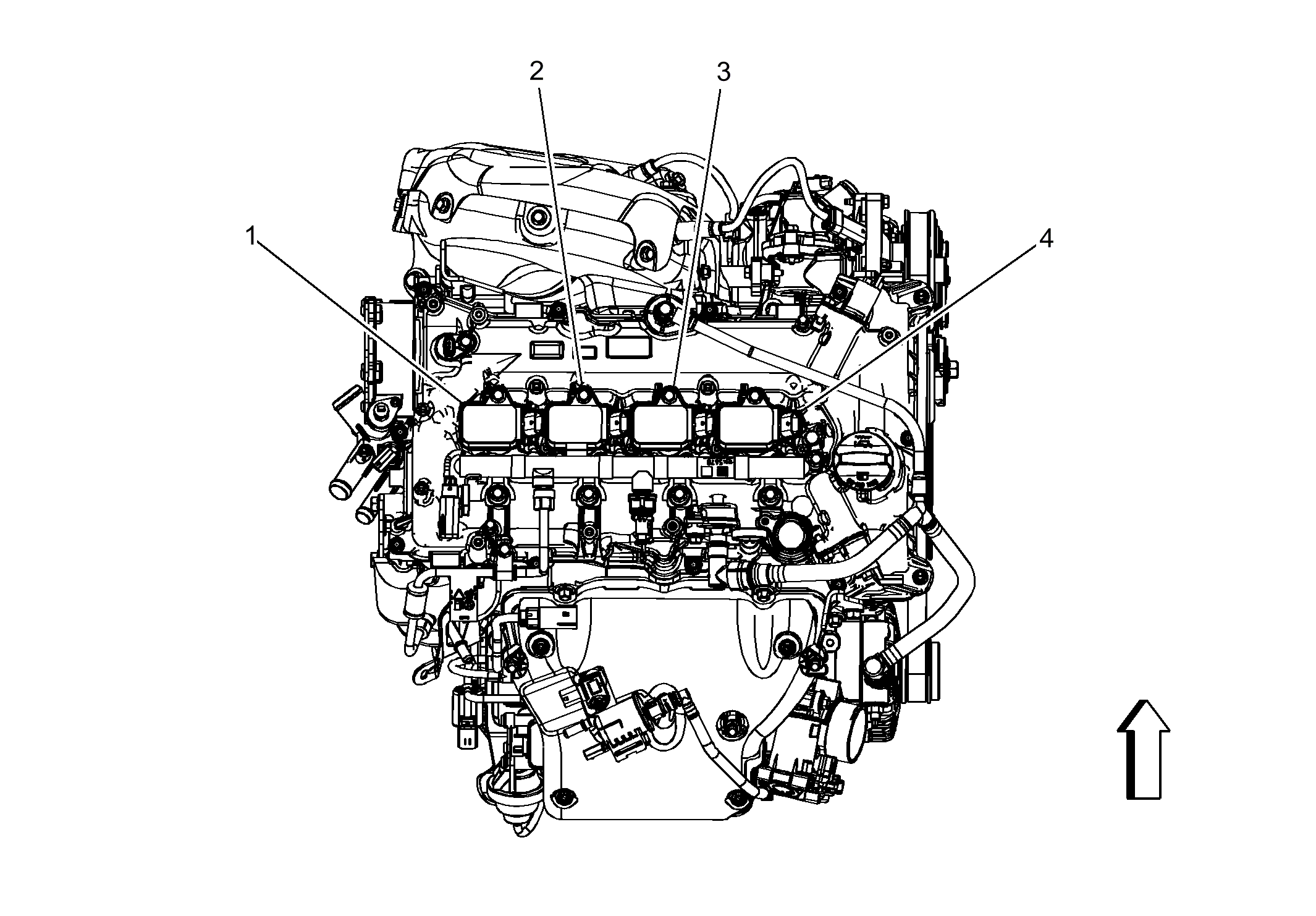

Fig 1: Engine Components - Top View Ignition Coils (LV7)
GM4165737Courtesy of GENERAL MOTORS COMPANY
Items
T8D Ignition Coil 4 (LV7) T8D Ignition Coil 4 LV7
T8C Ignition Coil 3 (LQ5 or LV7) T8C Ignition Coil 3 (L5Q/LV7)
T8B Ignition Coil 2 (LQ5 or LV7) T8B Ignition Coil 2 (L5Q/LV7)
T8A Ignition Coil 1 (LQ5 or LV7) T8A Ignition Coil 1 (L5Q/LV7)
