Engine Components - Left Front (LV7)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

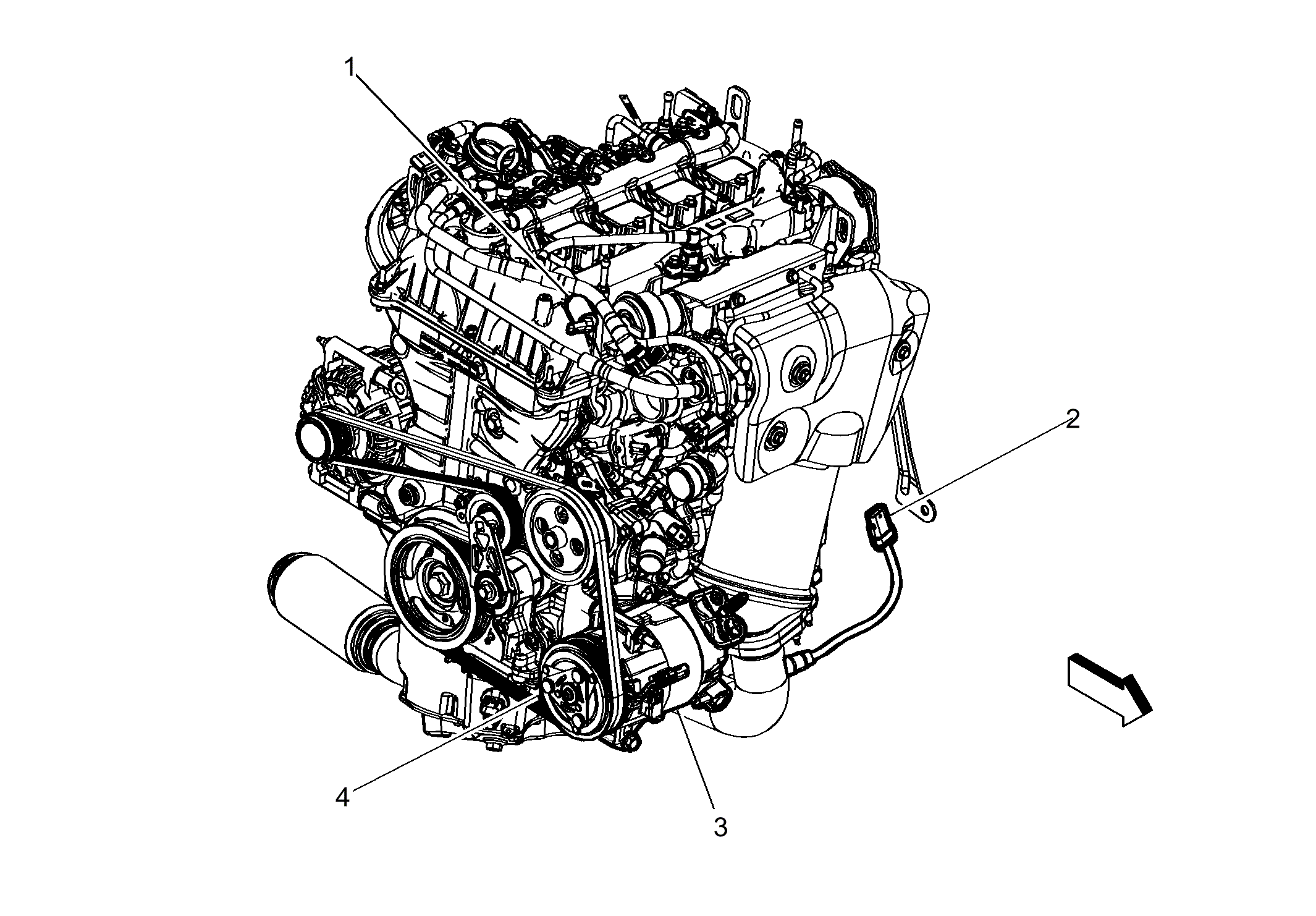

Fig 1: Engine Components - Left Front (LV7)
GM4171027Courtesy of GENERAL MOTORS COMPANY
Items
Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust
B52B Heated Oxygen Sensor 2 B52B Heated Oxygen Sensor 2
G1 A/C Compressor G1 A/C Compressor
Q2 A/C Compressor Clutch
