Driver Seat Components (RHD)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

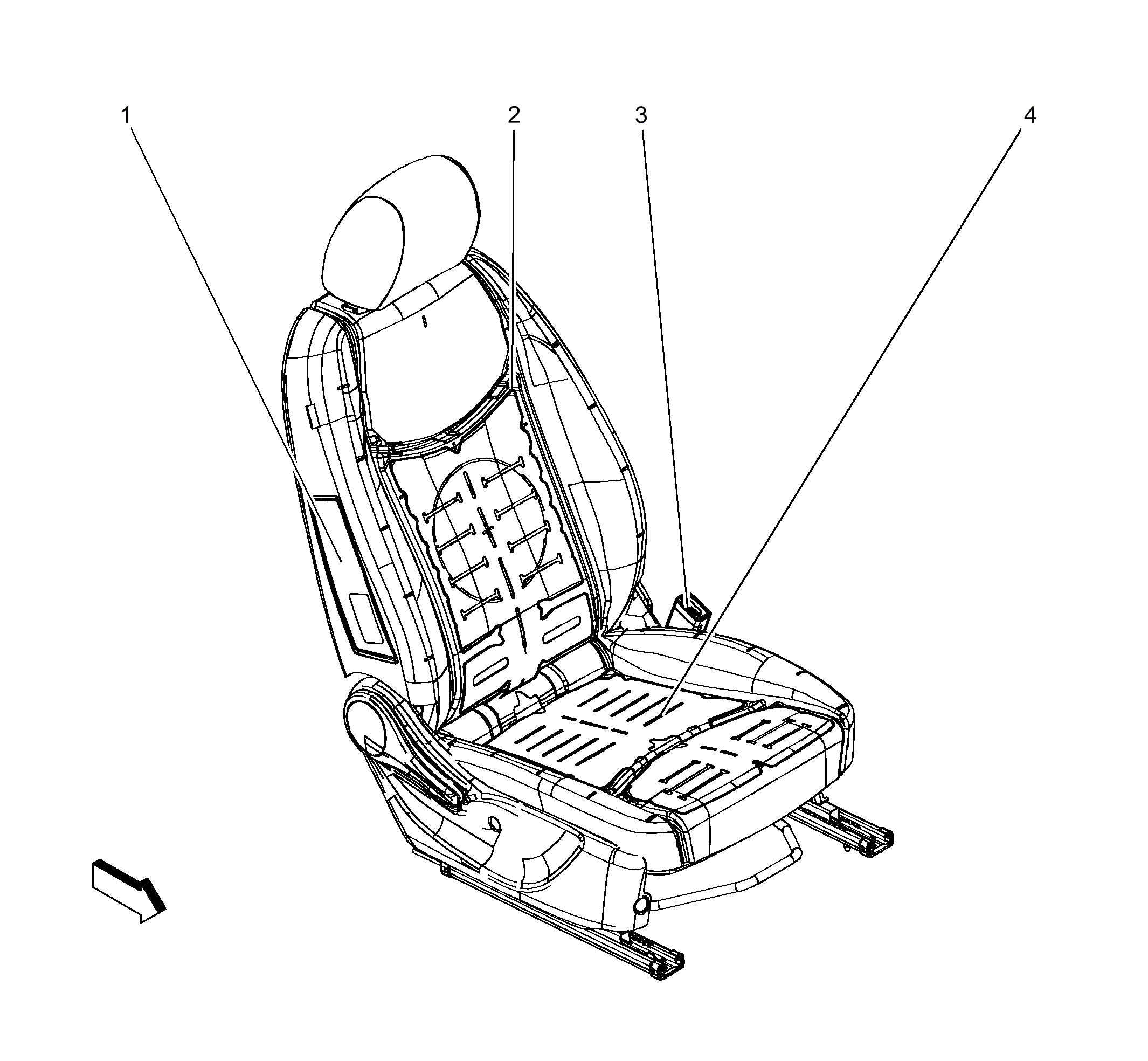

Fig 1: Driver Seat Components (RHD)
GM4040503Courtesy of GENERAL MOTORS COMPANY
Items
F106D Seat Side Air Bag - Driver F106D Seat Side Air Bag - Driver
E14A Seat Heating Element - Driver Back (KA1)
B88D Seat Belt Switch - Driver
E14B Seat Heating Element - Driver Cushion (KA1) E14B Seat Heating Element - Driver Cushion
