Driver Seat Components (LHD)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

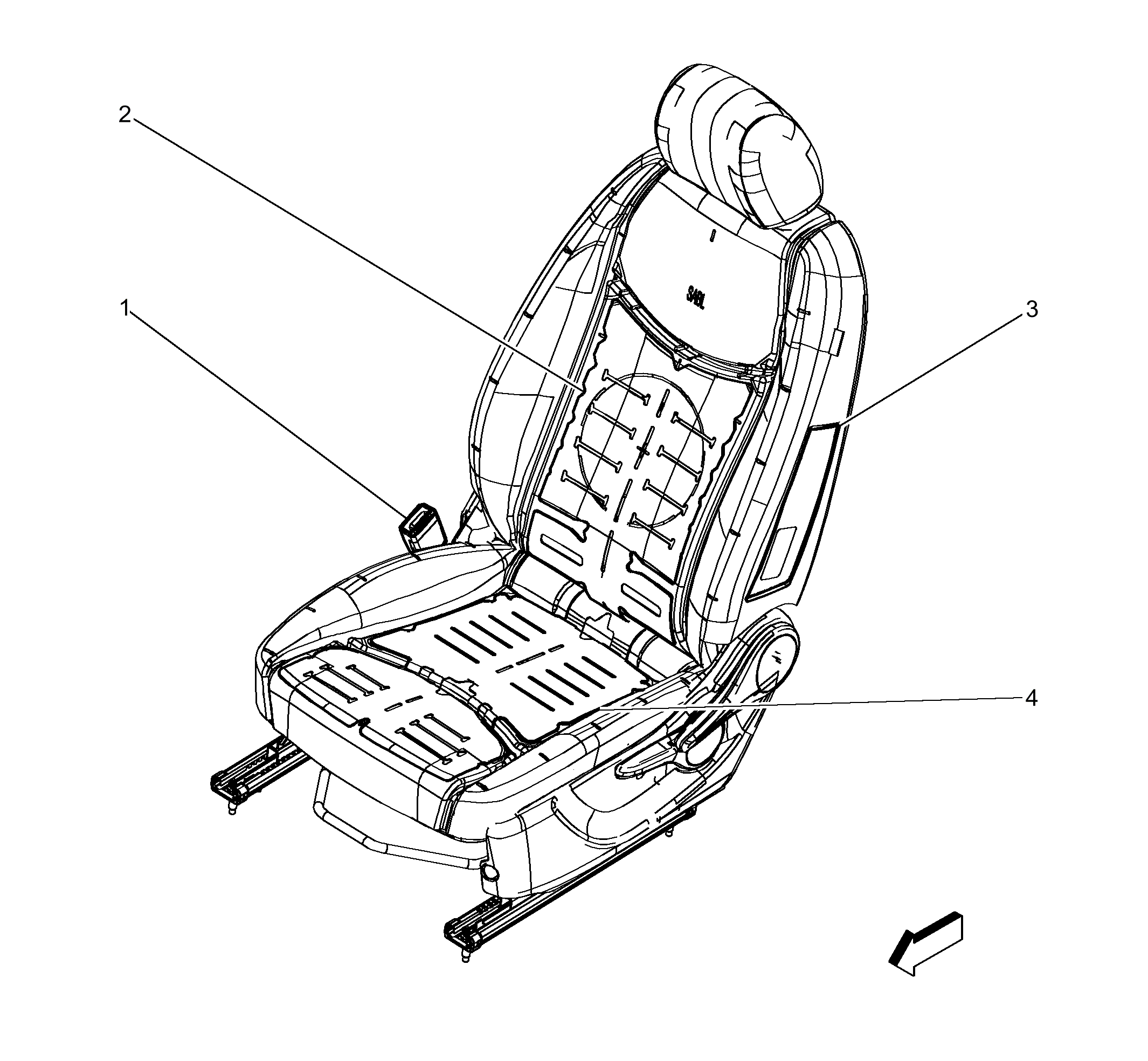

Fig 1: Driver Seat Components (LHD)
GM4040501Courtesy of GENERAL MOTORS COMPANY
Items
B88D Seat Belt Switch - Driver
E14A Seat Heating Element - Driver Back (KA1)
F106D Seat Side Air Bag - Driver F106D Seat Side Air Bag - Driver
E14B Seat Heating Element - Driver Cushion (KA1) E14B Seat Heating Element - Driver Cushion
