Rear Closure Center Applique Carrier Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

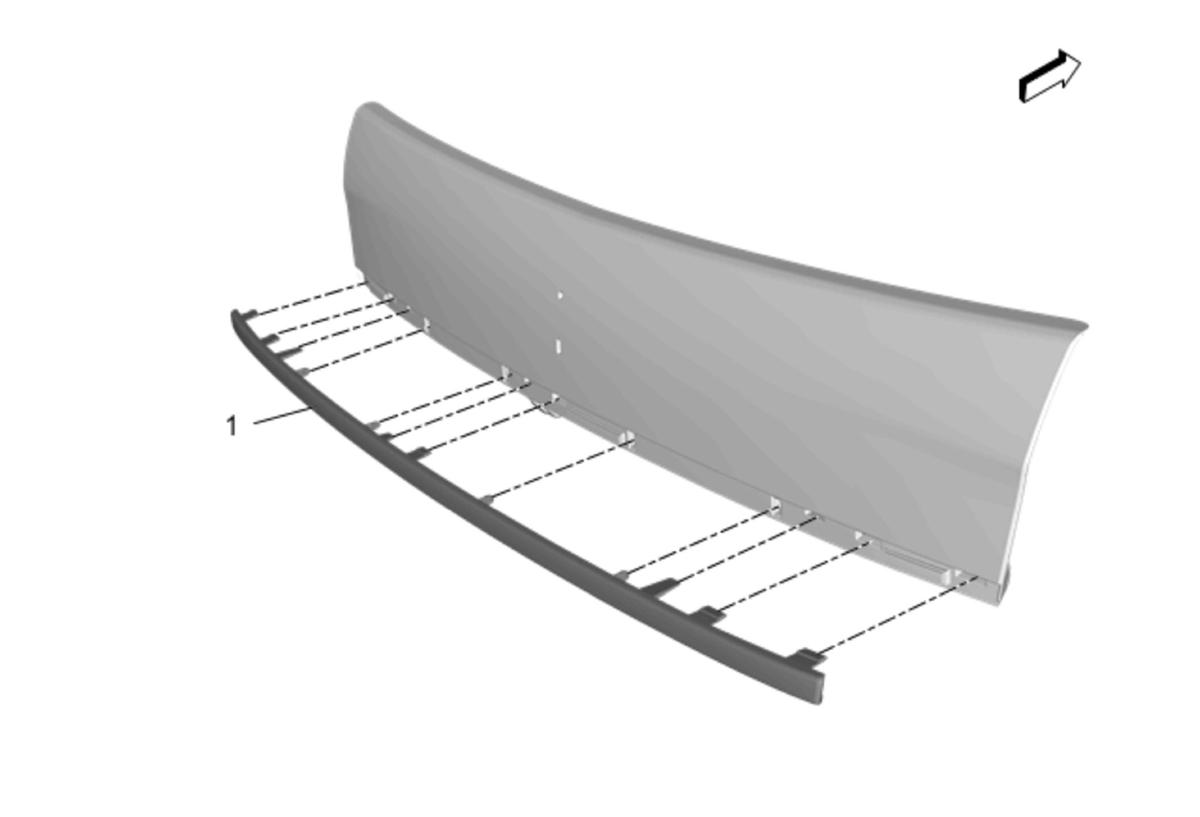

Fig 1: Rear Closure Center Applique Carrier

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Liftgate Outside Handle Replacement Rearview Camera Image Display Module Replacement
1	Rear Closure Center Applique Carrier Procedure Use a small flat bladed tool to aid in the removal of the rear closure center applique carrier. Applique carrier tabs could break easily. If needed, replace the applique carrier with new one.

Callout

Component Name

Preliminary Procedures

Liftgate Outside Handle Replacement
Rearview Camera Image Display Module Replacement

Rear Closure Center Applique Carrier

Procedure

Use a small flat bladed tool to aid in the removal of the rear closure center applique carrier.
Applique carrier tabs could break easily. If needed, replace the applique carrier with new one.
