Liftgate Emblem/Nameplate Replacement (Nameplate)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

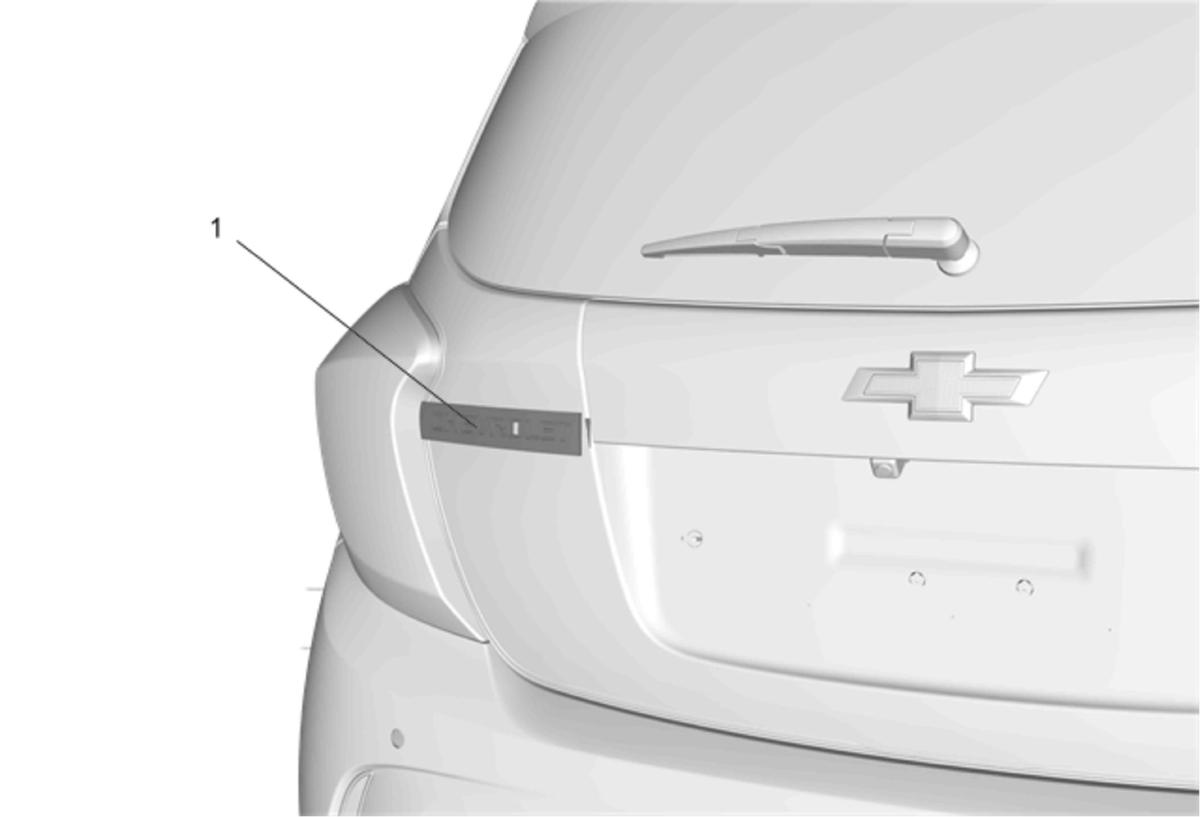

Fig 1: Liftgate Emblem/Nameplate (Nameplate)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Liftgate Vehicle Name Plate CAUTION: Refer to Exterior Trim Emblem Removal Caution . Procedure The part and surface should be 21°C (70°F) prior to installation. The vehicle should remain 21°C (70°F) for one hour after assembly to allow adhesive to develop sufficient bond strength. Use a Heat Gun or equivalent to remove the old nameplate. Clean all adhesive from the rear compartment panel and wipe the surface dry with a clean lint-free towel prior to installing the new nameplate. Wipe the vehicle surface area with a 50/50 solution by volume of isopropyl alcohol and clean drinkable water. When removing protective liners from the adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion. Use the alignment template to position liftgate vehicle nameplate. Using the palm of the hand, wet out the liftgate vehicle nameplate to the liftgate to ensure full adhesion is made.

Callout

Component Name

Liftgate Vehicle Name Plate

CAUTION: Refer to Exterior Trim Emblem Removal Caution .

Procedure

The part and surface should be 21°C (70°F) prior to installation. The vehicle should remain 21°C (70°F) for one hour after assembly to allow adhesive to develop sufficient bond strength.
Use a Heat Gun or equivalent to remove the old nameplate. Clean all adhesive from the rear compartment panel and wipe the surface dry with a clean lint-free towel prior to installing the new nameplate.
Wipe the vehicle surface area with a 50/50 solution by volume of isopropyl alcohol and clean drinkable water.
When removing protective liners from the adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion.
Use the alignment template to position liftgate vehicle nameplate.
Using the palm of the hand, wet out the liftgate vehicle nameplate to the liftgate to ensure full adhesion is made.
