Front Fender Upper Rear Molding Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

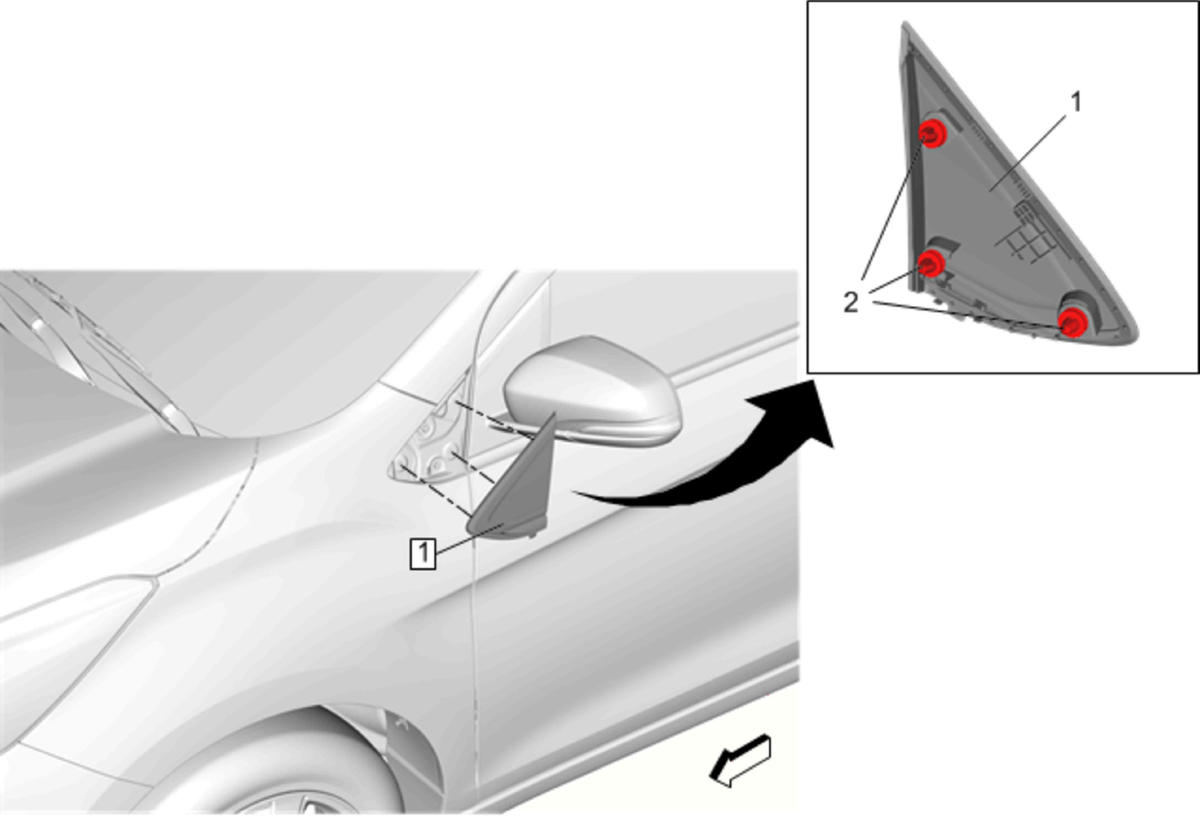

| Callout |
Component Name |
Preliminary Procedure
Open the front side door. |
| 1 |
Front Fender Upper Rear Molding Retainer [3x] |
| 2 |
Front Fender Upper Rear Molding
Procedure
Use a flat-bladed tool to aid in removal of the front fender upper rear molding. |
