Front Bumper Fascia Upper Molding Replacement (Right Side)
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

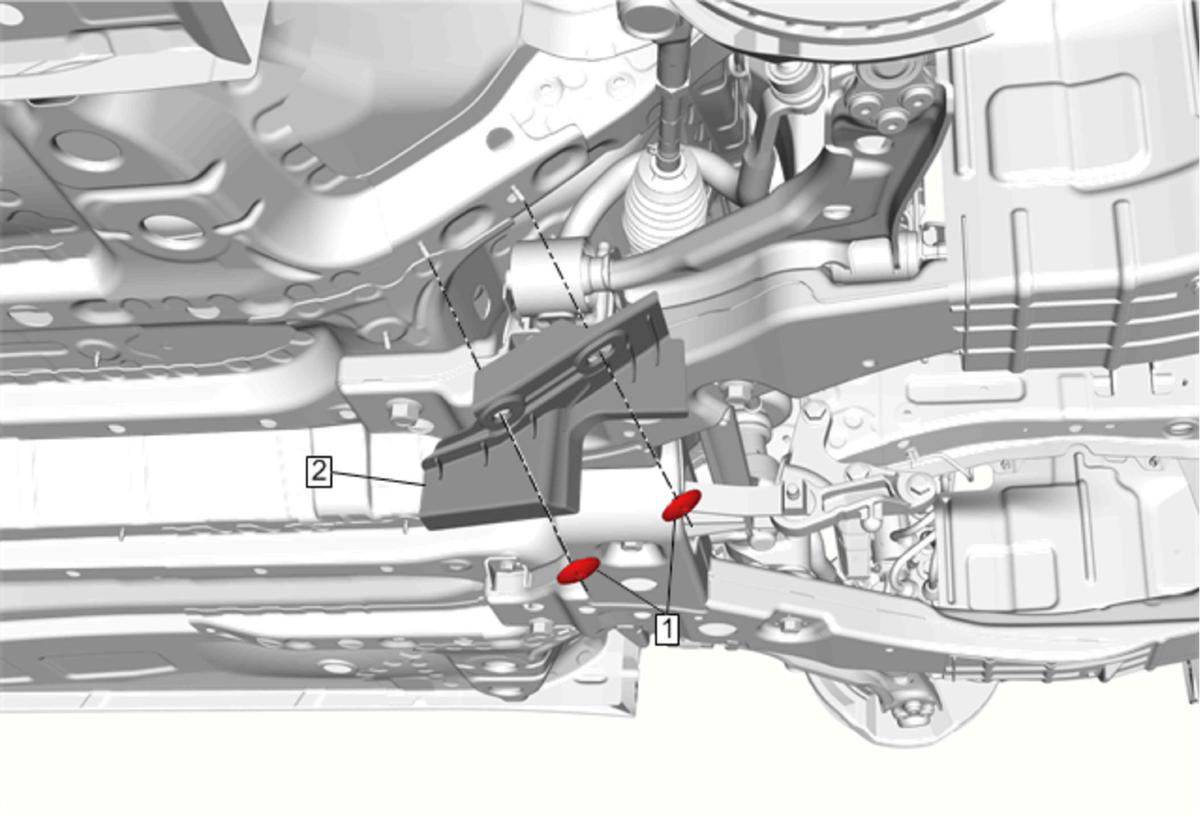

| Callout | Component Name |
|---|---|
| Preliminary Procedure
CAUTION:
Refer to Vehicle Lifting and Jacking Caution
. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Front Bumper Fascia Upper Molding Retainer (Qty 2) |
| 2 | Front Bumper Fascia Upper Molding |
