Body Side Upper Front Applique Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

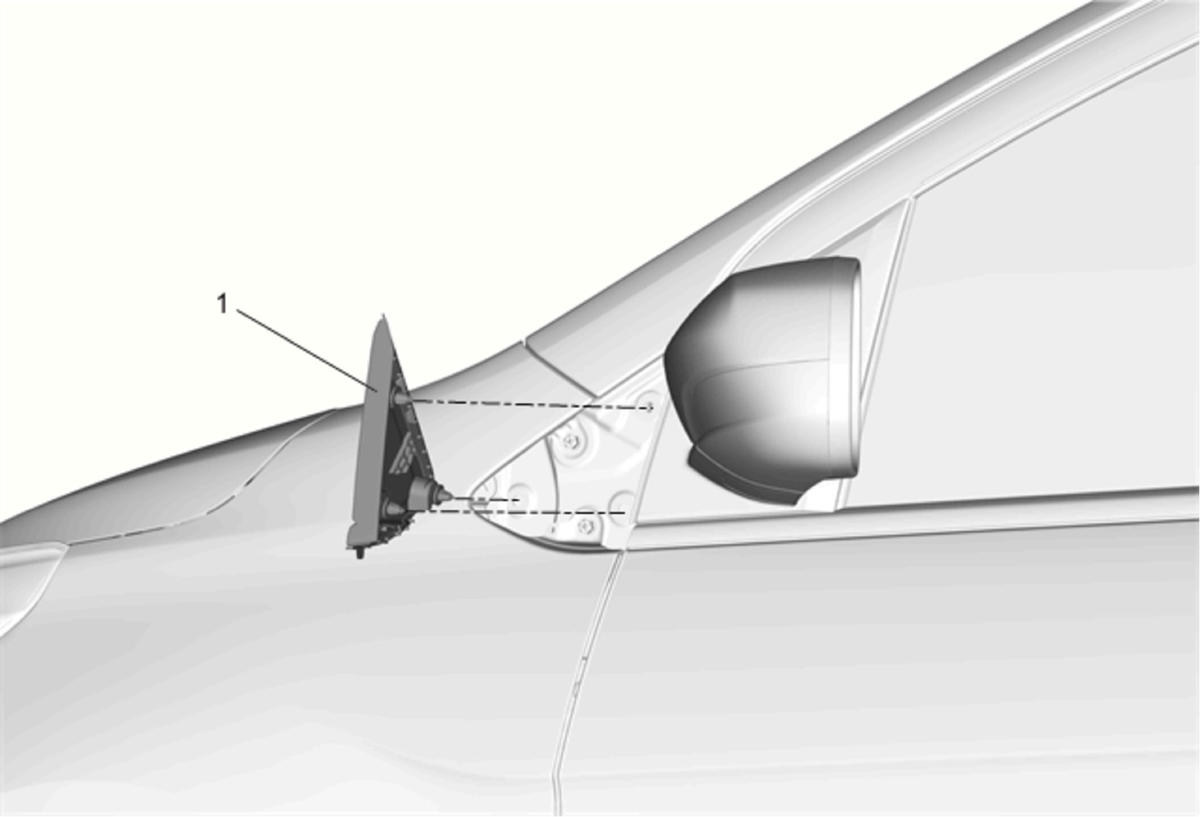

Fig 1: Body Side Upper Front Applique

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
CAUTION: Refer to Exterior Trim Emblem Removal Caution . Preliminary Procedure Open the front door.
1	Body Side Upper Front Applique Procedure Using a trim type release tool, disengage the rear lower clip from the body side outer panel. Gently pull the body side upper front applique away from the vehicle to disengage the two remaining clips. Upon installation, using the palm of the hand secure each retainer location until fully seated to the body side outer panel and front fender.

Callout

Component Name

CAUTION: Refer to Exterior Trim Emblem Removal Caution .

Preliminary Procedure Open the front door.

Body Side Upper Front Applique

Procedure

Using a trim type release tool, disengage the rear lower clip from the body side outer panel.
Gently pull the body side upper front applique away from the vehicle to disengage the two remaining clips.
Upon installation, using the palm of the hand secure each retainer location until fully seated to the body side outer panel and front fender.
