Windshield Wiper Blade Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

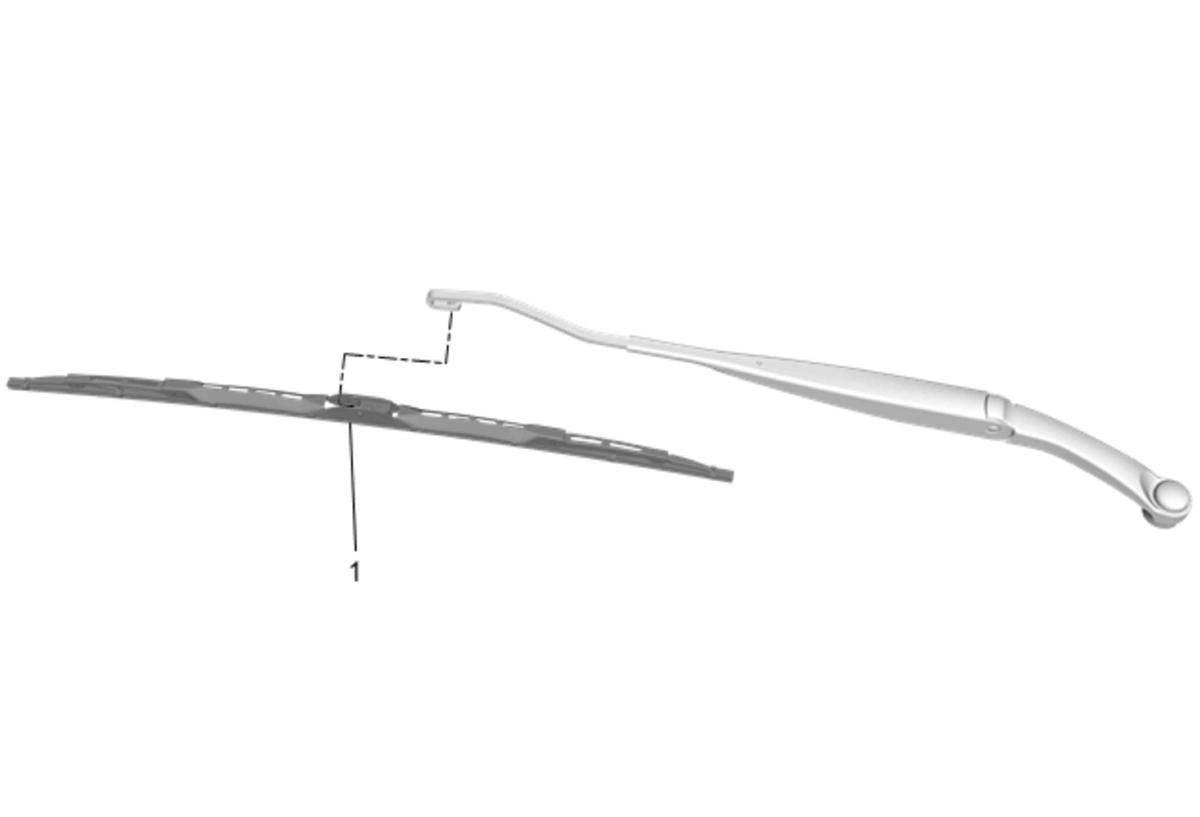

Fig 1: Windshield Wiper Blade

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Windshield Wiper Blade Assembly Procedure Lift the windshield wiper arm off the windshield to the service up position. Depress the windshield wiper arm tab at the small square hole in the windshield wiper arm. Rotate the windshield wiper blade slightly downward and slide the windshield wiper blade assembly from the windshield wiper arm. Gently return the windshield wiper arm to the windshield. Install a new windshield wiper blade.

Callout

Component Name

Windshield Wiper Blade Assembly

Procedure

Lift the windshield wiper arm off the windshield to the service up position.
Depress the windshield wiper arm tab at the small square hole in the windshield wiper arm.
Rotate the windshield wiper blade slightly downward and slide the windshield wiper blade assembly from the windshield wiper arm.
Gently return the windshield wiper arm to the windshield.
Install a new windshield wiper blade.
