Windshield Washer Pump Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

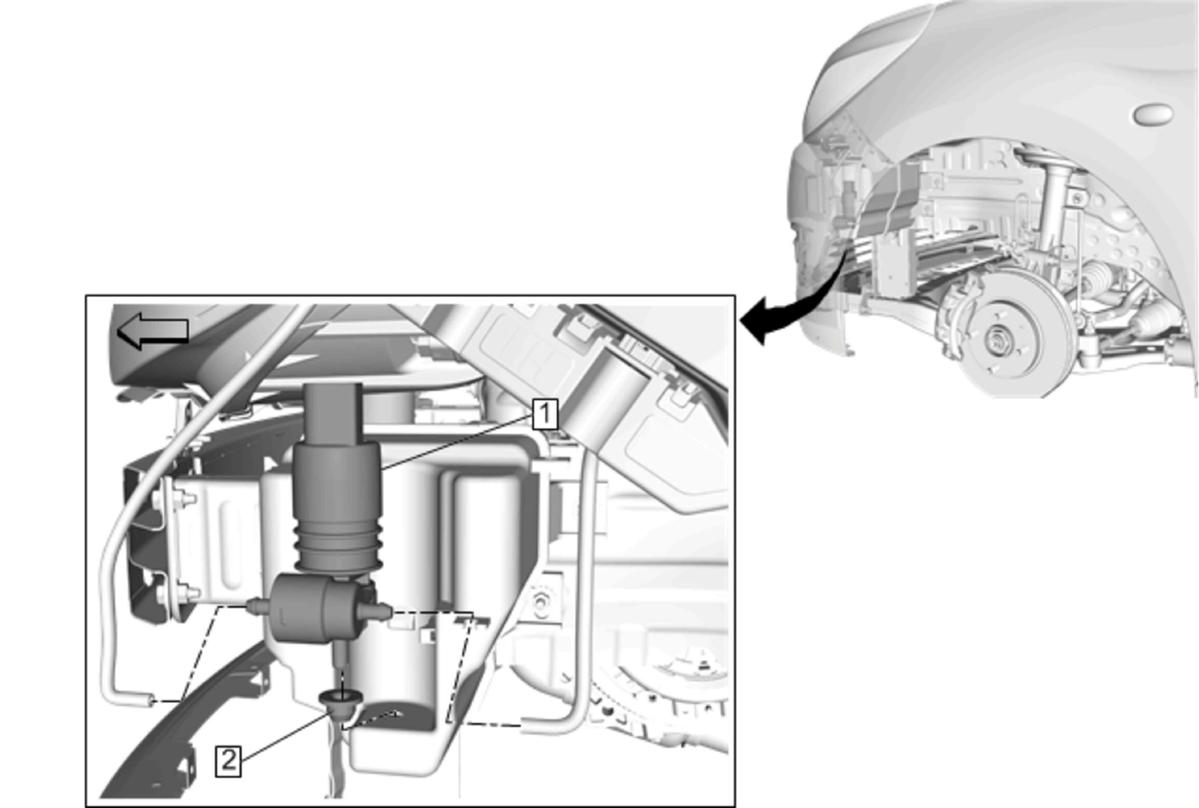

Fig 1: Windshield Washer Pump

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front wheelhouse front liner. Refer to Front Wheelhouse Liner Replacement .
1	Windshield Washer Pump Procedure Disconnect the windshield washer pump electrical connector. Drain the windshield washer solvent container into a clean suitable container. Disconnect the windshield washer pump hose from the washer pump. Disconnect the rear window washer solvent container hose from the washer pump. Using a small flat-bladed tool, remove the windshield washer pump from the windshield washer solvent container.
2	Windshield Washer Pump Seal Procedure Using a small flat-bladed tool, remove the windshield washer pump seal from the windshield washer solvent container and inspect the seal. Replace if damaged.

Callout

Component Name

Preliminary Procedure
Remove the front wheelhouse front liner. Refer to Front Wheelhouse Liner Replacement .

Windshield Washer Pump

Procedure

Disconnect the windshield washer pump electrical connector.
Drain the windshield washer solvent container into a clean suitable container.
Disconnect the windshield washer pump hose from the washer pump.
Disconnect the rear window washer solvent container hose from the washer pump.
Using a small flat-bladed tool, remove the windshield washer pump from the windshield washer solvent container.

Windshield Washer Pump Seal
Procedure
Using a small flat-bladed tool, remove the windshield washer pump seal from the windshield washer solvent container and inspect the seal. Replace if damaged.
