Windshield Washer Pump Hose Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

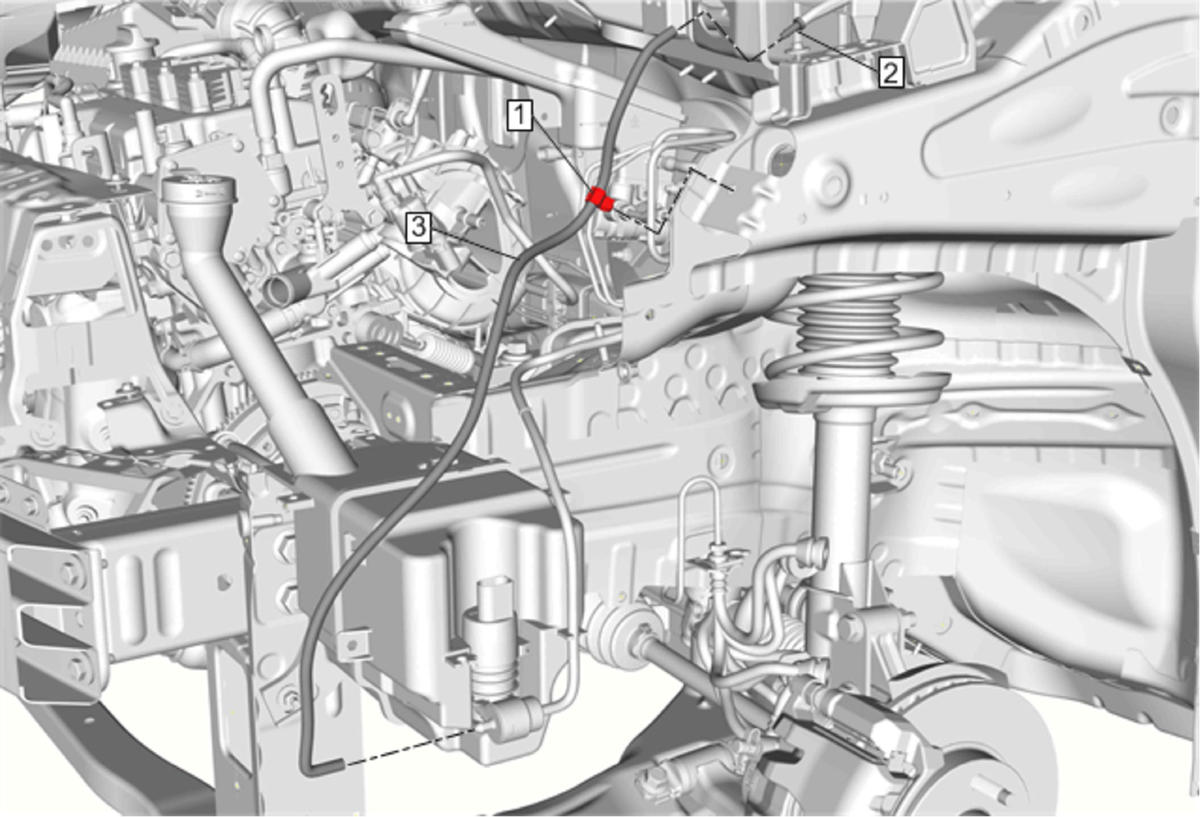

| Callout |
Component Name |
|
Preliminary Procedures
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
.
- Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement
.
|
| 1 |
Windshield Washer Pump Hose Procedure
- Place a collecting container under the windshield washer solvent container.
- Disconnect the windshield washer pump hose from the windshield washer pump.
- Lower the vehicle.
- Disconnect the windshield washer pump hose from the windshield washer nozzle hose.
- Remove the windshield washer pump hose from windshield washer solvent container and Remove clip on the front compartment upper rail panel.
NOTE:
Observe the routing of the windshield washer pump hose for installation purposes.
|
| 2 |
Windshield Washer Nozzle Hose Connector Clip |
| 3 |
Windshield Washer Pump Hose Connector |
