Windshield Washer Nozzle Adjustment

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

BO-49380 Adjusting Tool

For equivalent regional tools, refer to Special Tools .

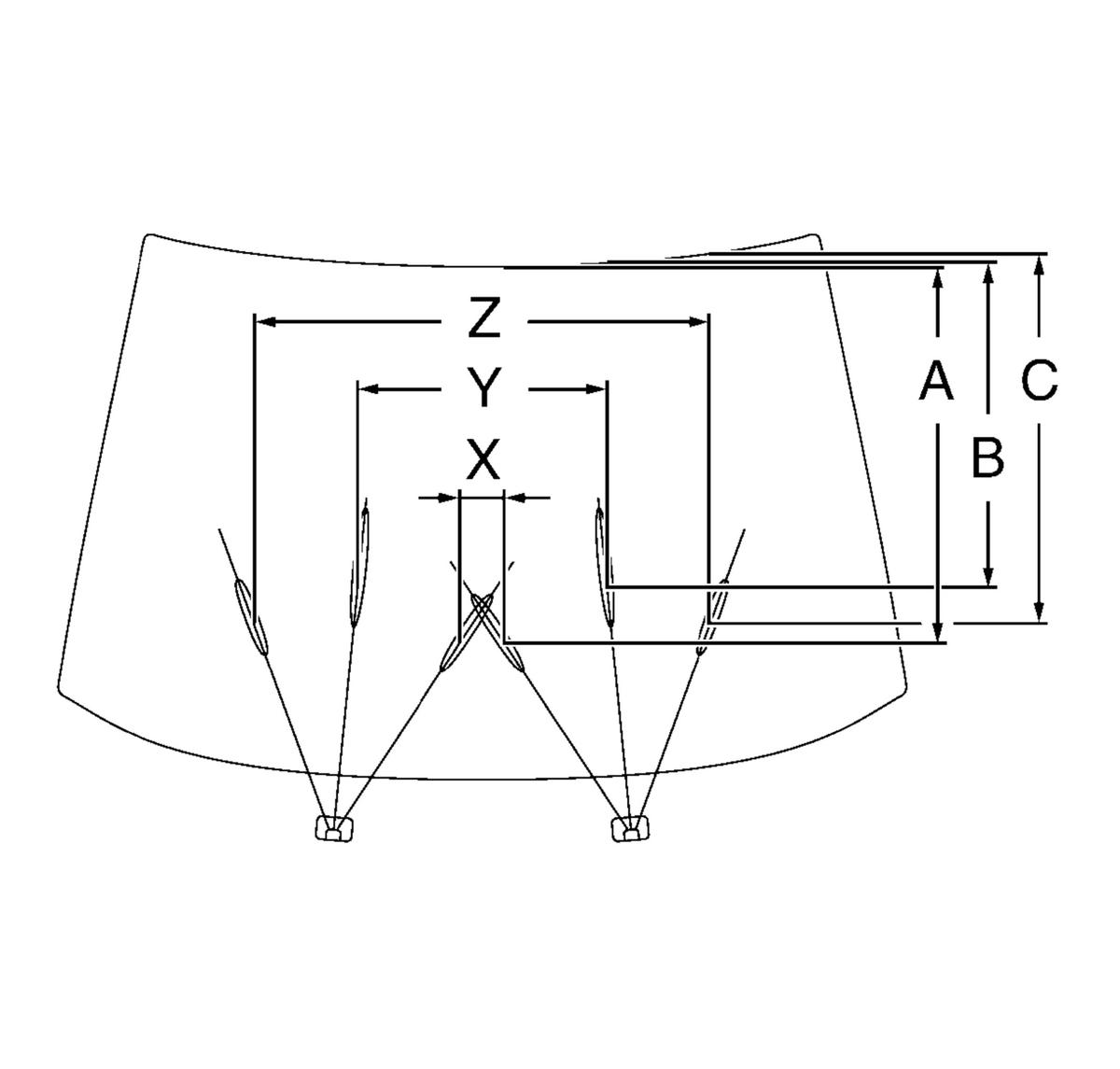

Fig 1: Windshield Washer Nozzle Adjustment

Courtesy of GENERAL MOTORS COMPANY

NOTE:

All adjustments must be completed with the hood assembly in the FULL closed position.

A = 638 mm (25.118 in)
B = 550 mm (21.653 in)
C = 630 mm (24.803 in)
X = 76 mm (2.992 in)
Y = 420 mm (16.535 in)
Z = 768 mm (30.236 in)

Adjust the windshield washer nozzle using the BO-49380 adjuster.
