Rear Window Washer Nozzle Replacement (without Rear End Spoiler)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

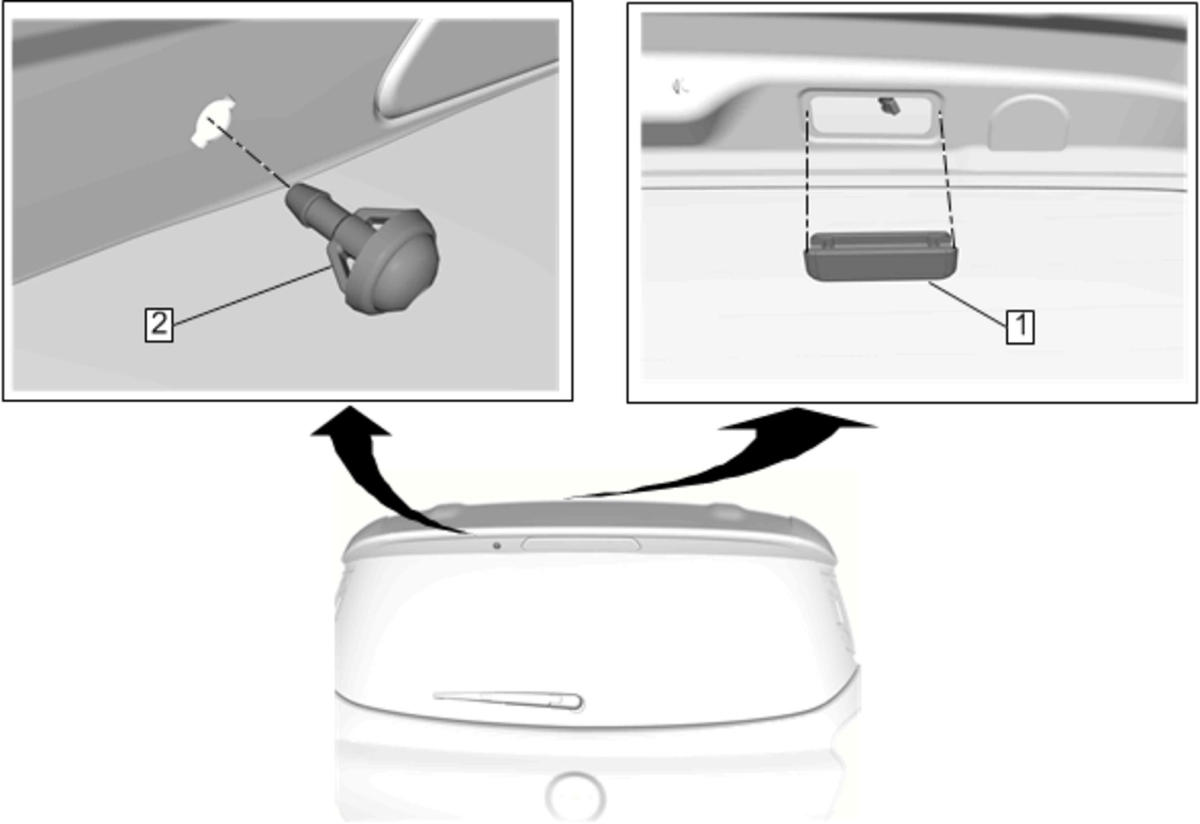

Fig 1: Rear Window Washer Nozzle (without Rear End Spoiler)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Open and support the liftgate.
1	High Mount Stop Lamp Opening Cover Procedure Remove the high mount stop lamp opening cover. Disconnect the rear window washer nozzle hose from the rear window washer nozzle.
2	Rear Window Washer Nozzle Procedure Pinch the two tabs on the rear window washer nozzle and push the nozzle out of the lift gate.

Callout

Component Name

Preliminary Procedure
Open and support the liftgate.

High Mount Stop Lamp Opening Cover

Procedure

Remove the high mount stop lamp opening cover.
Disconnect the rear window washer nozzle hose from the rear window washer nozzle.

Rear Window Washer Nozzle
Procedure
Pinch the two tabs on the rear window washer nozzle and push the nozzle out of the lift gate.
