Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

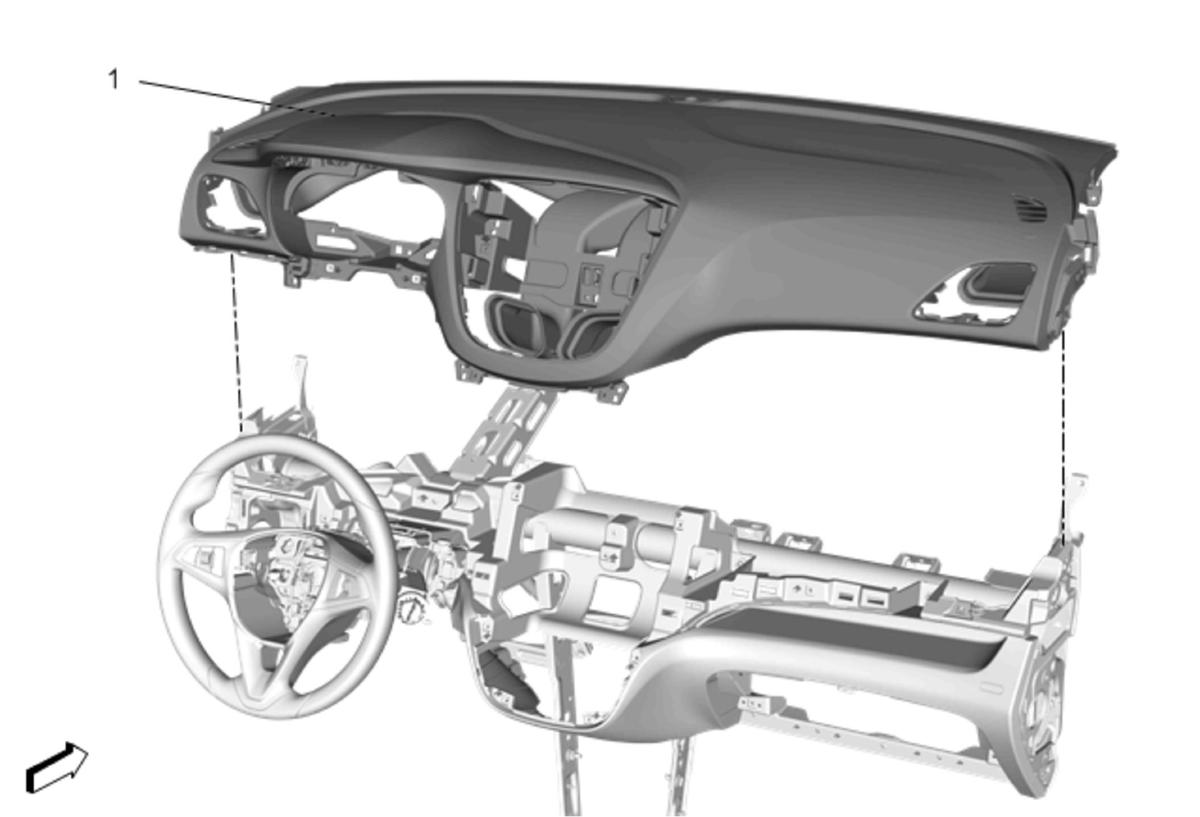

  1. Remove the instrument panel upper trim panel (1). Refer to Instrument Panel Upper Trim Panel Replacement .
    Fig 1: Instrument Panel Upper Trim Panel
    GM4052325Courtesy of GENERAL MOTORS COMPANY

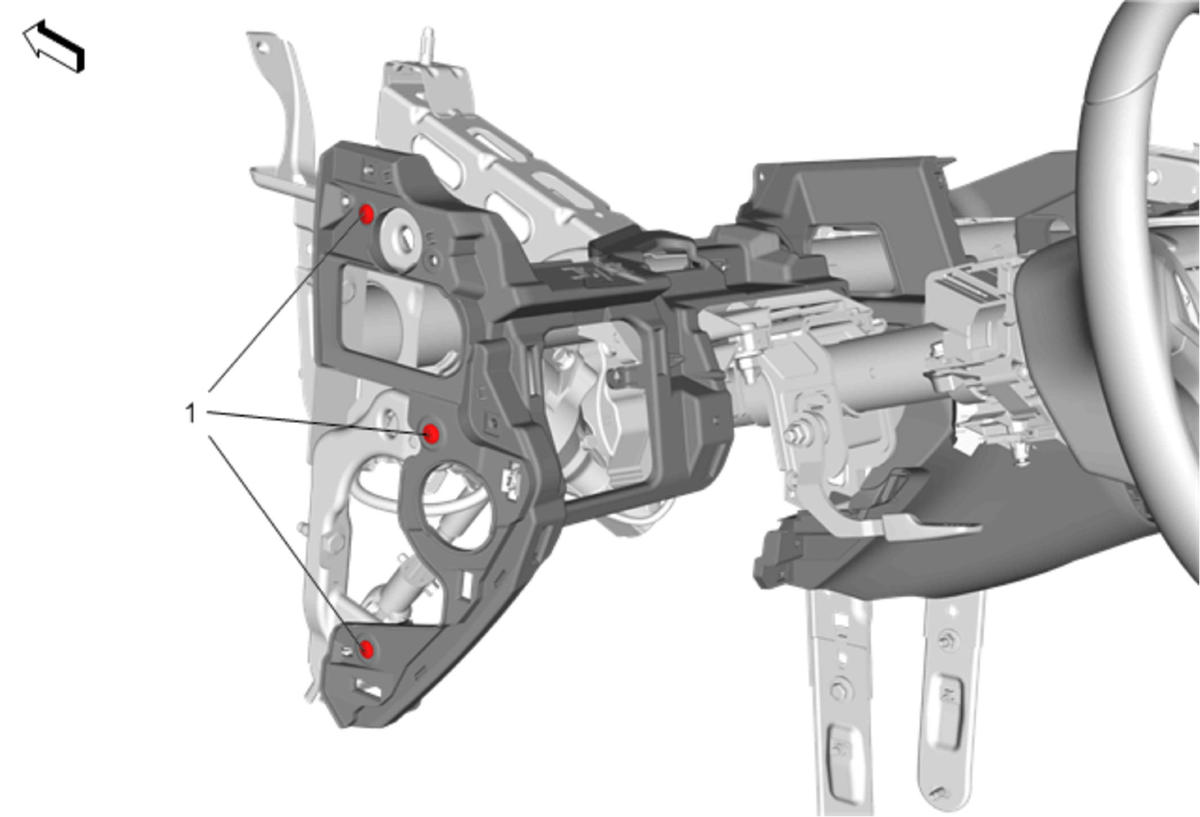

  2. Remove the instrument panel lower trim panel screws (1) from the left side of the IP.
    Fig 2: Instrument Panel Lower Trim Panel Screws And Left Side Of IP
    GM4052326Courtesy of GENERAL MOTORS COMPANY

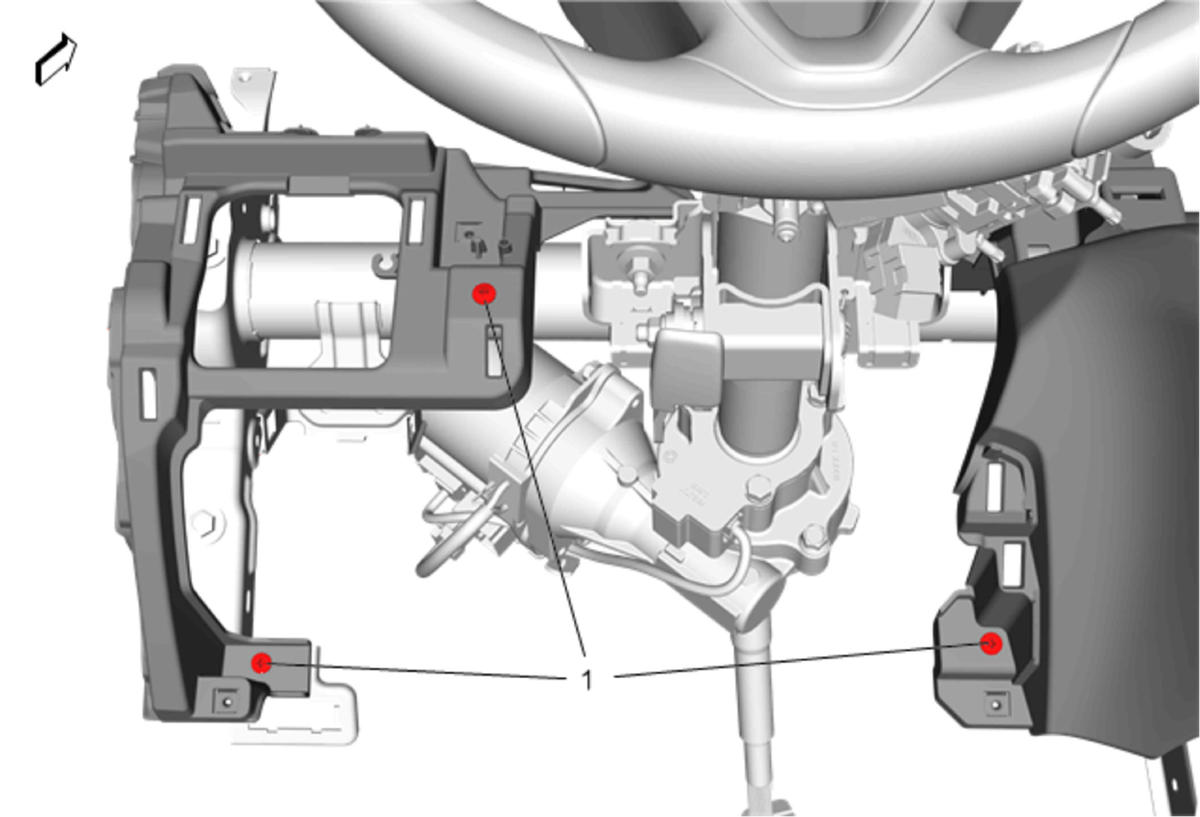

  3. Remove the instrument panel lower trim panel screws (1) from the driver leg room.
    Fig 3: Instrument Panel Lower Trim Panel Screws And Driver Leg Room
    GM4052331Courtesy of GENERAL MOTORS COMPANY

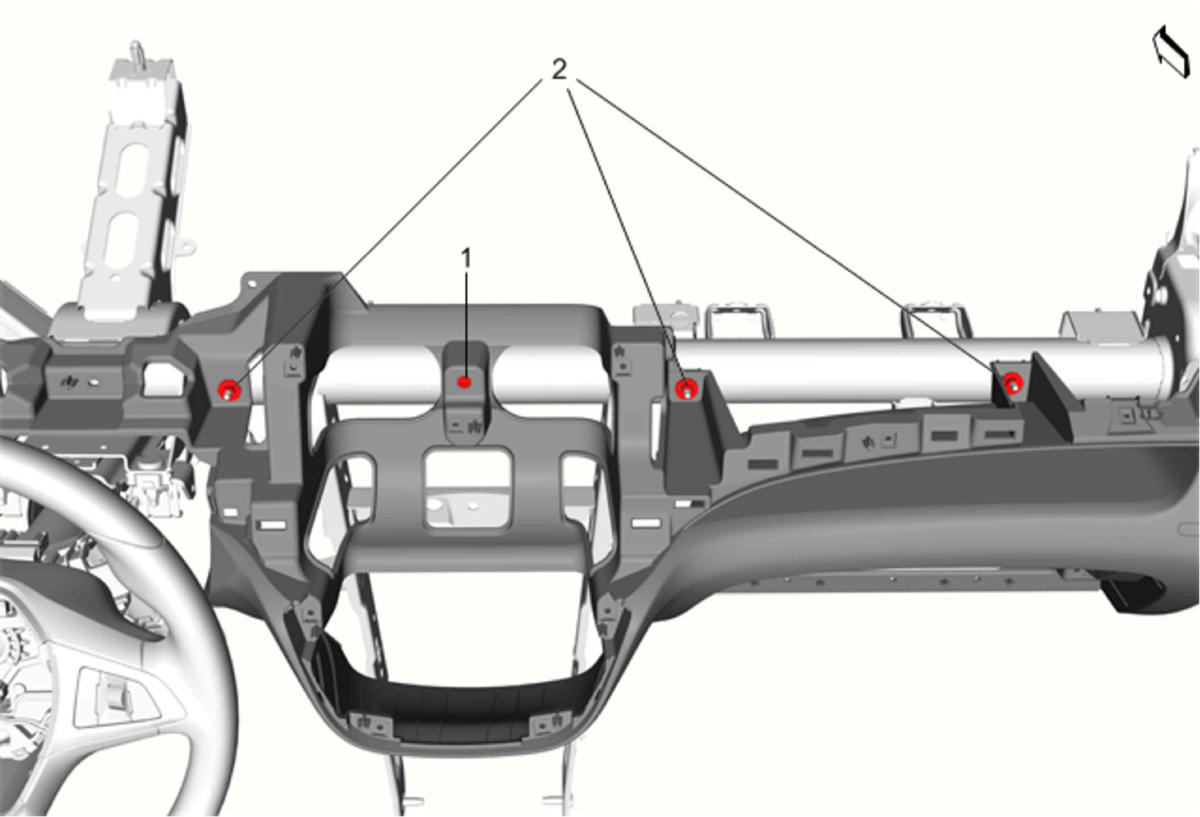

  4. Remove the instrument panel lower trim panel screw (1) and nuts (2) from the center of the IP.
    Fig 4: Instrument Panel Lower Trim Panel Screw And Nuts
    GM4052332Courtesy of GENERAL MOTORS COMPANY

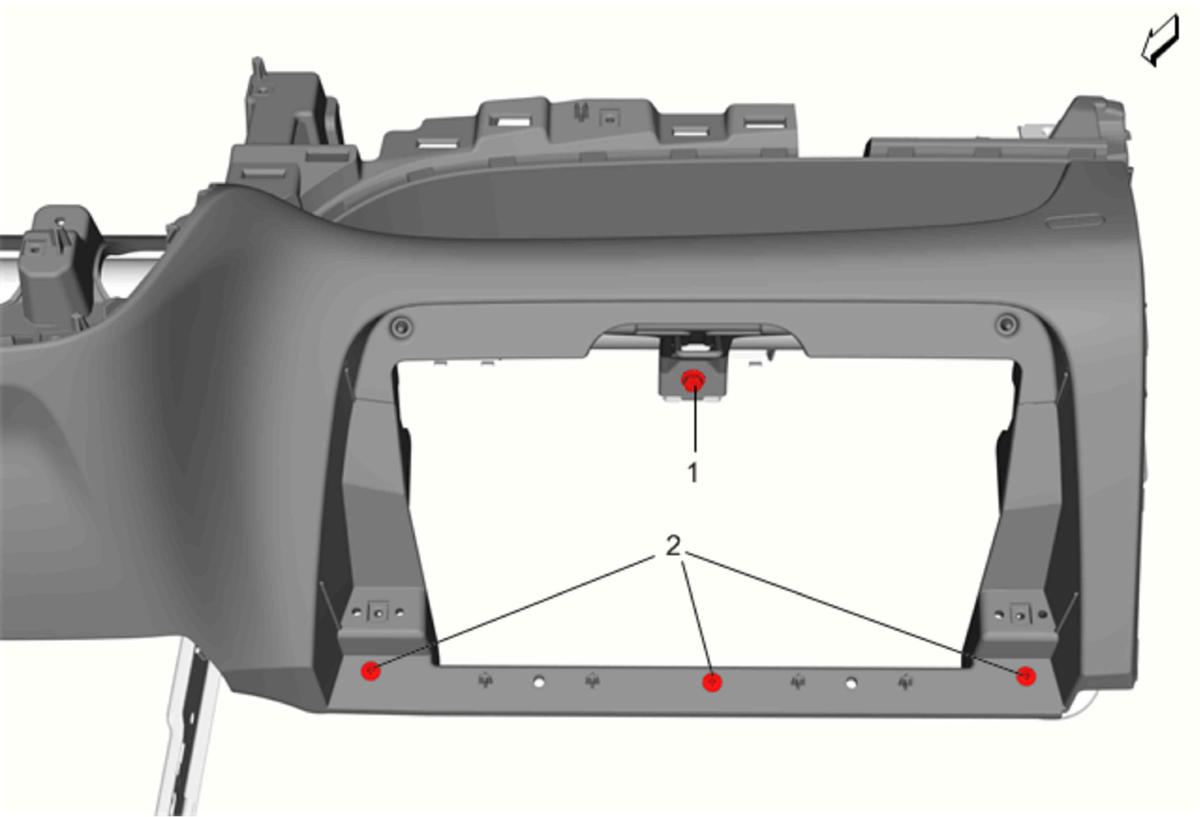

  5. Remove the instrument panel compartment door latch striker bolt (1) and instrument panel lower trim panel screws (1) from the IP compartment side.
    Fig 5: Instrument Panel Compartment Door Latch Striker Bolt
    GM4052333Courtesy of GENERAL MOTORS COMPANY

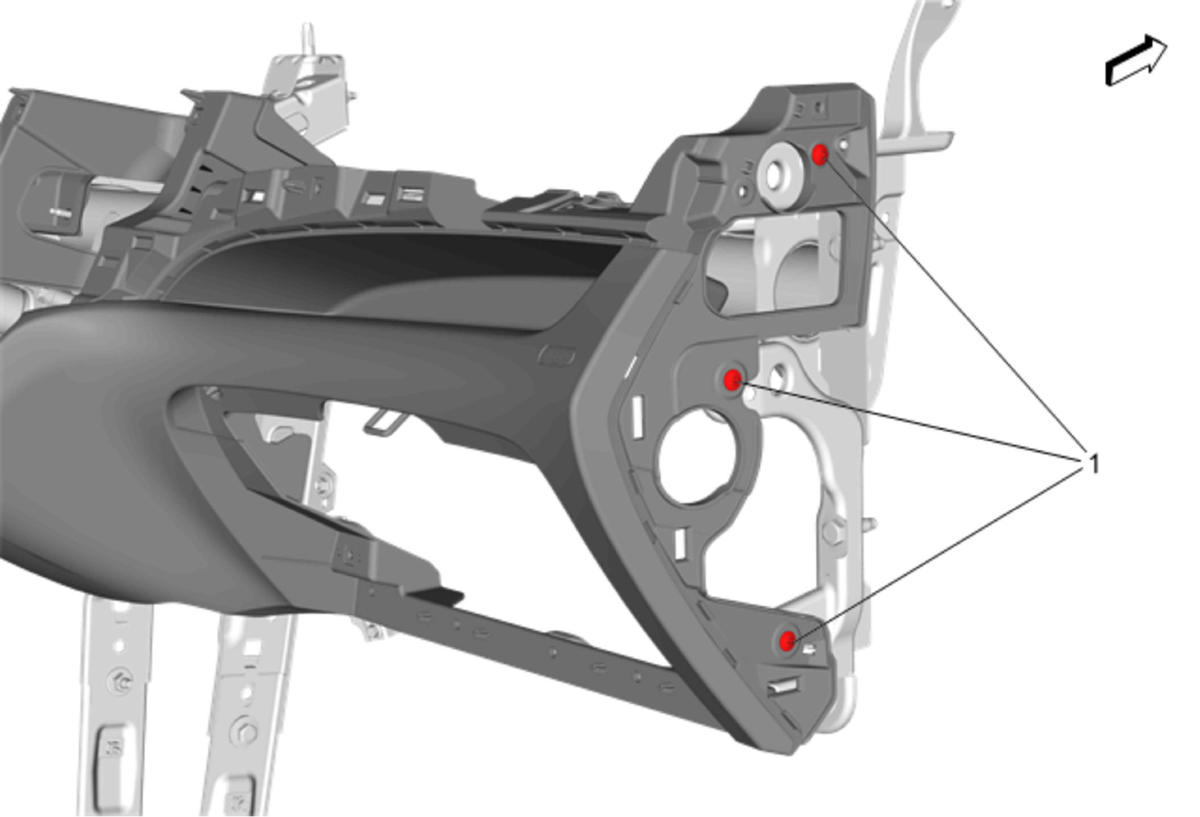

  6. Remove the instrument panel lower trim panel screws (1) from the right side of IP.
    Fig 6: Instrument Panel Lower Trim Panel Screws And Right Side Of IP
    GM4052339Courtesy of GENERAL MOTORS COMPANY
  7. Note the location and routing of the instrument panel electrical harness assembly, to ensure proper reinstallation.
  8. Disconnect the fasteners securing the instrument panel electrical harness assembly to the instrument panel and position out of the way.

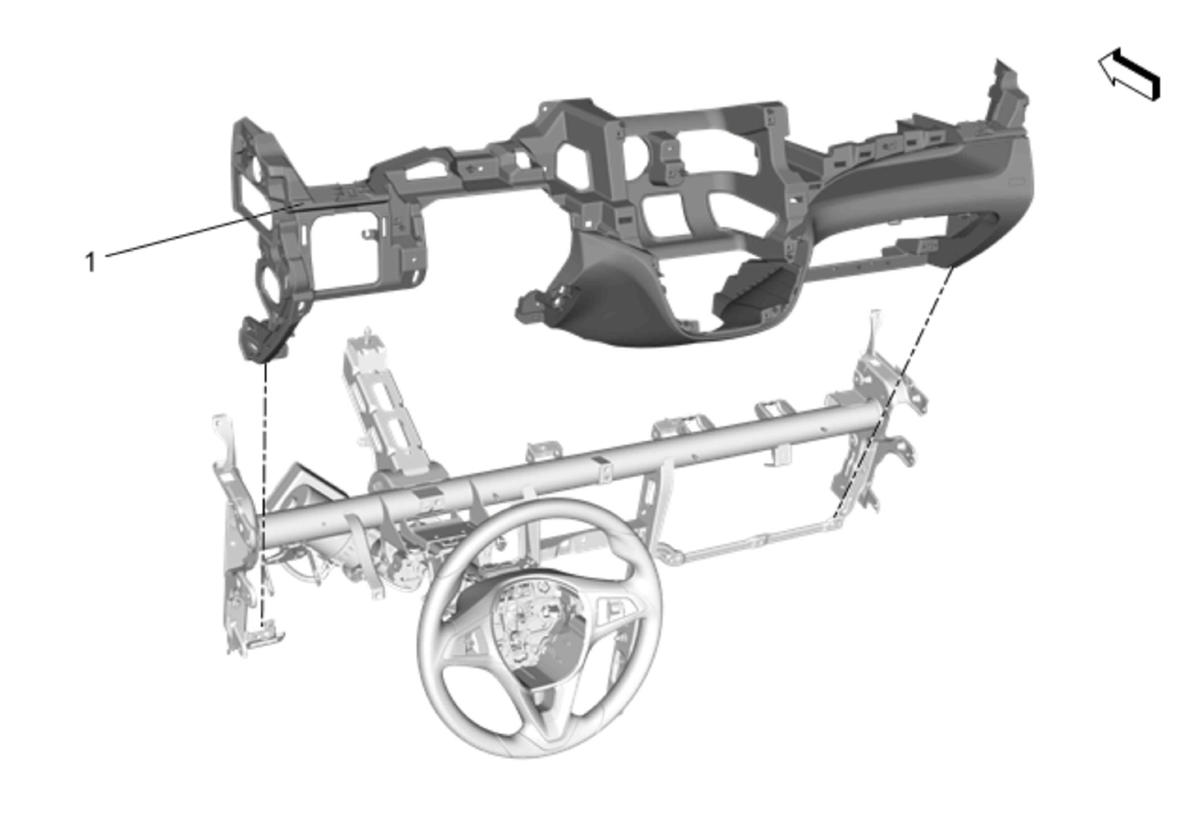

  9. With the aid of an assistant lift the instrument panel lower trim panel (1) rearward and upward from the IP tie bar assembly.
    Fig 7: Instrument Panel Lower Trim Panel
    GM4052340Courtesy of GENERAL MOTORS COMPANY
  10. Remove the instrument panel upper trim panel from the vehicle.
  11. Transfer all necessary components.
