Instrument Panel Compartment Door Latch Striker Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

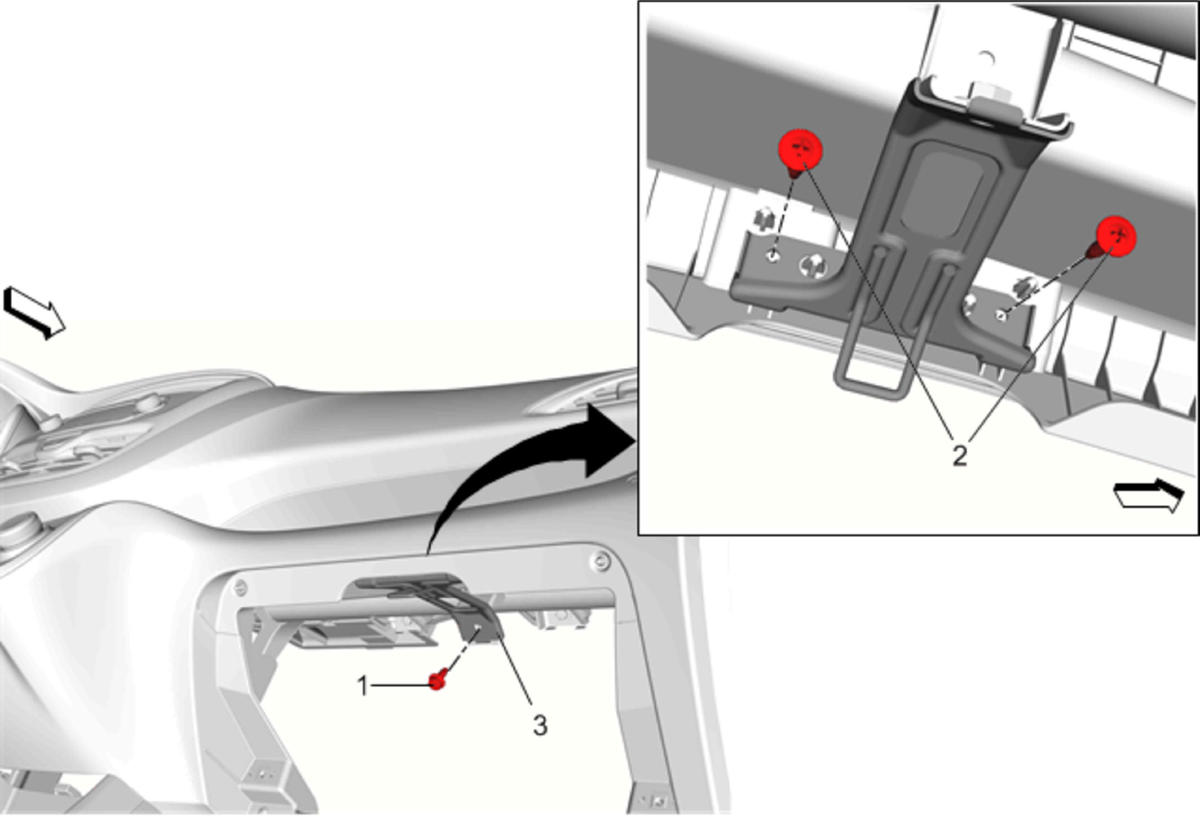

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement . |
|
| 1 | Instrument Panel Compartment Door Latch Striker Bolt
CAUTION:
Refer to Fastener Caution
. Tighten 9 N.m (80 lb in) |
| 2 | Instrument Panel Compartment Door Latch Striker Screw (Qty: 2) |
| 3 | Instrument Panel Compartment Door Latch Striker |
