Instrument Panel Center Compartment Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

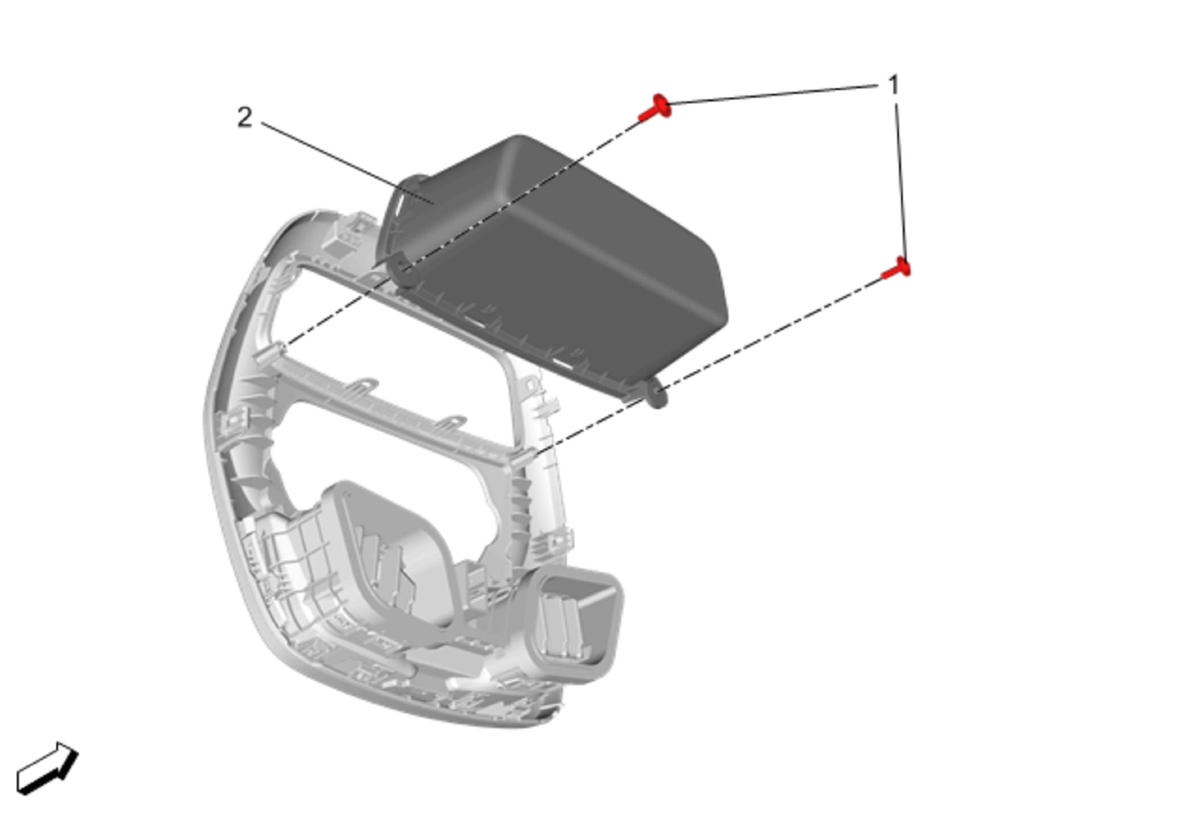

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel trim plate. Refer to Instrument Panel Trim Plate Replacement . |
|
| 1 | Instrument Panel Center Compartment Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
|
| 2 | Instrument Panel Center Compartment Procedure Use a flat-bladed plastic tool to remove. |
