Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the brake booster vacuum pipe (1) from the vacuum pump. Refer to Plastic Collar Quick Connect Fitting Service .

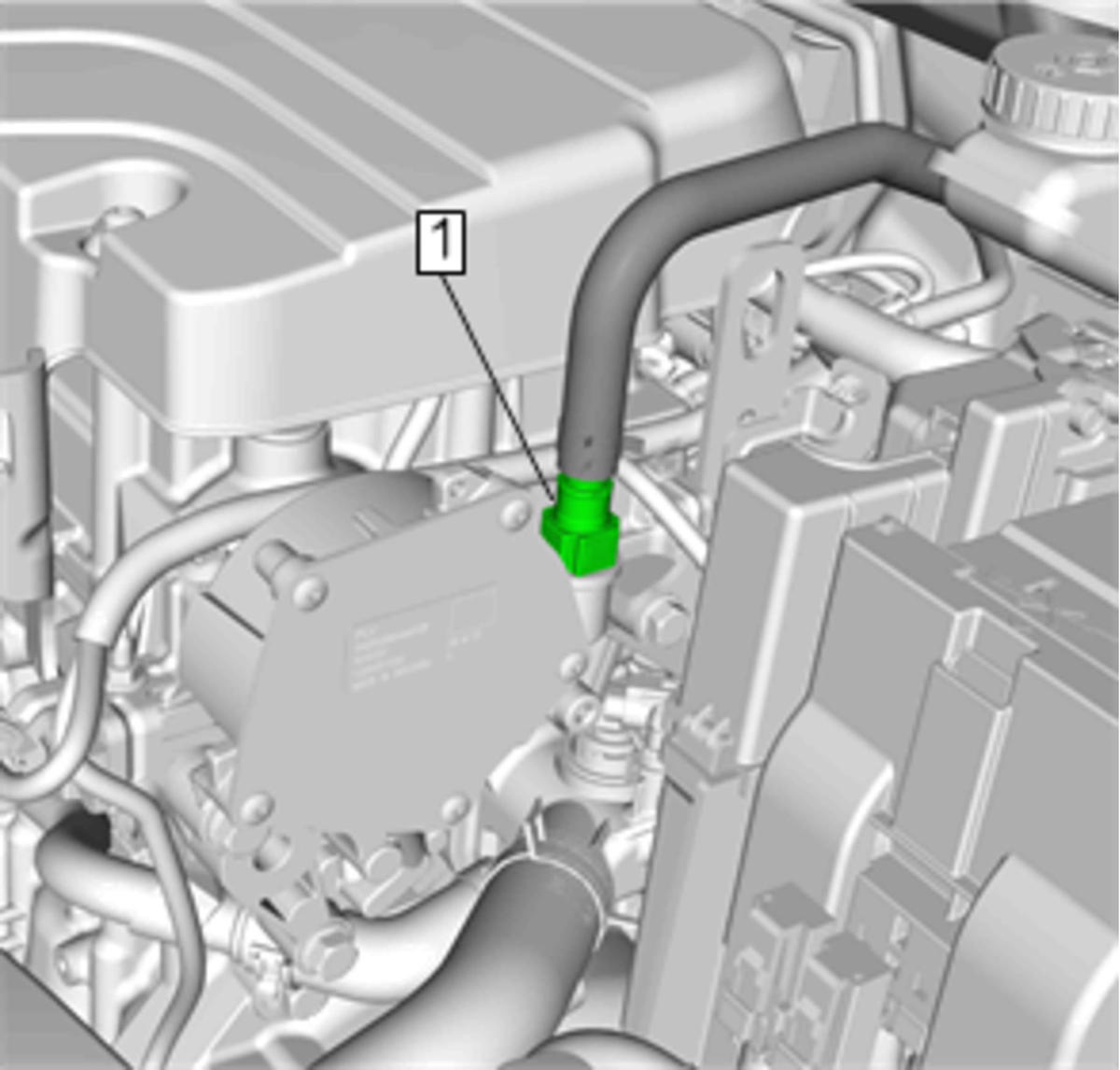

    Fig 1: Brake Booster Vacuum Pipe
    GM4230575Courtesy of GENERAL MOTORS COMPANY
  2. Remove the surge tank fixing bolts and set aside.

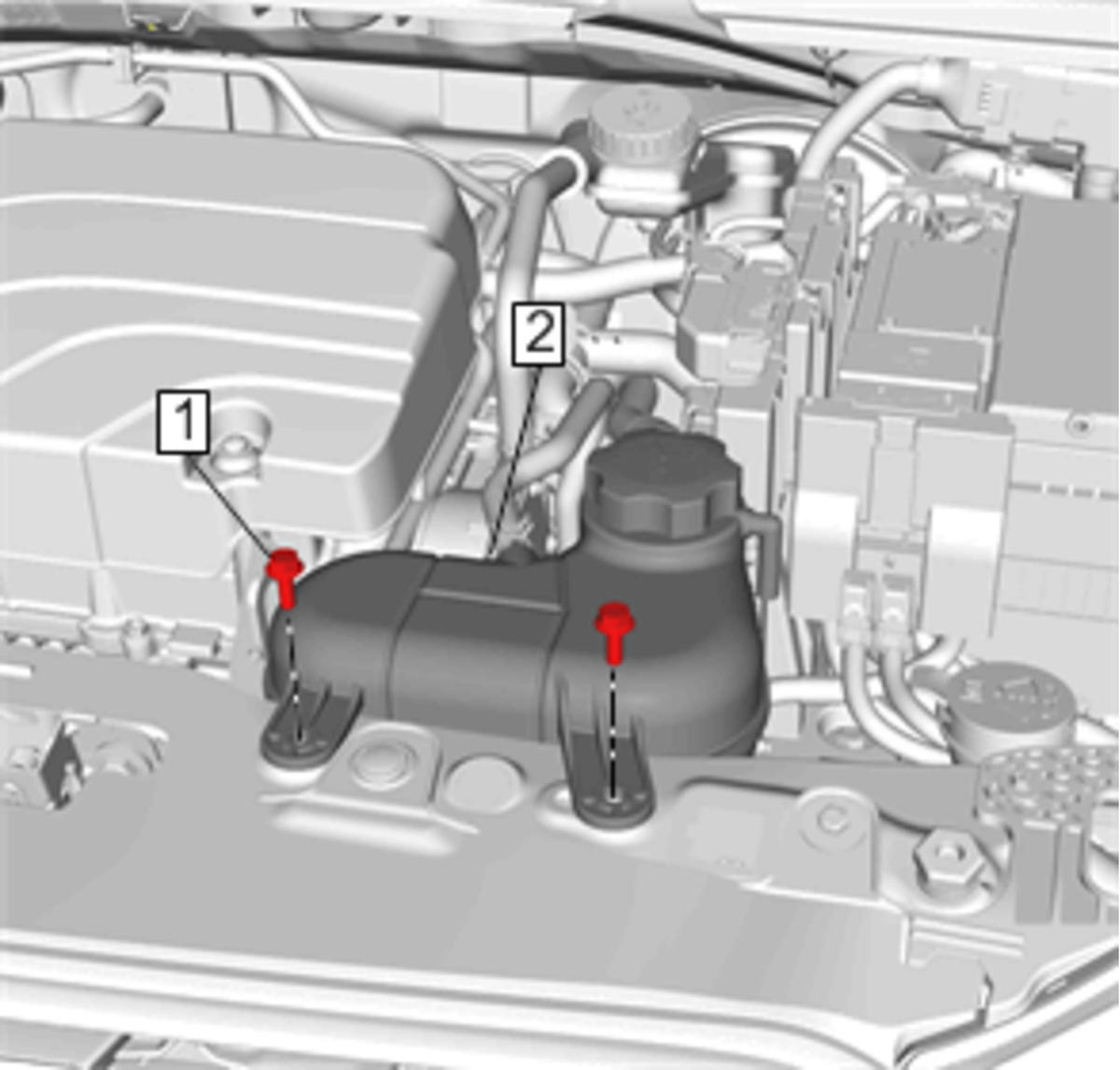

    Fig 2: Surge Tank Fixing Bolts
    GM4230576Courtesy of GENERAL MOTORS COMPANY
  3. Remove the 3 vacuum pump bolts (1).

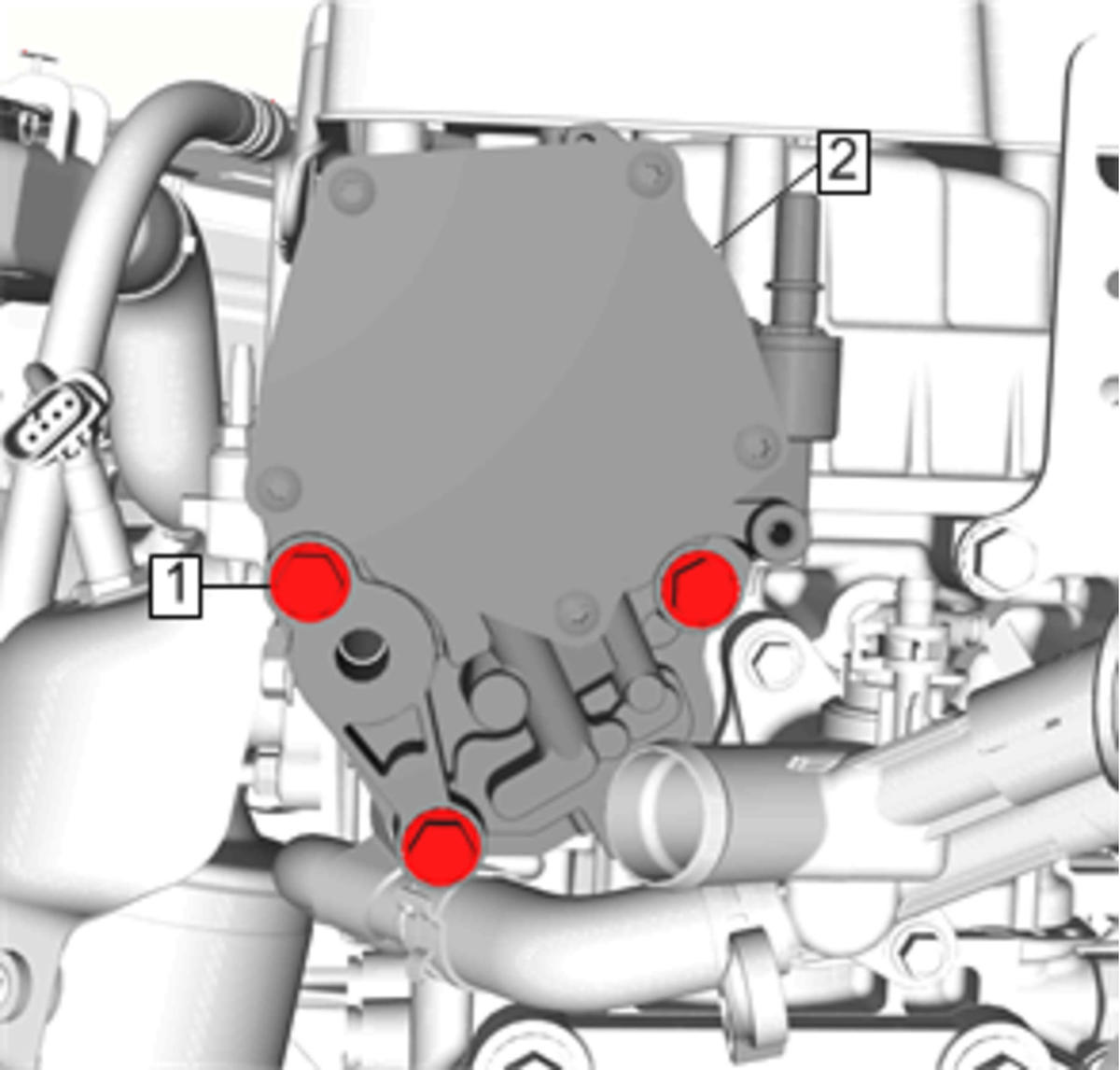

    Fig 3: Vacuum Pump Bolts
    GM4230578Courtesy of GENERAL MOTORS COMPANY
  4. Remove the vacuum pump (2).
  5. Remove and DISCARD the vacuum pump gasket.
