Intake Air Duct Resonator Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

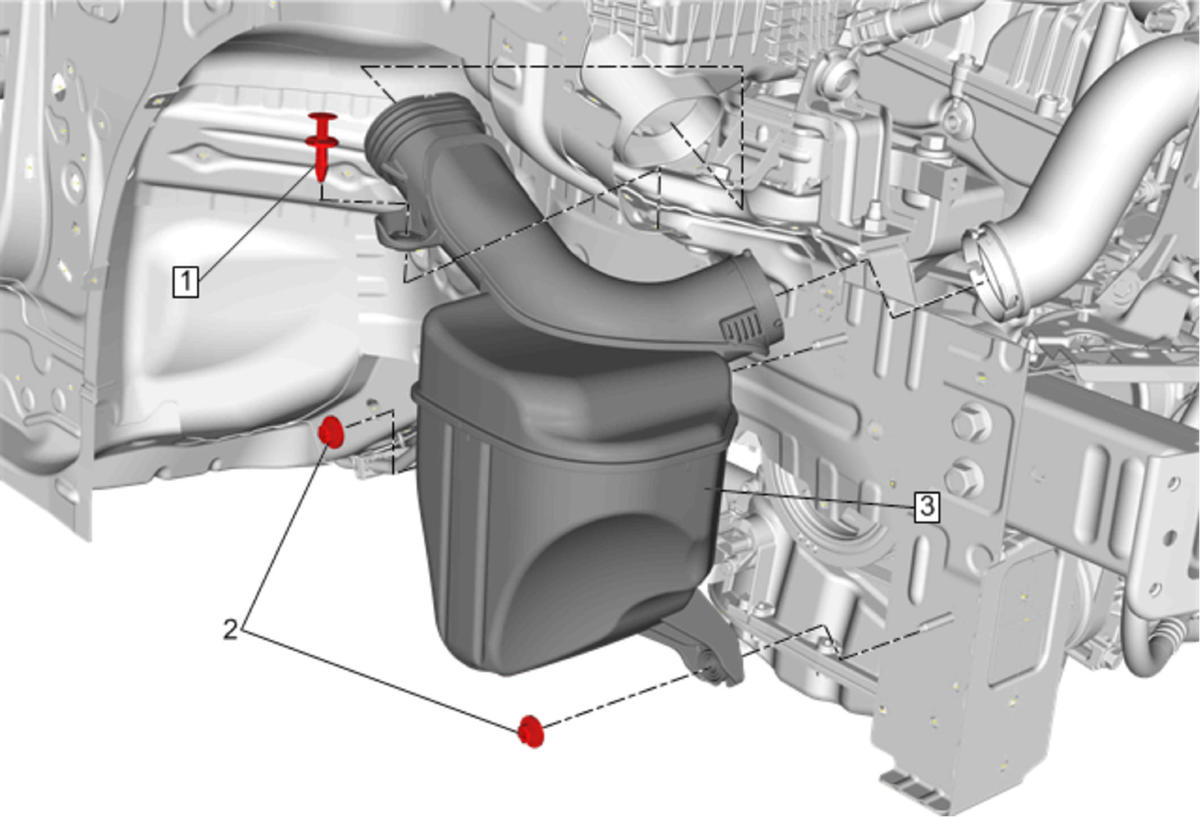

Fig 1: Intake Air Duct Resonator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement . Remove the front compartment splash shield. Refer to Front Bumper Fascia Opening Lower Cover Replacement . Remove the front wheel house liner. Refer to Front Wheelhouse Liner Replacement .
1	Air Cleaner Outlet Resonator Retainer
2	Air Cleaner Outlet Resonator Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
3	Air Cleaner Outlet Resonator
