Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

Using the adjustable jack, slowly raise and reposition the fuel tank (3) in order to install the fuel tank to the vehicle.

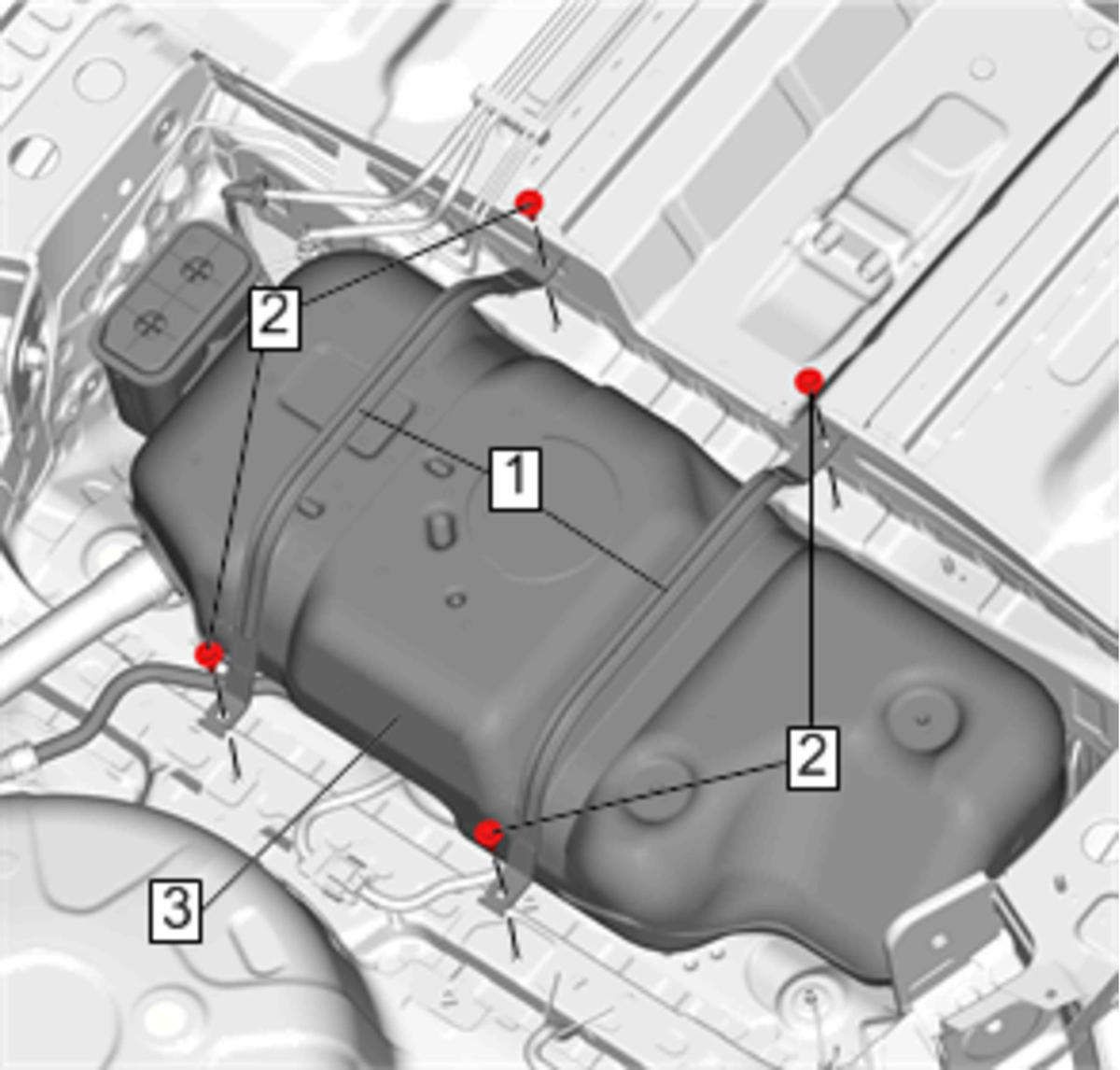

Fig 1: Fuel Tank Strap Bolts And Fuel Tank Straps
Courtesy of GENERAL MOTORS COMPANY

NOTE: Second technician required.

NOTE: Retract the jack.
Install the 2 fuel tank straps (1) and 4 fuel tank strap bolts (2). Tighten the bolts to 22 N.m (16 lb ft).
CAUTION: Refer to Fastener Caution .
Connect the fuel feed/evaporative emission separator (2) to the fuel feed pipe (4). Refer to Plastic Collar Quick Connect Fitting Service .

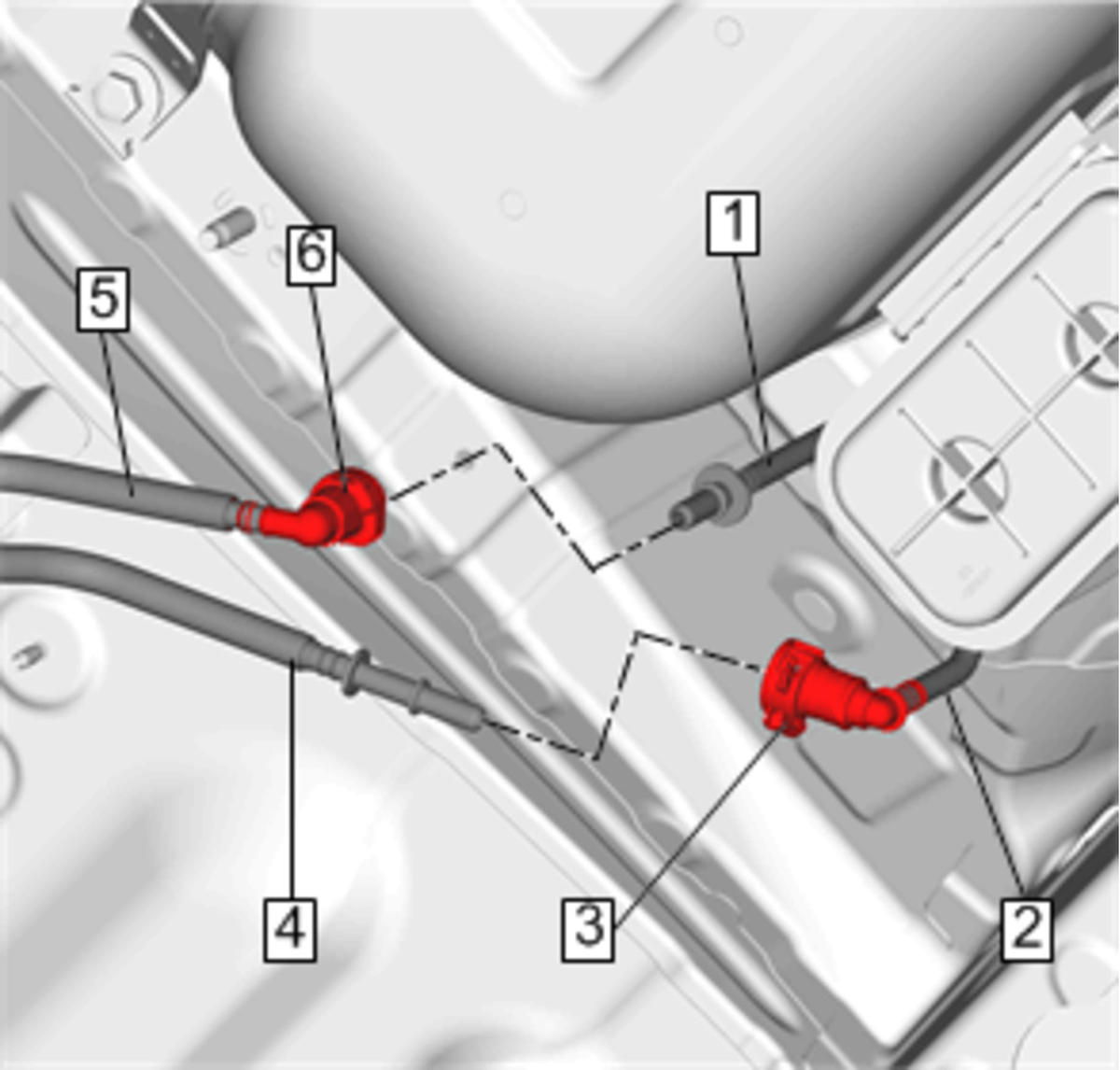

Fig 2: Evaporative Emission Pipe Fitting And Evaporative Emission Canister Purge Pipe
Courtesy of GENERAL MOTORS COMPANY
Connect the evaporative emission pipe (5) to the evaporative emission canister purge pipe (1). Refer to Plastic Collar Quick Connect Fitting Service .
Install the fuel tank filler vent hose (3) and clamp (2).

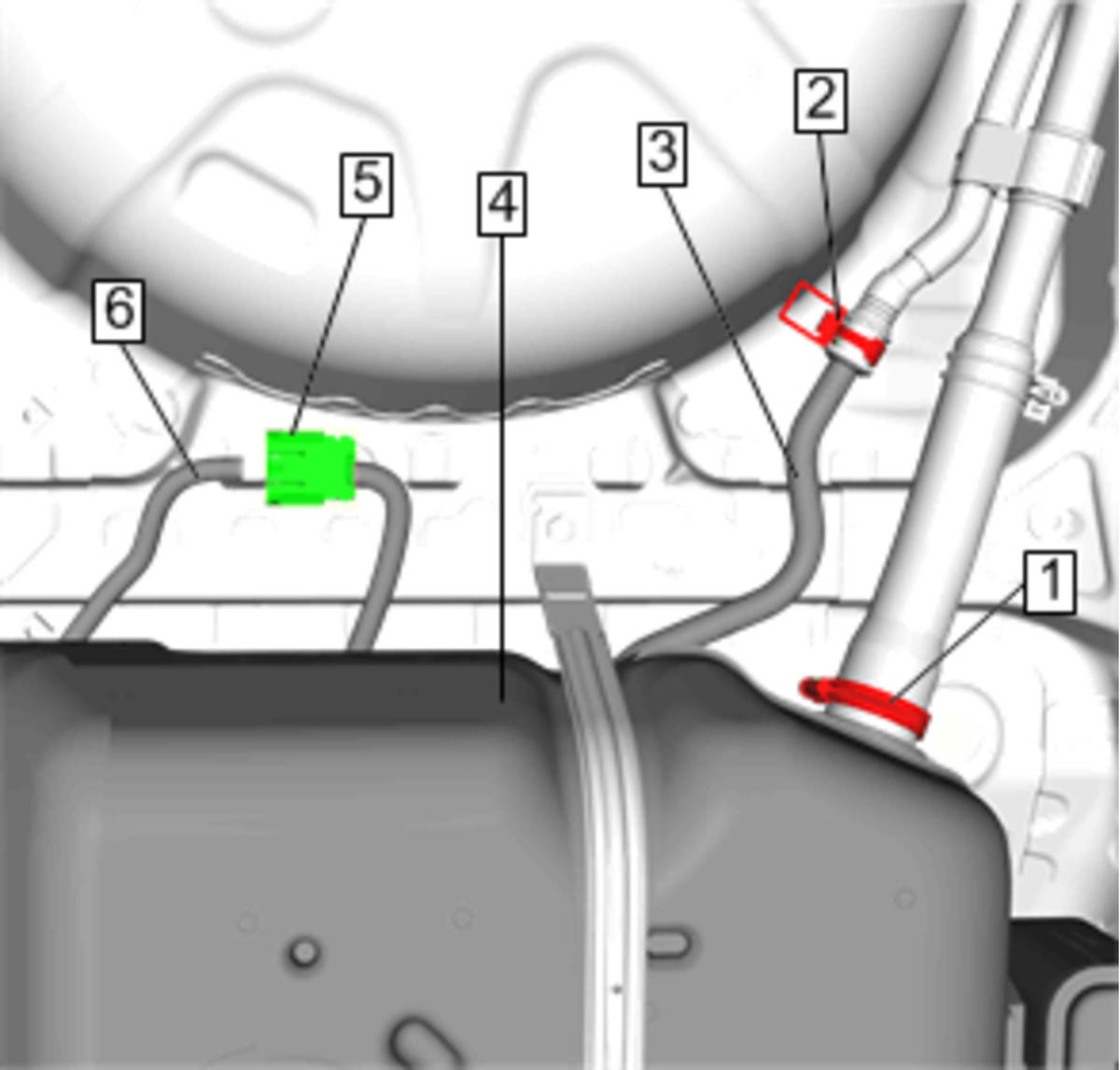

Fig 3: Fuel Tank Filler Vent Hose And Clamp
Courtesy of GENERAL MOTORS COMPANY
Install the fuel tank filler pipe to the fuel tank (4) and clamp (1).
Connect the fuel tank wiring harness connector (5).
Install the exhaust muffler. Refer to Exhaust Muffler Replacement (L5Q)Exhaust Muffler Replacement (LV7) .
Lower the vehicle. Refer to Lifting and Jacking the Vehicle .
Connect the battery. Refer to Battery Negative Cable Disconnection and Connection .
