Fuel Tank Pressure Sensor Replacement (35L (9 US Gallon) Tank)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

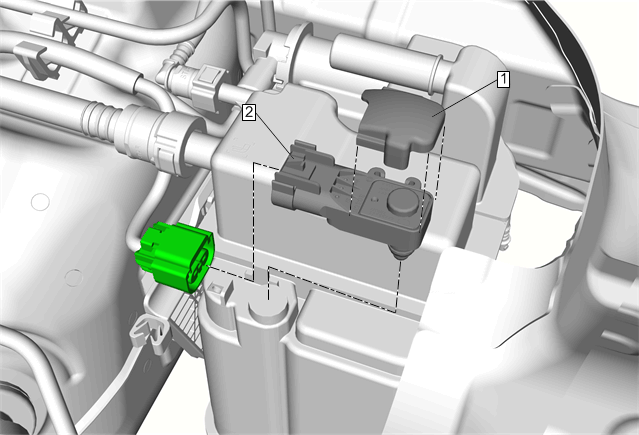

Fig 1: Fuel Tank Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Disconnect the fuel tank wiring harness cable from the fuel tank pressure sensor.
1	Fuel Tank Pressure Sensor Cover
2	Fuel Tank Pressure Sensor

Callout

Component Name

Preliminary Procedure

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Disconnect the fuel tank wiring harness cable from the fuel tank pressure sensor.

Fuel Tank Pressure Sensor Cover

Fuel Tank Pressure Sensor
