Installation Procedure
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

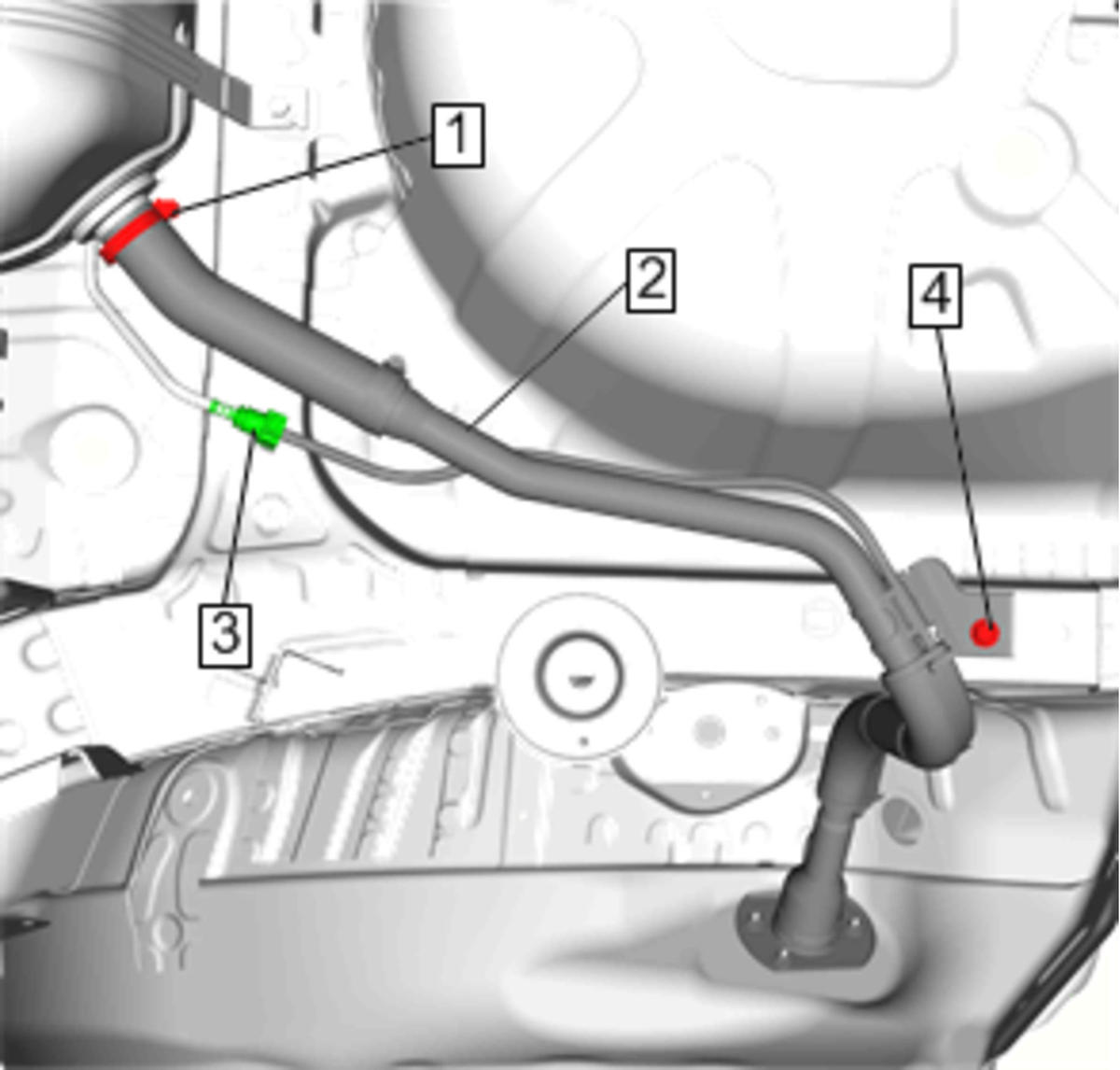

- Install the fuel tank filler pipe (2) to the vehicle.
- Tighten the fuel tank filler hose clamp (1).
- Connect the fuel feed/evaporative emission separator pipe (3). Refer to Plastic Collar Quick Connect Fitting Service .
- Install the fuel tank filler pipe bracket bolt (2). Tighten the bolt to 3 N.m (27 lb in).CAUTION: Refer to Fastener Caution .
- Install the right rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
- Lower the vehicle. Refer to Lifting and Jacking the Vehicle .
- Install the 3 fuel tank filler pipe bolts (1). Tighten the bolt to 6 N.m (53 lb in).
- Close the fuel filler door and filler cap.
