Fuel Tank Filler Hose Replacement (32L (8.5 US Gallon) Tank)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

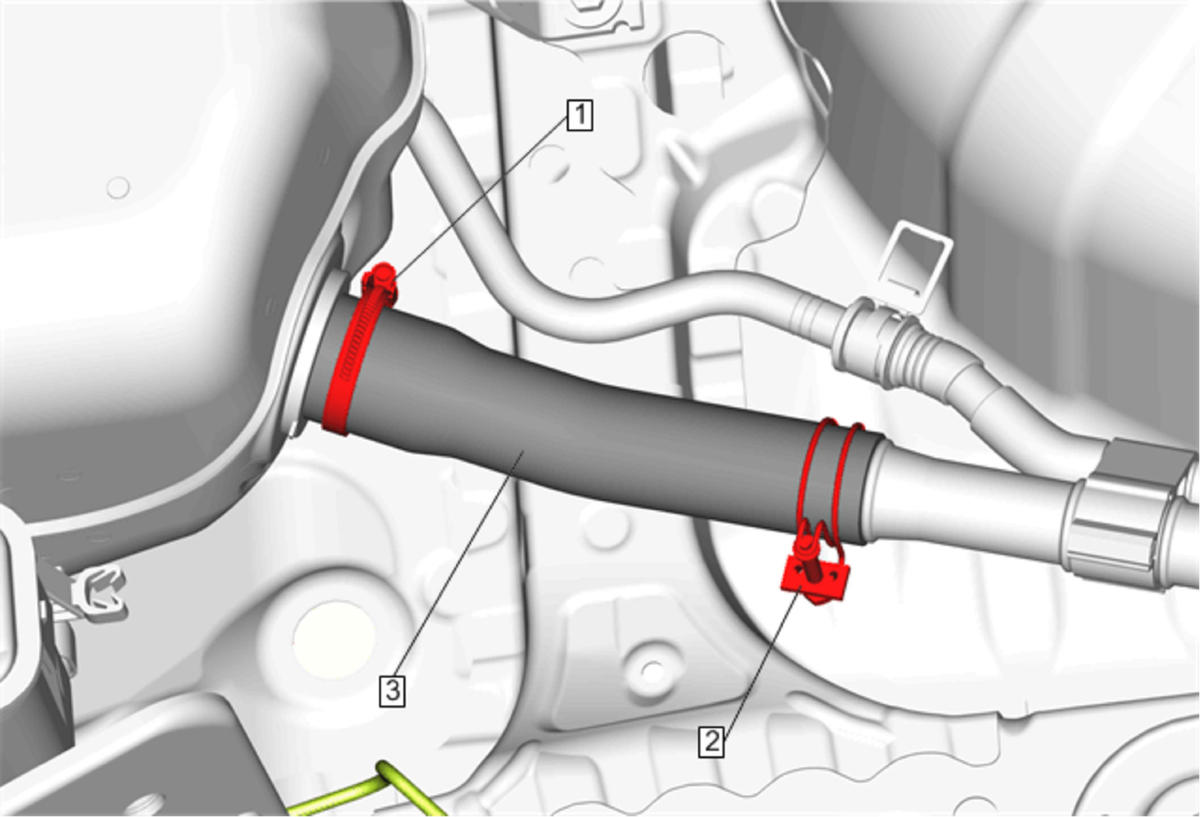

Fig 1: Fuel Tank Filler Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . Preliminary Procedures Relieve the fuel pressure. Refer to Fuel Pressure Relief . Drain the fuel tank. Refer to Fuel Tank Draining . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Fuel Tank Filler Hose Clamp from the fuel tank
2	Fuel Tank Filler Hose Clamp from the fuel tank filler pipe
3	Fuel Tank Filler Hose
