Fuel Injector Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

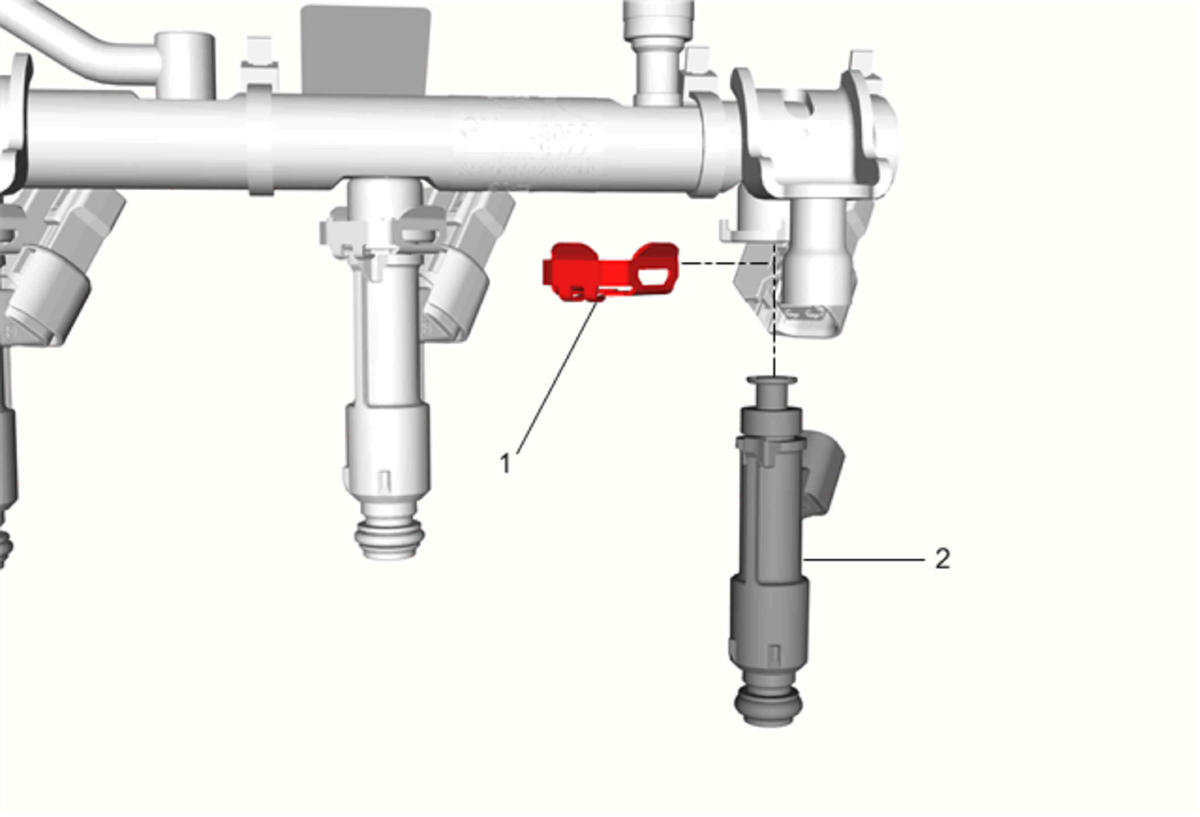

Fig 1: Fuel Injector
GM4035186Courtesy of GENERAL MOTORS COMPANY
Fuel Injector Replacement

Callout Component Name
Preliminary Procedures
Remove the fuel rail. Refer to Fuel Injection Fuel Rail Assembly Replacement (L5Q) Fuel Injection Fuel Rail Assembly Replacement (LV7) .
1 Fuel Injector Retainer Clip (Qty: 3)
Procedure
Remove the fuel injector retainer clip.
2 Fuel Injector (Qty: 3)
Procedure
Disconnect the fuel injector pulling down.
