Evaporative Emission Canister Purge Pipe Replacement (35L (9 US Gallon) Tank)
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Lower the fuel tank to the height to access to the top of evaporative emission canister. Refer to Fuel Tank Replacement (35L (9 US Gallon) Tank) . |
|

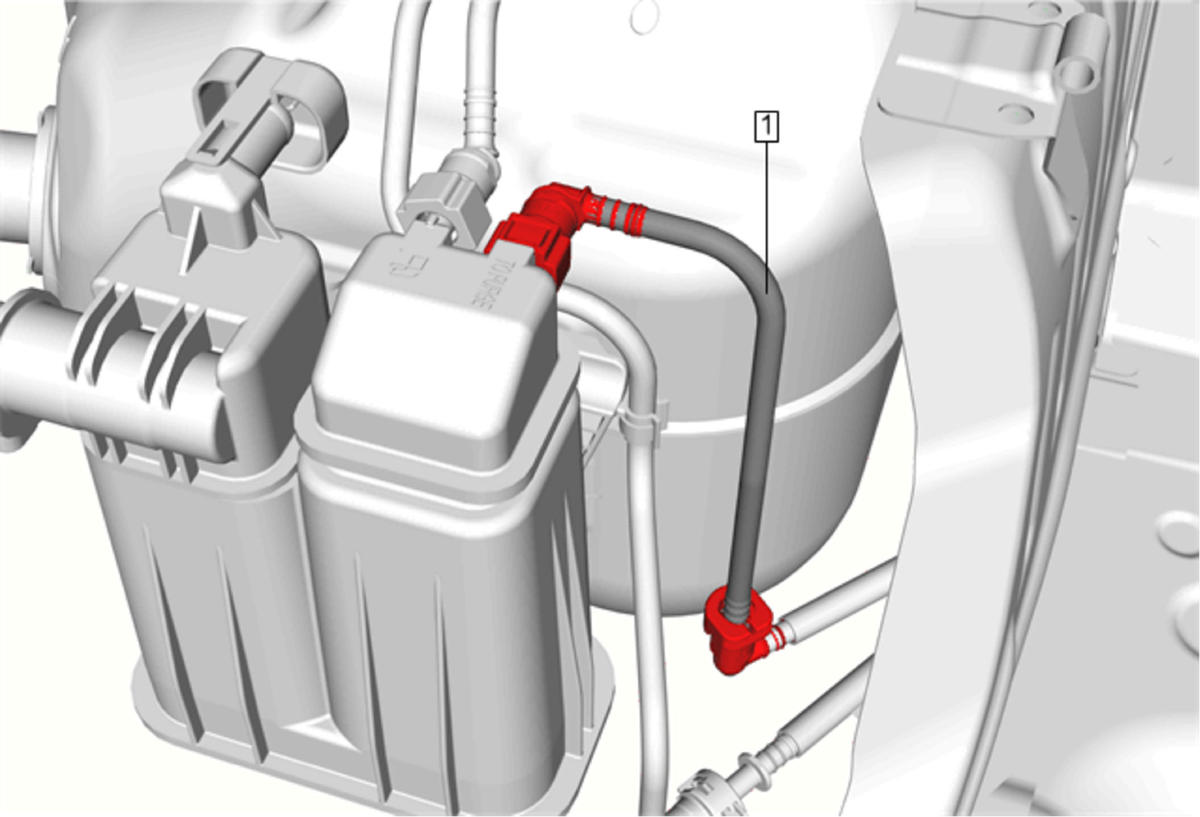

| 1 | Evaporative Emission Canister Purge Pipe Refer to Plastic Collar Quick Connect Fitting Service . |
