Evaporative Emission Canister Purge Pipe Replacement (32L (8.5 US Gallon) Tank)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

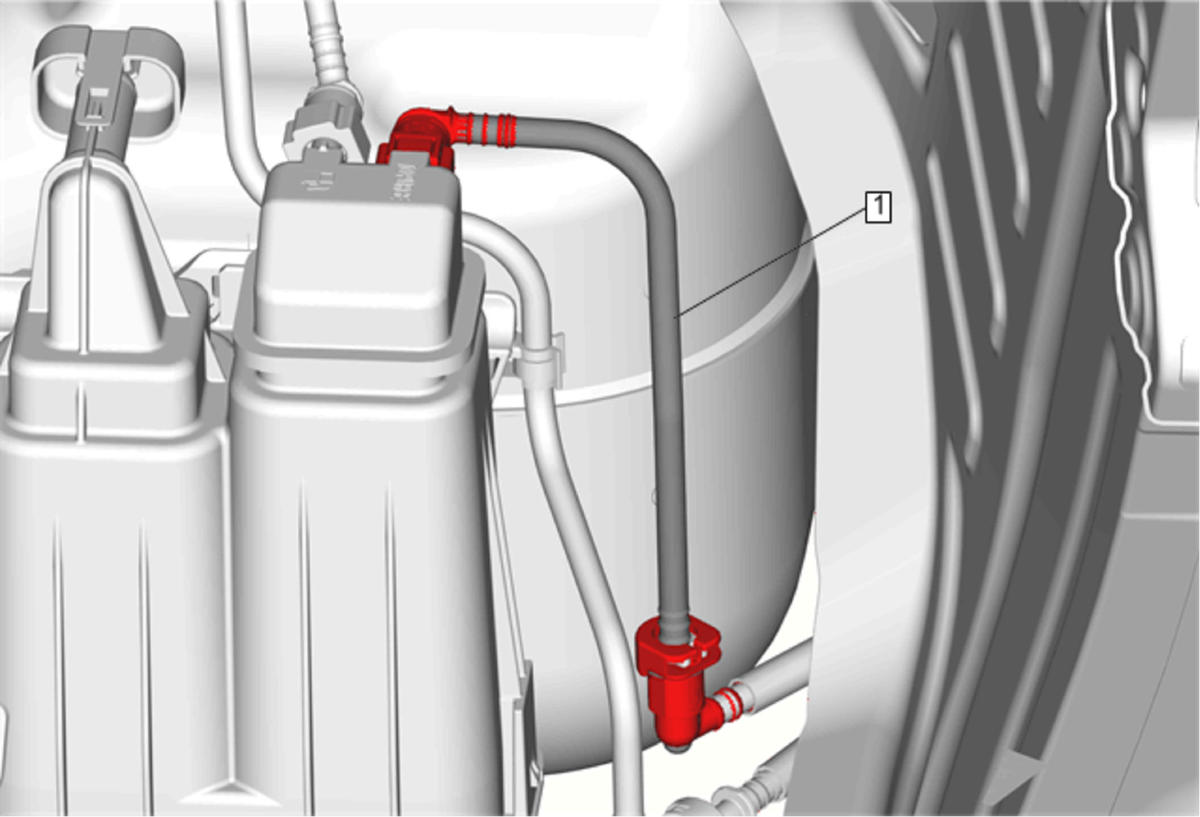

Fig 1: Evaporative Emission Canister Purge Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . CAUTION: Refer to Fuel and Evaporative Emission Hose/Pipe Connection Cleaning Caution . Preliminary Procedures Relieve the fuel pressure. Refer to Fuel Pressure Relief . Remove the exhaust muffler. Refer to Exhaust Muffler Replacement (L5Q)Exhaust Muffler Replacement (LV7) . Lower the fuel tank to the height to access to the top of evaporative emission canister. Refer to Fuel Tank Replacement (32L (8.5 US Gallon) Tank) . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Evaporative Emission Canister Purge Pipe

Callout

Component Name

WARNING: Refer to Diesel/Gasoline Vapors Warning .

CAUTION: Refer to Fuel and Evaporative Emission Hose/Pipe Connection Cleaning Caution .

Preliminary Procedures

Relieve the fuel pressure. Refer to Fuel Pressure Relief .
Remove the exhaust muffler. Refer to Exhaust Muffler Replacement (L5Q)Exhaust Muffler Replacement (LV7) .
Lower the fuel tank to the height to access to the top of evaporative emission canister. Refer to Fuel Tank Replacement (32L (8.5 US Gallon) Tank) .
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

Evaporative Emission Canister Purge Pipe
