Engine Coolant Temperature Sensor Replacement - Water Outlet (L5Q)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

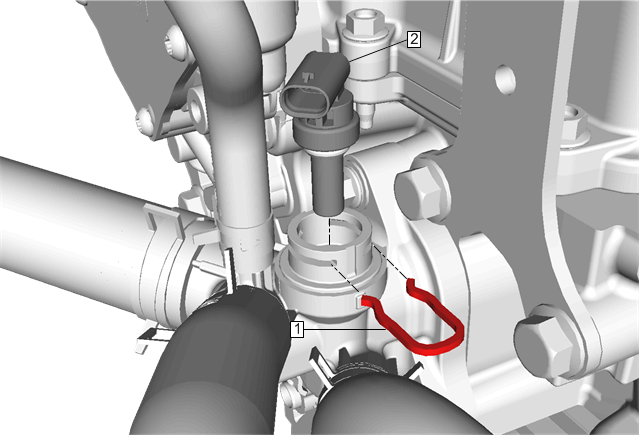

Fig 1: Engine Coolant Temperature Sensor - Water Outlet

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Drain the engine coolant. Refer to Cooling System Draining and Filling . Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Disconnect the engine coolant temperature sensor connector.
1	Engine Coolant Temperature Sensor Retainer Procedure Remove the coolant temperature sensor retainer (1).
2	Engine Coolant Temperature Sensor Procedure Remove the coolant temperature sensor (2).

Callout

Component Name

Preliminary Procedure

Drain the engine coolant. Refer to Cooling System Draining and Filling .
Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Disconnect the engine coolant temperature sensor connector.

Engine Coolant Temperature Sensor Retainer
Procedure
Remove the coolant temperature sensor retainer (1).

Engine Coolant Temperature Sensor
Procedure
Remove the coolant temperature sensor (2).
