Crankshaft Position Sensor Replacement (LV7)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

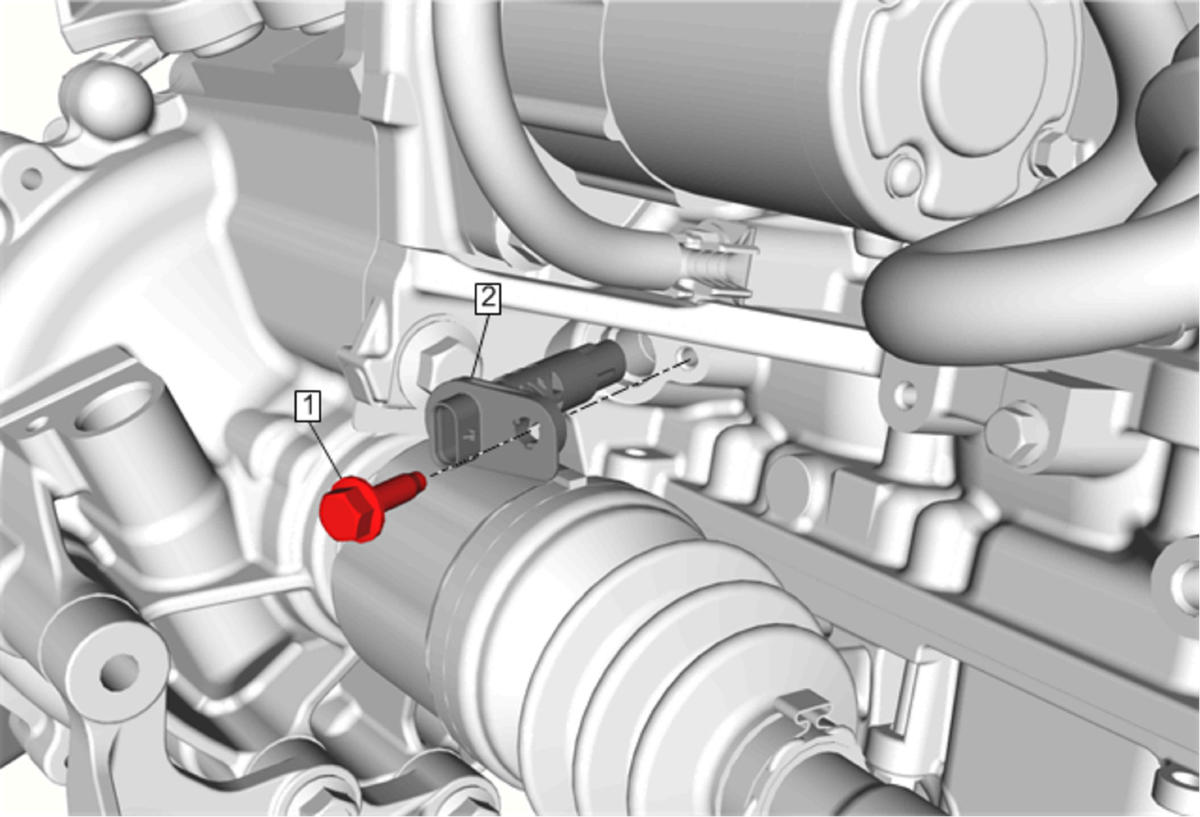

Fig 1: Crankshaft Position Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Disconnect the crankshaft position sensor connector.
1	Crankshaft Position Sensor Bolt CAUTION: Refer to Fastener Caution . Procedure Remove the crankshaft position sensor bolt. Tighten 10 N.m (89 lb in)
2	Crankshaft Position Sensor

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection
Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
Disconnect the crankshaft position sensor connector.

Crankshaft Position Sensor Bolt

CAUTION: Refer to Fastener Caution .

Procedure
Remove the crankshaft position sensor bolt.
Tighten
10 N.m (89 lb in)

Crankshaft Position Sensor
