Camshaft Position Sensor Replacement (L5Q)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

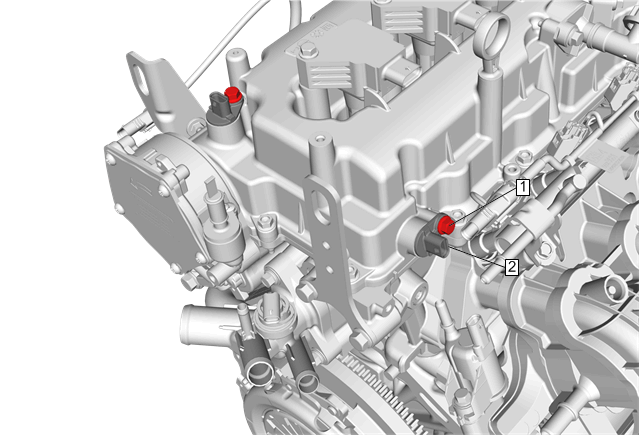

Fig 1: Camshaft Position Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection Disconnect the camshaft position sensor connectors.
1	Camshaft Position Sensor Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Remove the camshaft position sensor bolts. Tighten 10 N.m (89 lb in)
2	Camshaft Position Sensor (Qty: 2)

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection
Disconnect the camshaft position sensor connectors.

Camshaft Position Sensor Bolt (Qty: 2)

CAUTION: Refer to Fastener Caution .

Procedure
Remove the camshaft position sensor bolts.
Tighten
10 N.m (89 lb in)

Camshaft Position Sensor (Qty: 2)
