Camshaft Position Actuator Solenoid Valve Replacement (L5Q)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

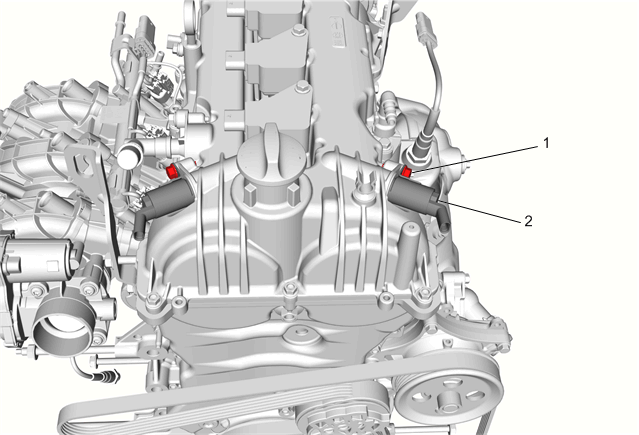

Fig 1: Camshaft Position Actuator Solenoid Valve

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Disconnect the Camshaft Position Actuator Solenoid Valve connectors.
1	Camshaft Position Actuator Solenoid Valve Bolts (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Remove the Camshaft Position Actuator Solenoid Valve bolts. Tighten 10 N.m (89 lb in)
2	Camshaft Position Actuator Solenoid Valve (Qty: 2)

Callout

Component Name

Preliminary Procedure

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Disconnect the Camshaft Position Actuator Solenoid Valve connectors.

Camshaft Position Actuator Solenoid Valve Bolts (Qty: 2)

CAUTION: Refer to Fastener Caution .

Procedure
Remove the Camshaft Position Actuator Solenoid Valve bolts.
Tighten
10 N.m (89 lb in)

Camshaft Position Actuator Solenoid Valve (Qty: 2)
