Water Pump Pulley Replacement (L5Q)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

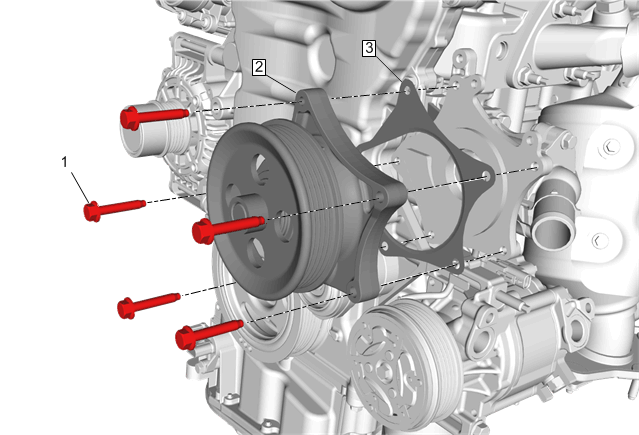

Fig 1: Water Pump Pulley

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Support and raise the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front bumper fascia opening lower cover replacement. Refer to Front Bumper Fascia Opening Lower Cover Replacement . Remove the drive belt tensioner. Refer to Drive Belt Tensioner Replacement (L5Q) .
1	Water Pump Pulley Bolt (Qty: 5) CAUTION: Refer to Fastener Caution . Procedure Remove the water pump pulley bolts. Tighten 10 N.m (89 lb in)
2	Water Pump Pulley
3	Water Pump Pulley Gasket NOTE: Install a new gasket.
