Radiator Surge Tank Outlet Hose Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

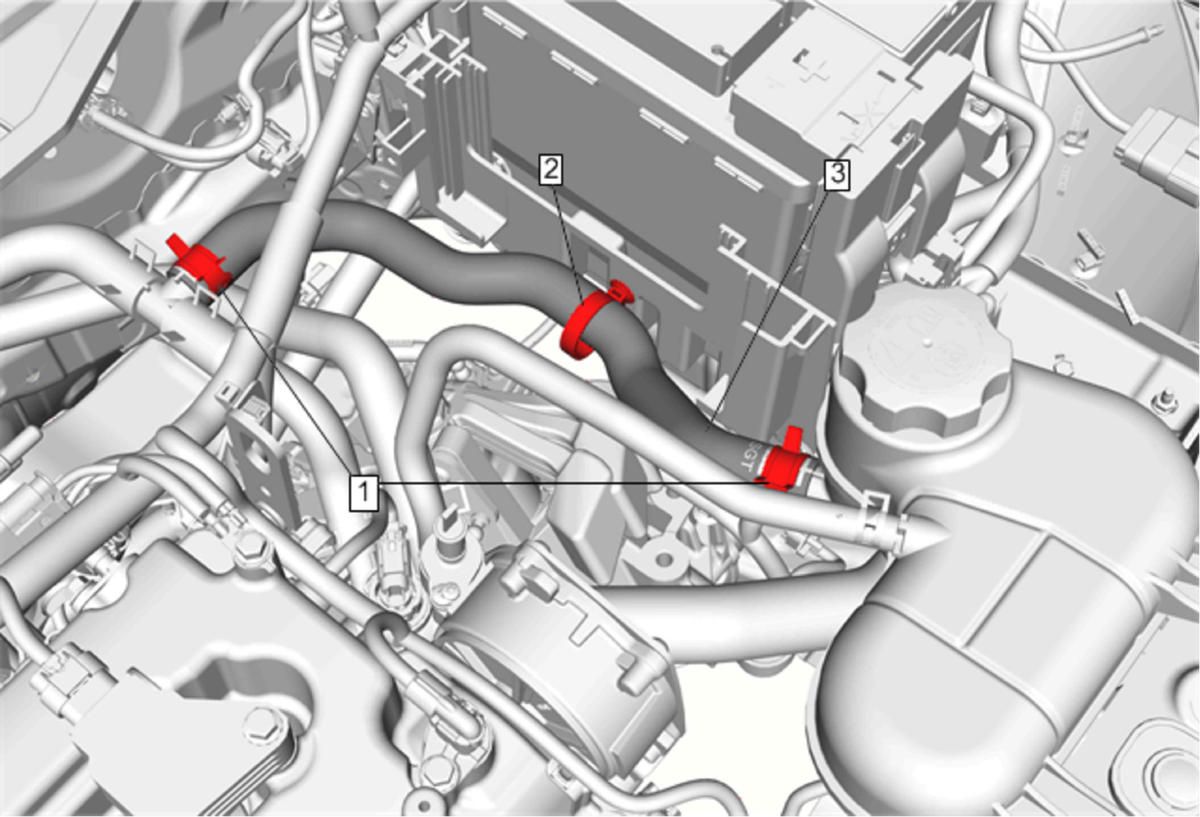

Fig 1: Radiator Surge Tank Outlet Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Drain the coolant. Refer to Cooling System Draining and Filling . Disconnect the ECM electrical connectors.
1	Radiator Surge Tank Outlet Hose Clamp (Qty: 2) Procedure Loosen the radiator surge tank outlet hose clamp using hose clamp pliers.
2	Radiator Surge Tank Outlet Hose Clip Procedure Unclip radiator surge tank outlet hose clip from battery tray.
3	Radiator Surge Tank Outlet Hose
