Front Interior Overhead Lamps and Cargo Lamp

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

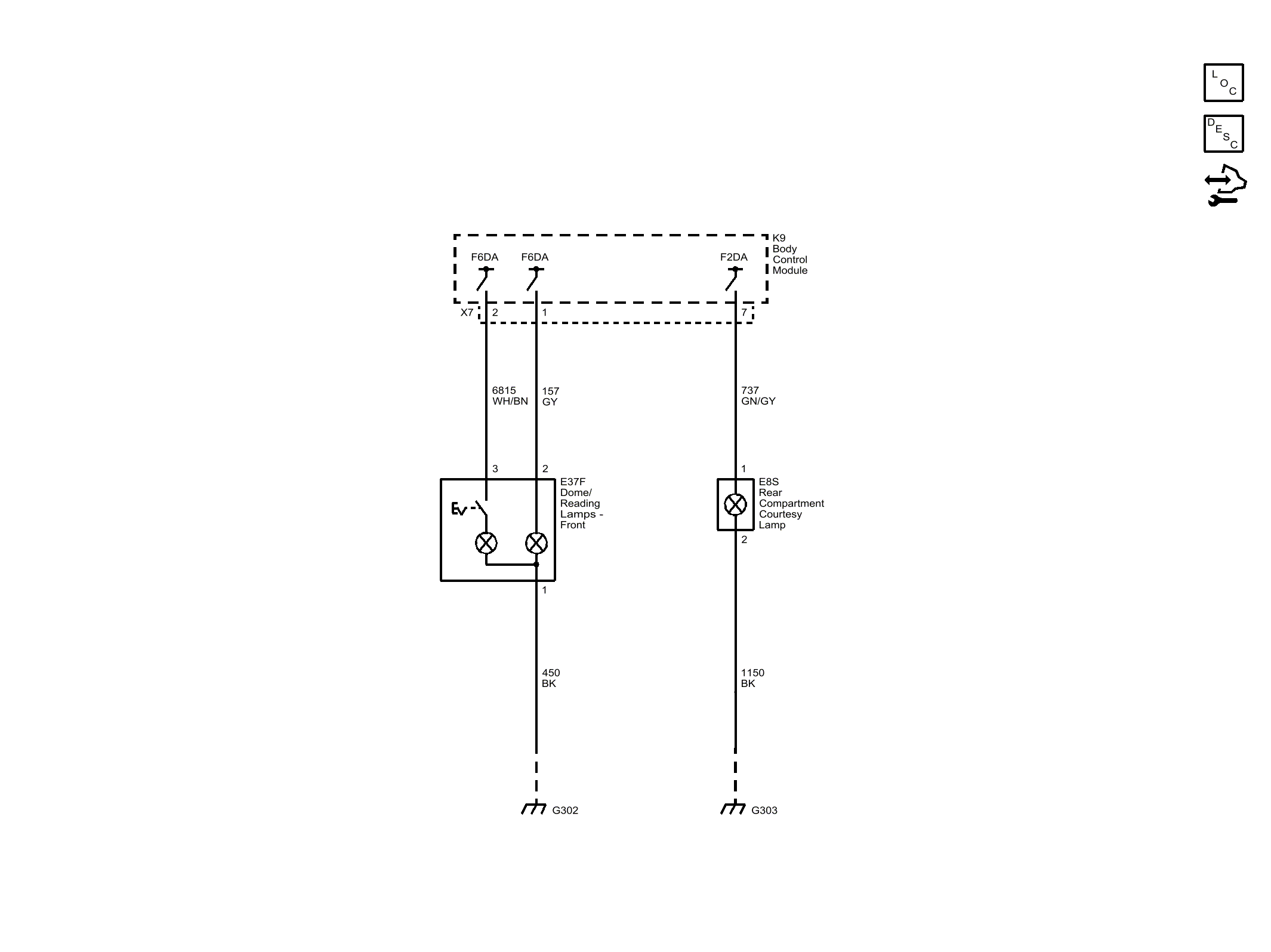

Fig 1: Front Interior Overhead Lamps and Cargo Lamp
GM4322481Courtesy of GENERAL MOTORS COMPANY
