Instrument Panel, Steering Wheel Switches and Accessory Power Receptacle (1 of 2)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

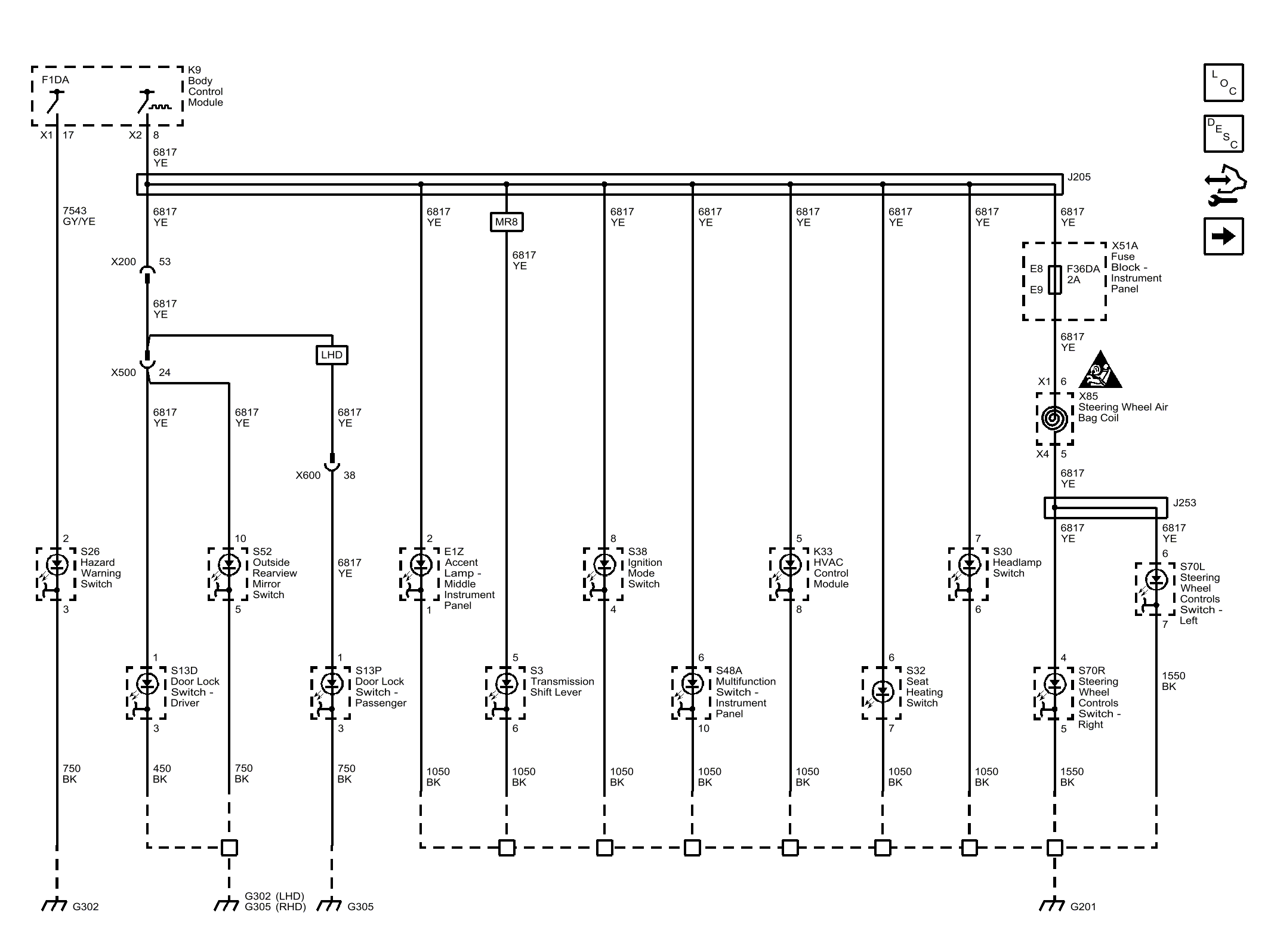

Fig 1: Instrument Panel, Steering Wheel Switches and Accessory Power Receptacle (1 of 2)
GM4322482Courtesy of GENERAL MOTORS COMPANY
