Low, High Beams and Daytime Running Lights (T7E)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

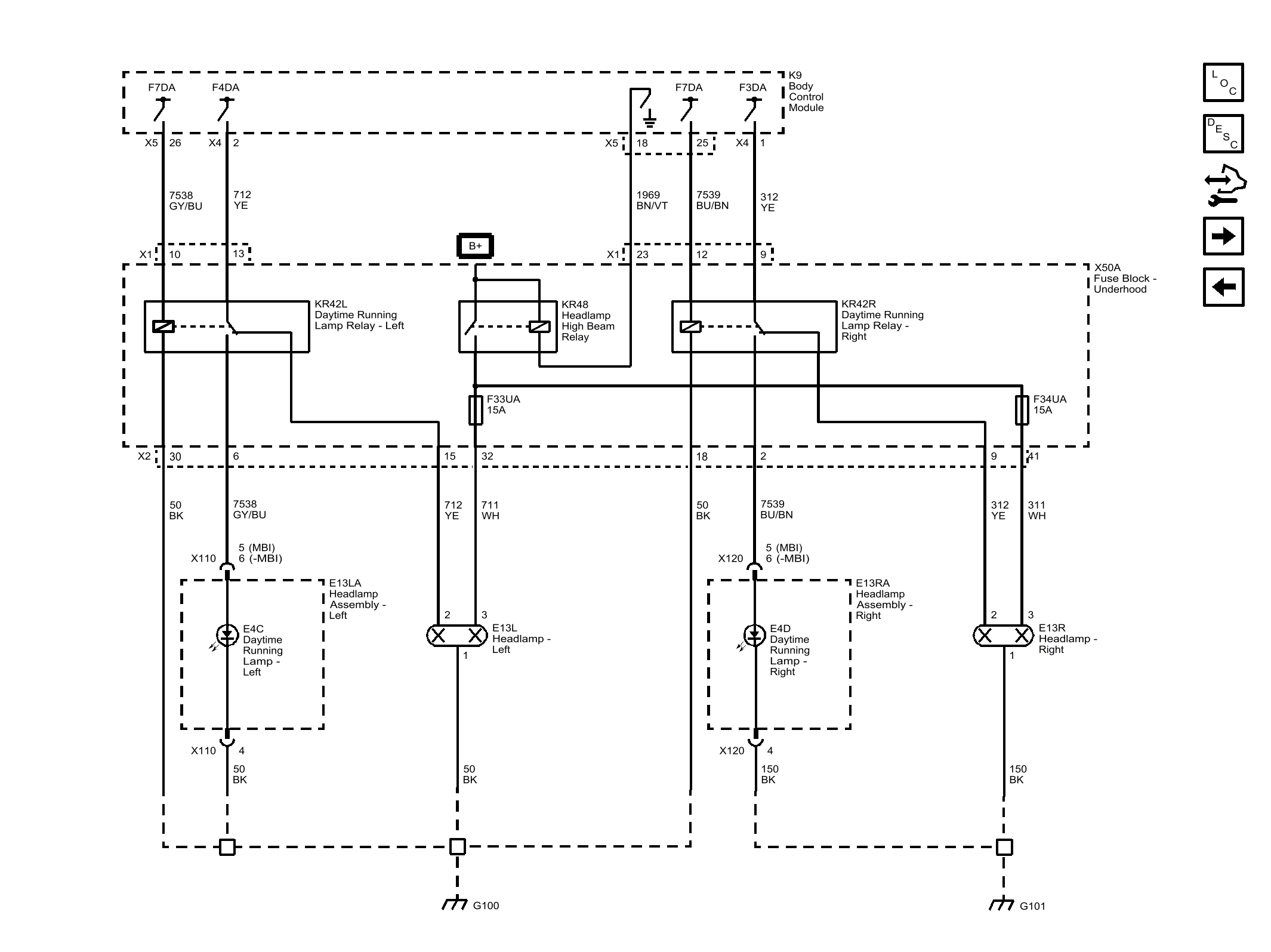

Fig 1: Low, High Beams and Daytime Running Lights (T7E)
GM4322473Courtesy of GENERAL MOTORS COMPANY
