Headlight Leveling (TR6)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

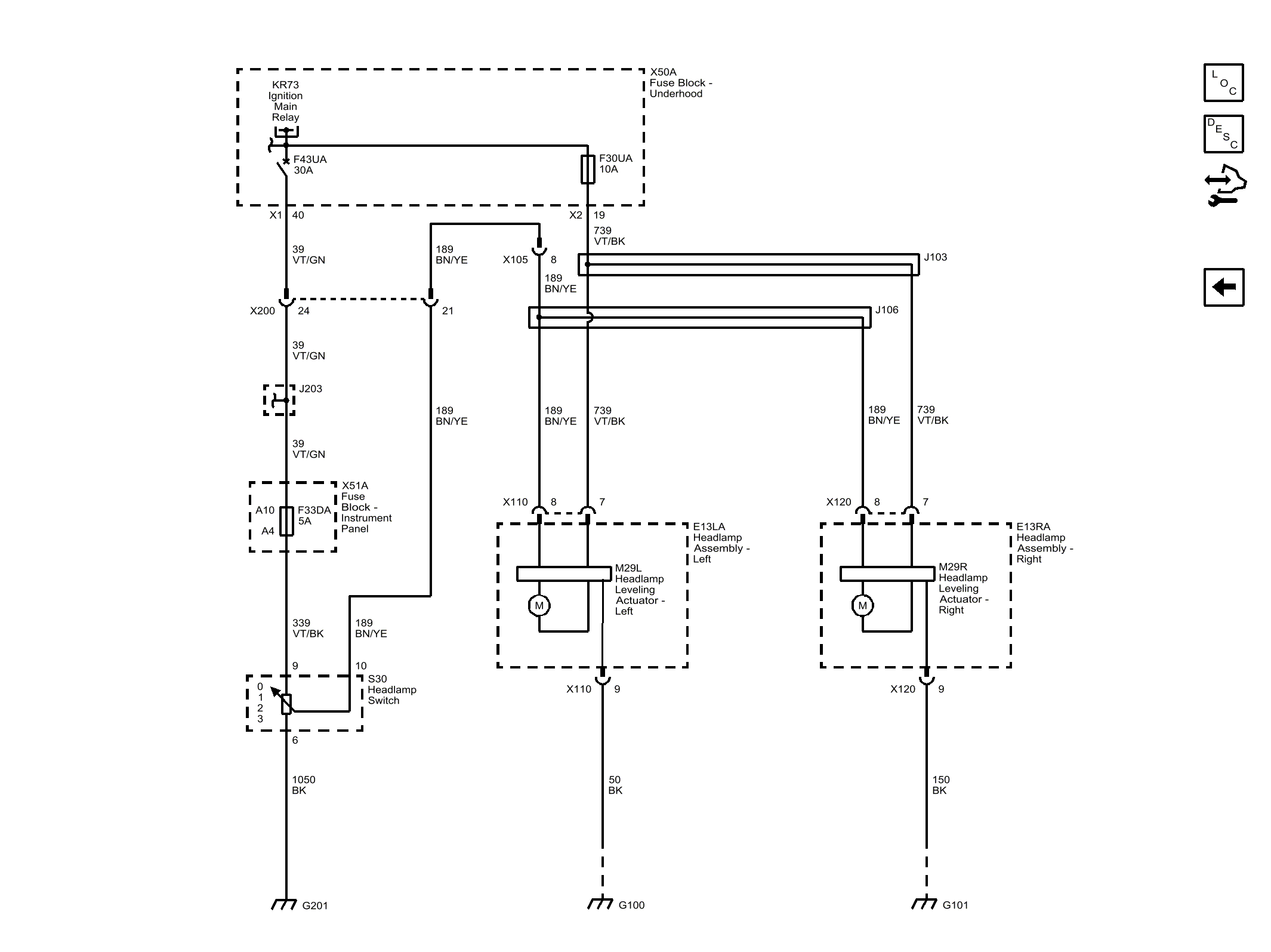

Fig 1: Headlight Leveling (TR6)
GM4322474Courtesy of GENERAL MOTORS COMPANY
