Park, Turn, Hazard, Backup and Brake Lamps Controls

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

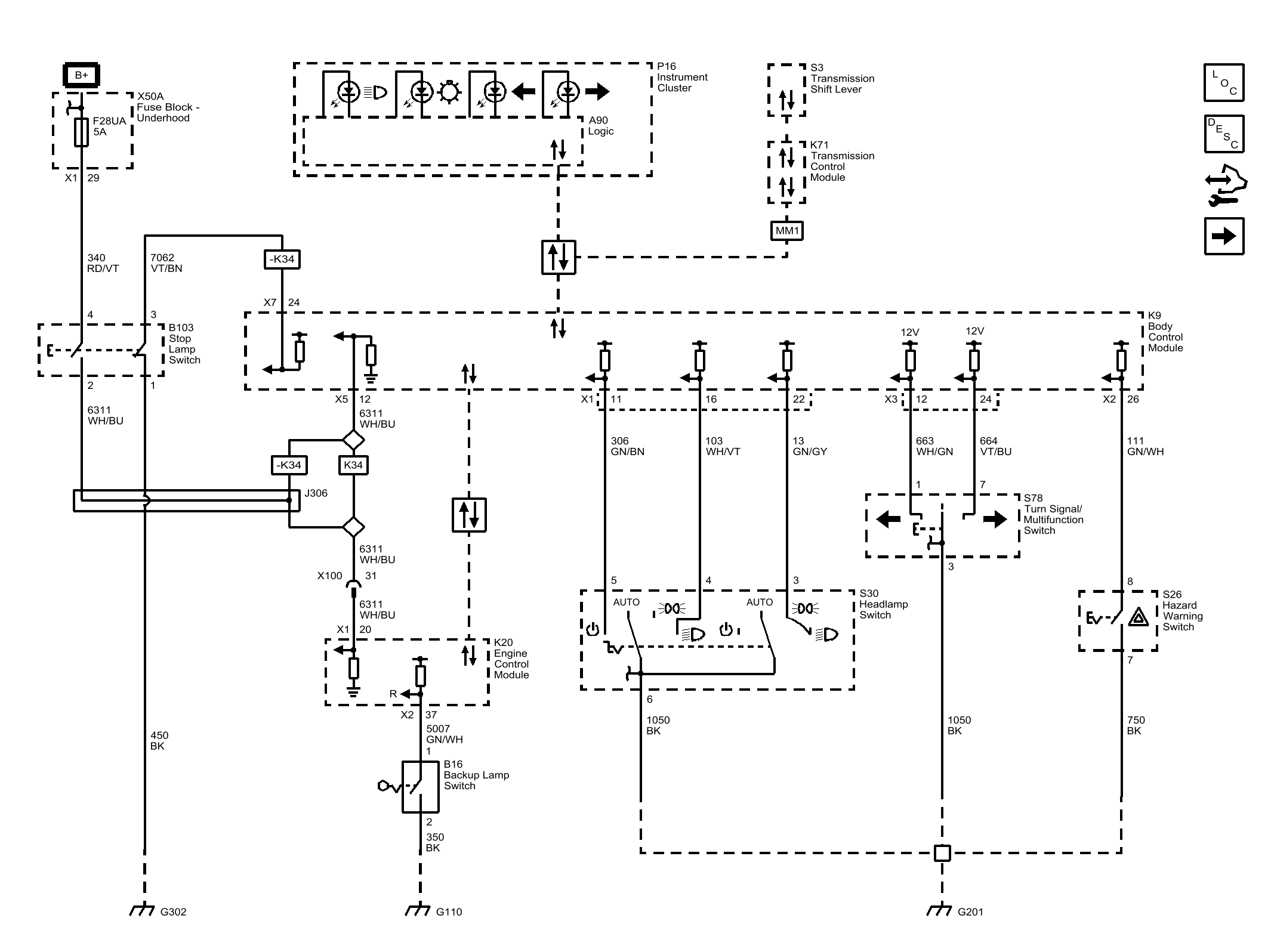

Fig 1: Park, Turn, Hazard, Backup and Brake Lamps Controls
GM4322476Courtesy of GENERAL MOTORS COMPANY
