Tail Lamp Bulb Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

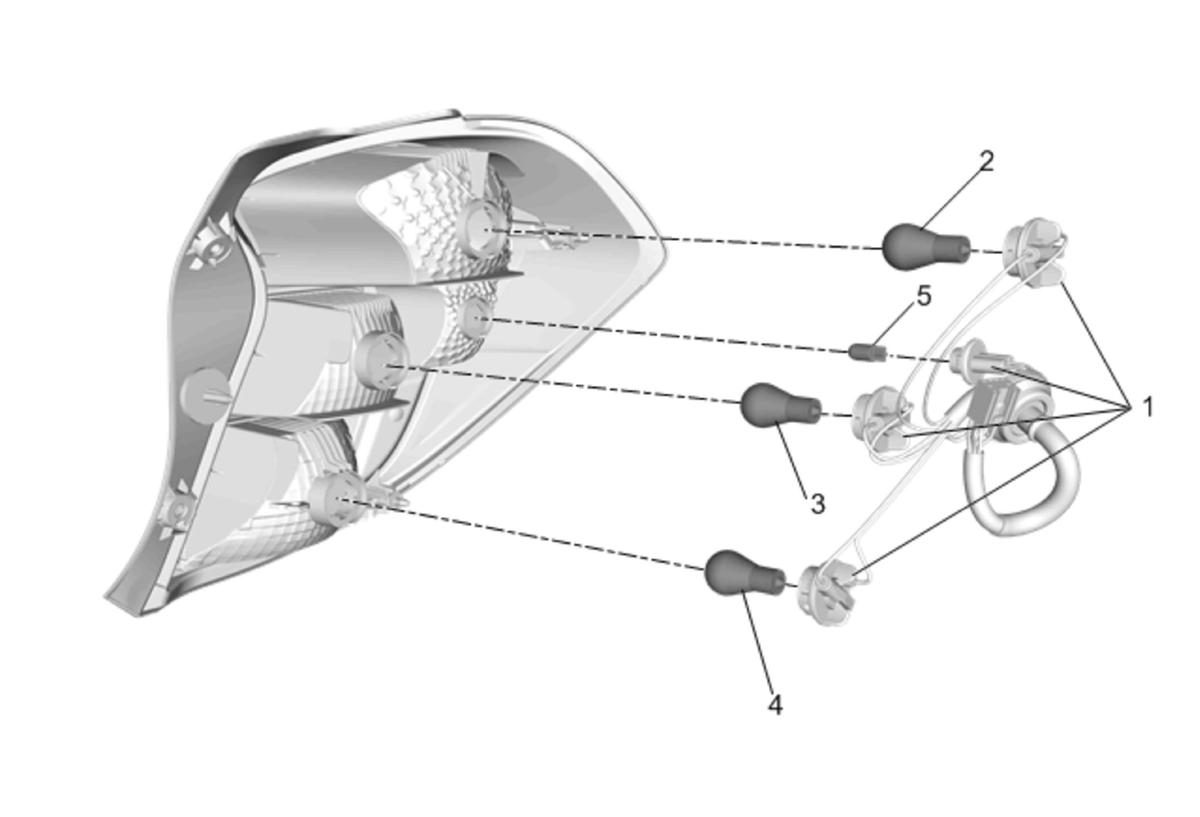

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the tail lamp assembly. Refer to Tail Lamp Replacement . |
|
| 1 | Tail Lamp Bulb Harness Socket
WARNING:
Refer to Halogen Bulb Warning .
NOTE:
Rotate the bulb socket from the tail lamp housing. |
| 2 | Stop and Tail Lamp Bulb Procedure Rotate the bulb from the lamp harness socket. |
| 3 | Turn Bulb Procedure Rotate the bulb from the lamp harness socket. |
| 4 | Rear Fog / Backup Bulb Procedure Rotate the bulb from the lamp harness socket. |
| 5 | Tail Bulb Procedure Rotate the bulb from the lamp harness socket. |
